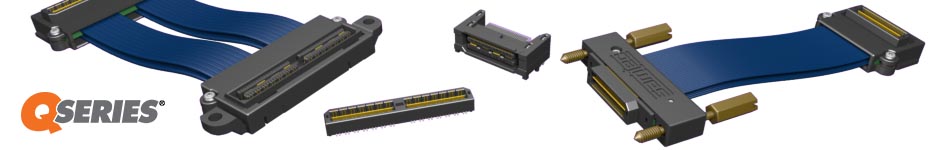

Q Series® High-Speed Cable Assemblies
These high-speed cable assemblies feature an integral ground/power plane, micro coax and micro twinax cable.
DOWNLOADS & RESOURCES
- 50 Ohm, 38 AWG Micro Coax Cable Data Sheet
- 100 Ohm, 30 AWG Micro Twinax Cable Data Sheet
- Twinax Flyover Application Design Guide
- High-Speed Cable Application Solutions Guide
- High Speed Cable Design Guide
- Signal Integrity Performance Data
- Industry Standards and Platforms
- Signal Integrity FAQs
- Signal Integrity Handbook
HQCD
0.50 mm Q Strip® Coax Cable Assembly
Features
- 0.50 mm (.0197") pitch
- 50 ohm single-ended signal routing
- 38 AWG coax cable
- Double row system up to 180 pins
- Optional screw mounts and retention pins for the most rugged requirements
HQDP
0.50 mm Q Pairs® Twinax Cable Assemblies
Features
- 0.50 mm (.0197") pitch
- 100 ohm differential signal routing
- 30 AWG twinax cable
- Double row system up to 120 pins
- Optional screw mounts for the most rugged requirements
EQCD
0.80 mm Q Strip® Coax Cable Assembly
Features
- 0.80 mm (.0315") pitch
- 50 ohm single-ended signal routing
- 38 AWG coax cable
- Double row system up to 120 pins
- Optional screw mounts and retention pins for the most rugged requirements
EQDP
0.80 mm Q Pairs® Twinax Cable Assembly
Features
- 0.80 mm (.0315") pitch
- 100 ohm differential signal routing
- 30 AWG twinax cable
- Double row system up to 112 pins
- Optional screw mounts for the most rugged requirements
QTH
0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip
Features
- 0.50 mm (.0197") pitch
- Up to 300 positions
- 5 mm - 30 mm stack heights
- 25 Gbps performance
- Extended Life Product™ (E.L.P.™)
QSH
0.50 mm Q Strip® High-Speed Ground Plane Socket Strip
Features
- 0.50 mm (.0197") pitch
- Up to 300 positions
- 5 mm - 30 mm stack heights
- 25 Gbps performance
- Extended Life Product™ (E.L.P.™)
QTH-DP
0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair
Features
- 0.50 mm (.0197") pitch
- Up to 9.5 GHz / 19 Gbps
- Up to 80 differential pairs
- Low profile 5 mm stack height
QSH-DP
0.50 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair
Features
- Low profile 5 mm stack height
- Up to 80 differential pairs
- Up to 9.5 GHz / 19 Gbps
- 0.50 mm (.0197") pitch
QTE
Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch
Features
- 0.80 mm (.0315") pitch
- Up to 200 positions
- 5 mm - 30 mm stack heights
- Extended Life Product™ (E.L.P.™)
- Samtec 28+ Gbps Solution
QSE
0.80 mm Q Strip® High-Speed Ground Plane Socket Strip
Features
- 0.80 mm (.0315") pitch
- Up to 200 positions
- 5 mm - 30 mm stack heights
- Extended Life Product™ (E.L.P.™)
- Samtec 28+ Gbps Solution
QTE-DP
0.80 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair
Features
- 0.80 mm (.0315") pitch
- Up to 8.5 GHz / 17 Gbps
- Up to 56 differential pairs
- Low profile 5 mm stack height
QSE-DP
0.80 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair
Features
- 0.80 mm (.0315") pitch
- Up to 8.5 GHz / 17 Gbps
- Up to 56 differential pairs
- Low profile 5 mm stack height
6QCD
0.635 mm High-Speed Ribbon Coax Cable Assembly
Features
- 0.635 mm (.025") pitch
- 50 ohm single-ended signal routing
- Increased insertion depth for rugged applications
- Optional rugged Screw Downs
6QDP
0.635 mm Q2™ High-Speed Twinax Cable Assembly
Features
- 0.635 mm (.025") pitch
- 100 ohm differential pair signal routing
- Increased insertion depth for rugged applications
- Optional rugged Screw Downs
6QDPS
0.635 mm Q2™ Shielded High-Speed Twinax Cable Assembly
Features
- 0.635 mm (.025") pitch
- 100 ohm differential pair signal routing
- Increased insertion depth for rugged applications
- Optional rugged Screw Downs
- Shielded for superior EMI performance
