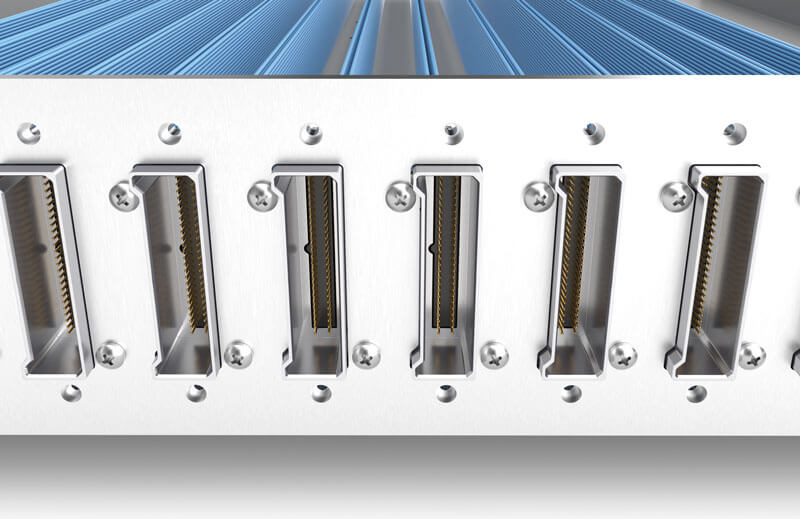

Extreme Density/Small Form Factor
- Micro 1.00 mm pitch in double row space saving design
- Extreme density with up to 1,450 total I/Os in a 1RU panel (29 cables at 50 total I/Os each)
URSA® I/O Ultra Rugged Power Cable System
URSA® I/O Ultra Rugged Power Cable System

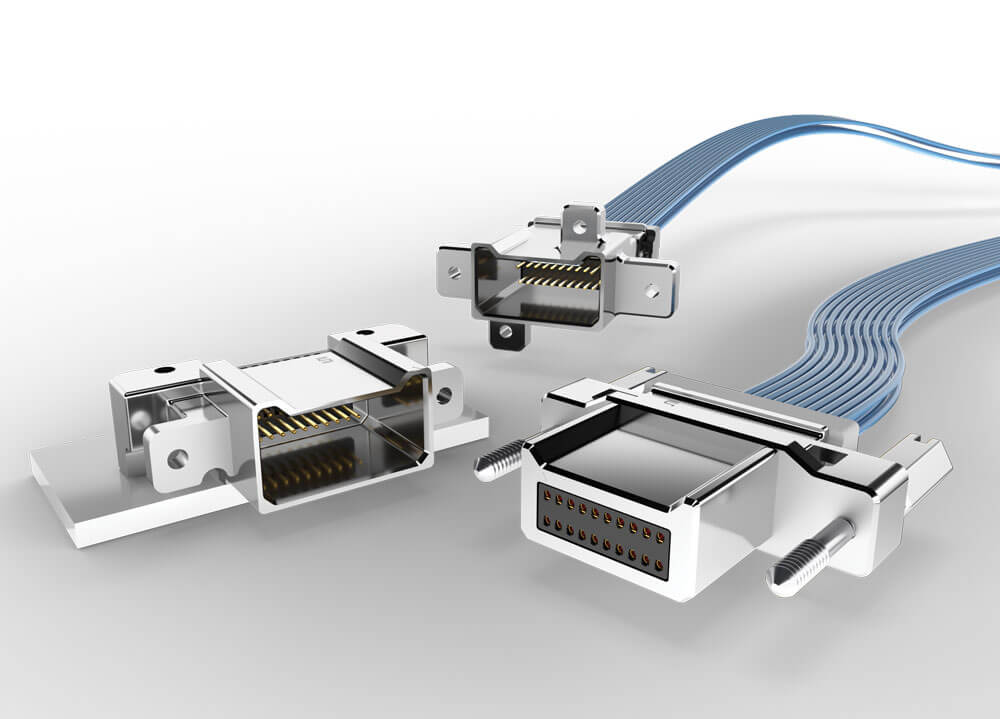

Family Overview
Samtec’s URSA™ I/O cable-to-cable and cable-to-board solutions achieve four points of contact for a reliable connection in a small form factor, which allows for extreme density on the panel. Designed for ultra rugged applications, EMI shielding helps to limit signal degradation and optimize performance.
FEATURES

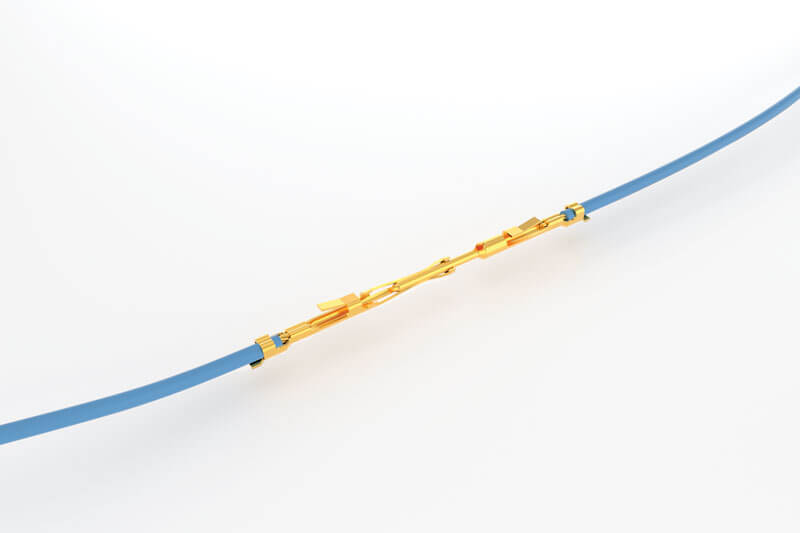

High-Reliability
- Four points of contact for a reliable connection
- Hyperboloid-type contact for extreme high mating cycles
Ultra Rugged
- EMI shielding to limit signal degradation and optimize performance
- Captive panel screws
- Strain relief
DOWNLOADS & RESOURCES
Literature

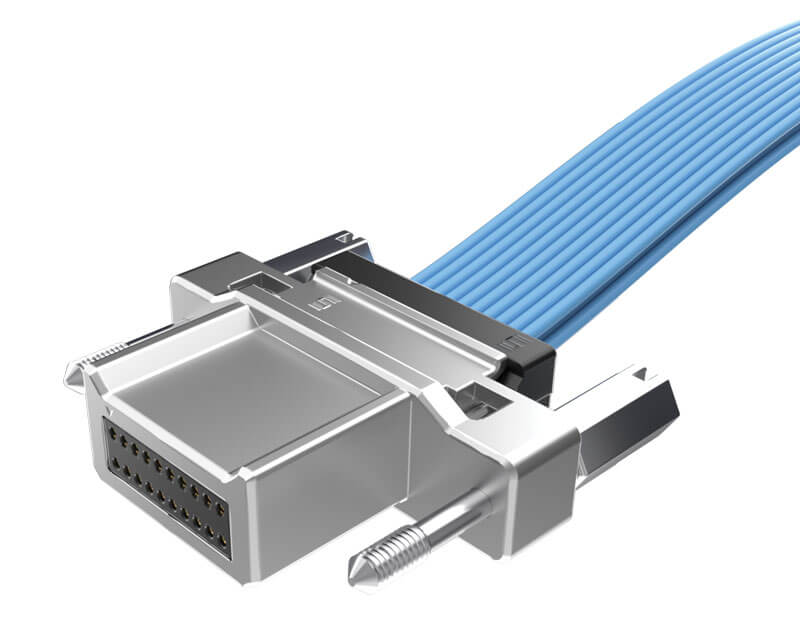

B1SDT
URSA™ I/O Ultra Rugged Socket Cable Assembly, Teflon™ Fluoropolymer Wire
Features
- Four points of contact for an extremely reliable connection
- Hyperboloid-type contact for extreme high mating cycles
- Micro 1.00 mm (.0394") pitch
- Double row design, up to 40 positions per row
- 28 or 30 AWG Teflon™ fluoropolymer wire
- Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Samtec
P1PDT
URSA™ I/O Ultra Rugged Panel Mount Terminal Cable Assembly, Teflon™ Fluoropolymer Wire
Features
- Four points of contact for an extremely reliable connection
- Hyperboloid-type contact for extreme high mating cycles
- Micro 1.00 mm (.0394") pitch
- Double row design, up to 40 positions per row
- 28 or 30 AWG Teflon™ fluoropolymer wire
- End 2 options
- Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Samtec
P1M
URSA™ I/O Ultra Rugged Board Mount I/O Connector
Features
- Through-hole or surface mount
- Double row design, up to 40 positions per row
- Micro 1.00 mm (.0394") pitch
- Hot swap option available
B1SDR
URSA® I/O Cable Holder for Socket Housing
Features
- 10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
- Required for use with IBT1 socket housing
P1PDR
URSA® I/O Cable Holder for Terminal Housing
Features
- 10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
- Required for use with IPP1 terminal housing
B1SD
IN DEVELOPMENT: URSA™ I/O Ultra Rugged Socket Cable Assembly
Features
- Four points of contact for an extremely reliable connection
- Hyperboloid-type contact for extreme high mating cycles
- Micro 1.00 mm (.0394") pitch
- Double row design, up to 40 positions per row
- 28 or 30 AWG PVC wire with color-coded option available
P1PD
IN DEVELOPMENT: URSA™ I/O Ultra Rugged Panel Mount Terminal Cable Assembly
Features
- Four points of contact for an extremely reliable connection
- Hyperboloid-type contact for extreme high mating cycles
- Micro 1.00 mm (.0394") pitch
- Double row design, up to 40 positions per row
- 28 or 30 AWG PVC wire with color-coded option available
- End 2 options
