HIGH-PERFORMANCE & RUGGED SOLUTIONS FOR

MEDICAL APPLICATIONS

Samtec delivers Sudden Service® solutions for the medical industry to meet the stringent quality, production and compliance requirements of our customers. The combined efforts of Samtec's on-going Severe Environment Testing initiative with our extremely flexible high-speed interconnects provides a quick turn and cost-effective solution for medical applications that require reliable performance and durability.

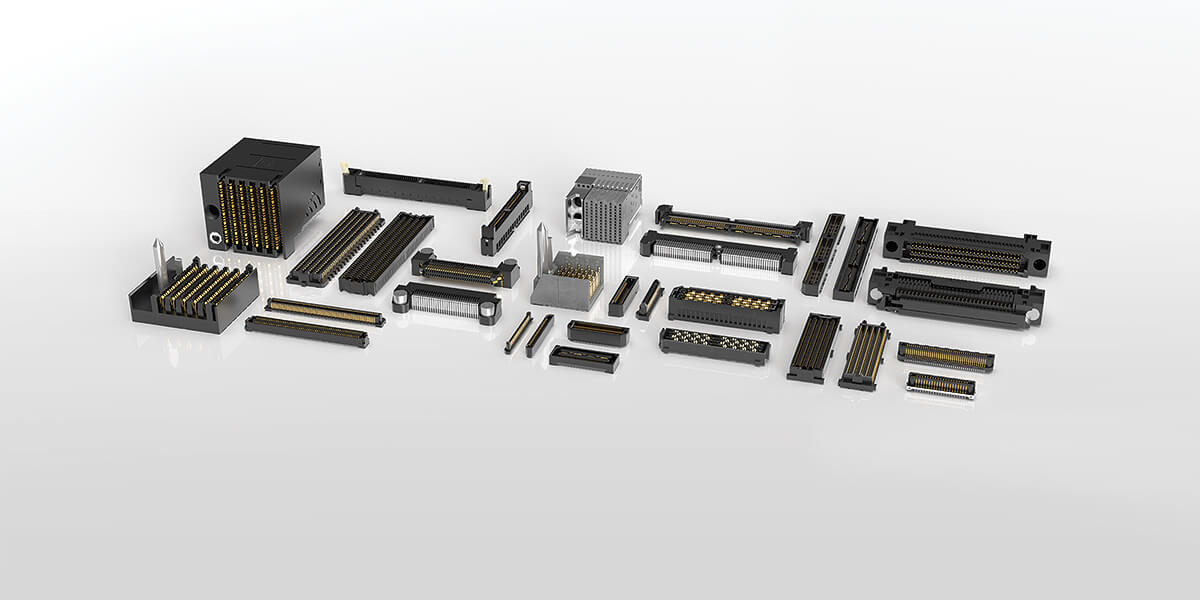

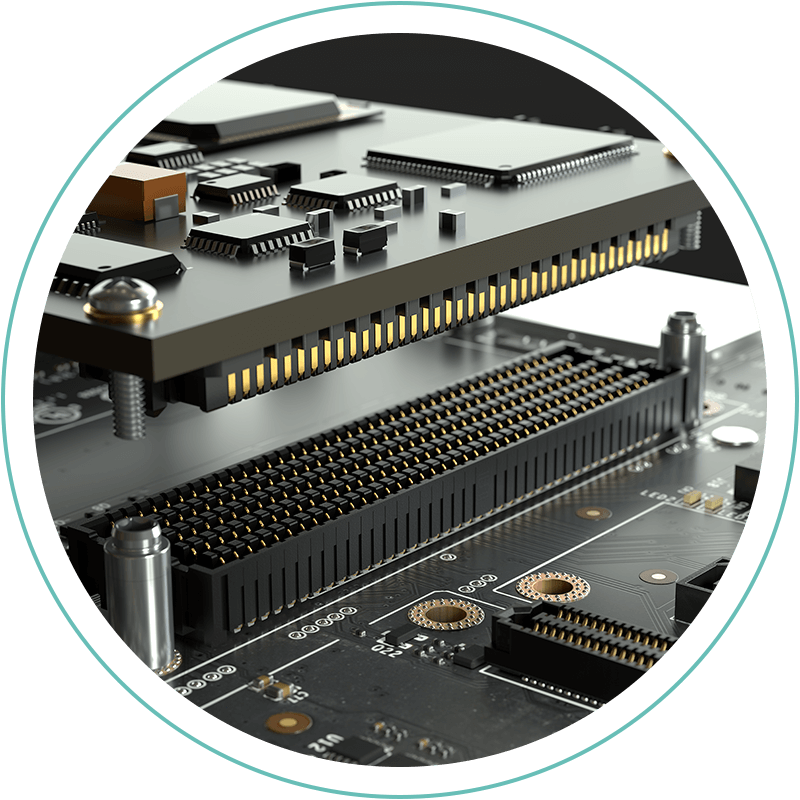

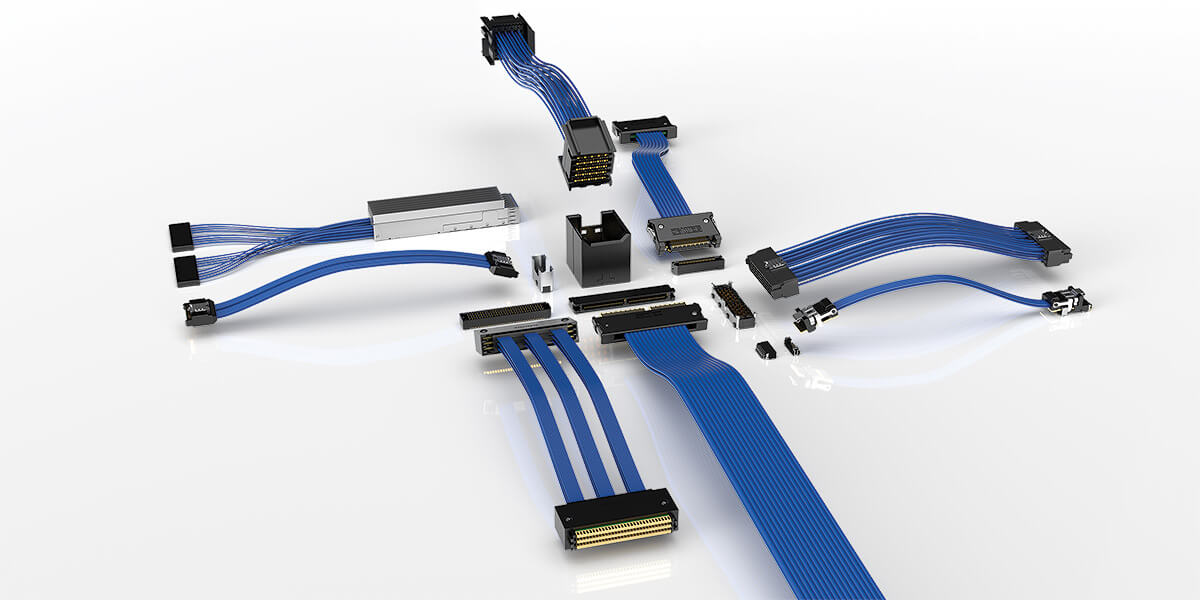

HIGH-PERFORMANCE

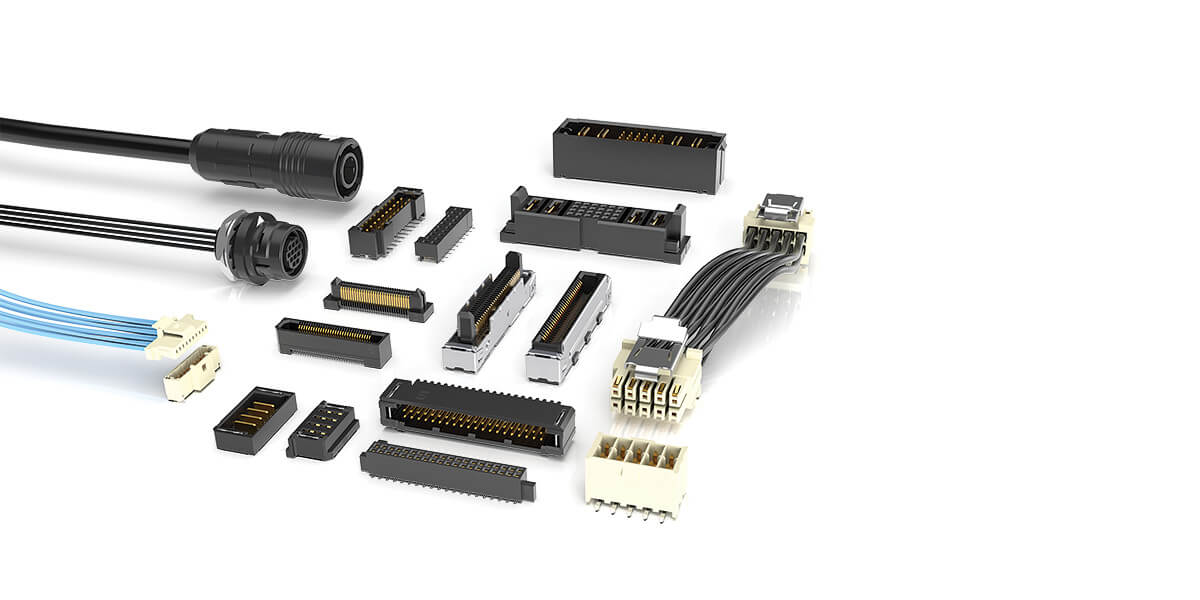

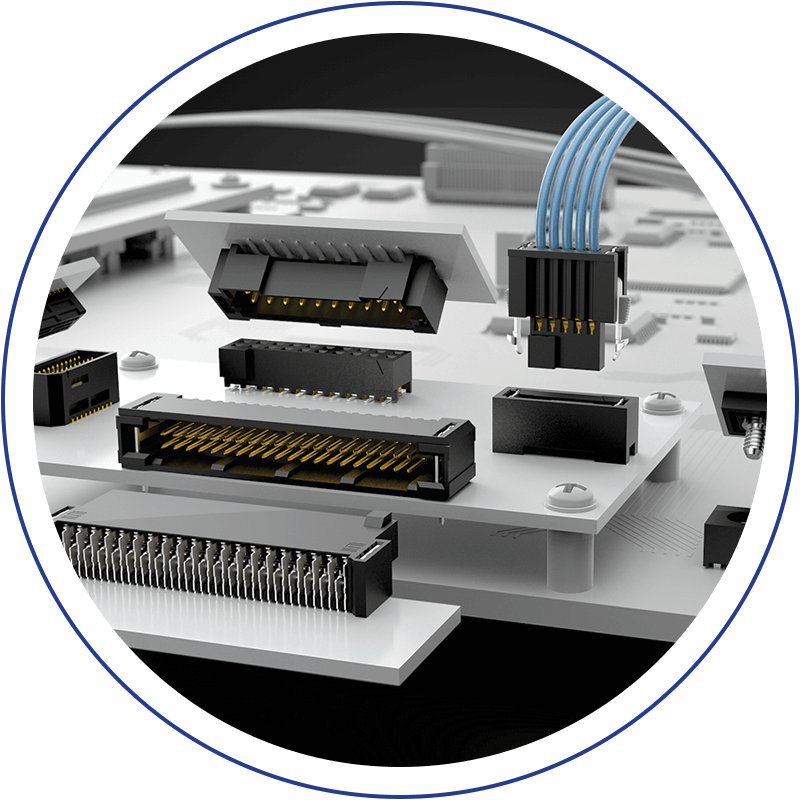

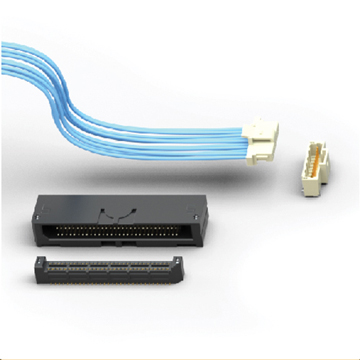

MICRO RUGGED
SOLUTIONS

TECHNICAL SUPPORT

APPLICATIONS

Samtec offers a wide variety of solutions for any type of medical application.

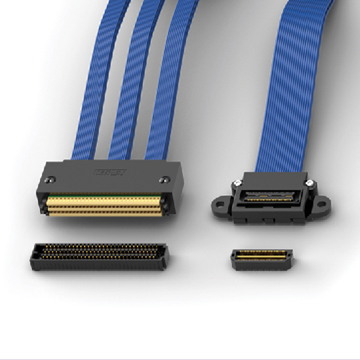

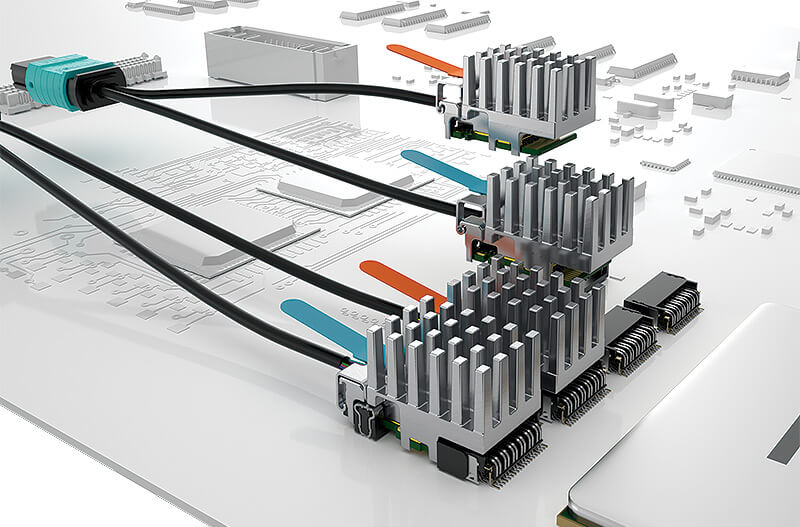

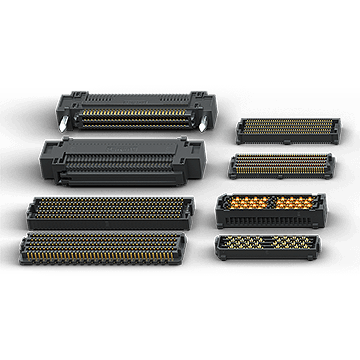

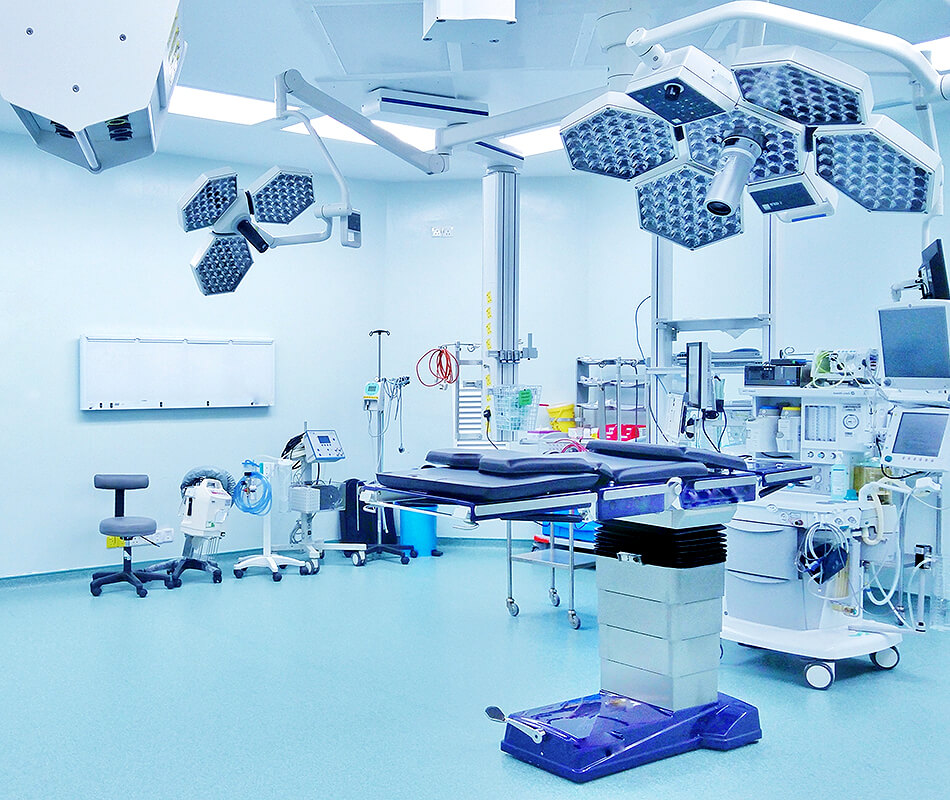

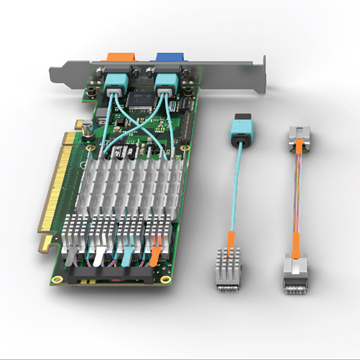

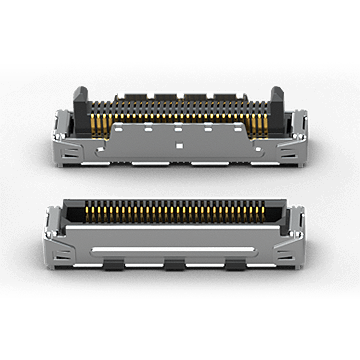

SURGICAL

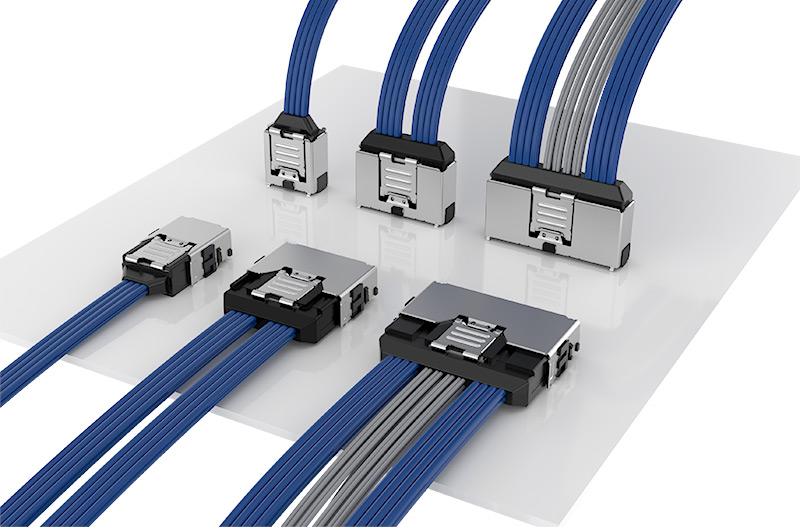

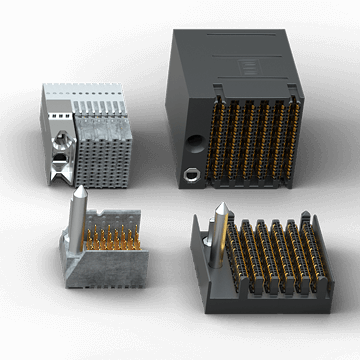

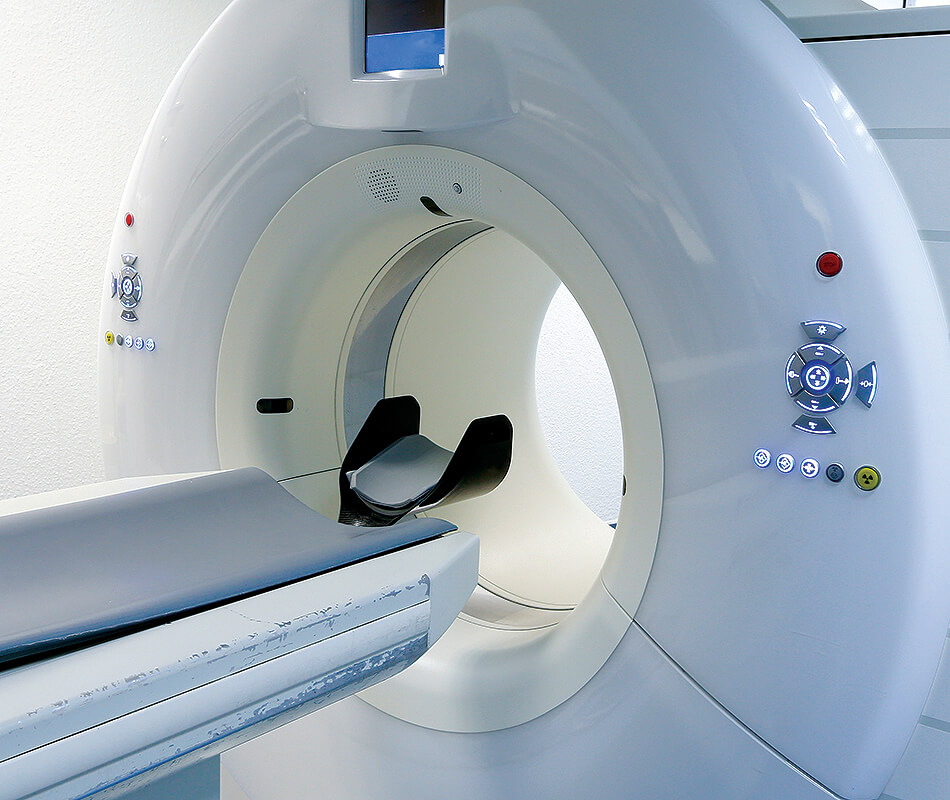

IMAGING

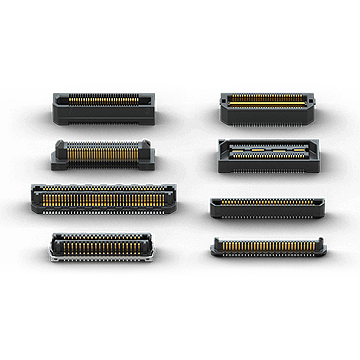

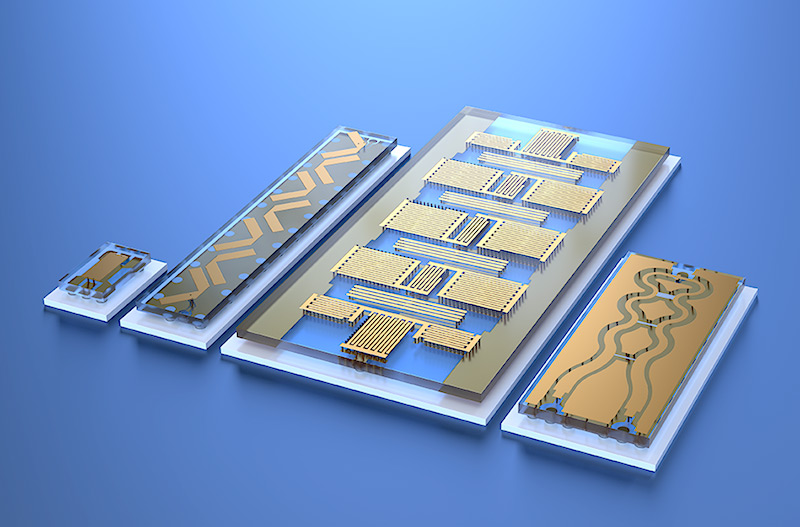

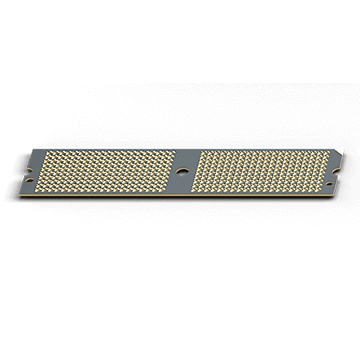

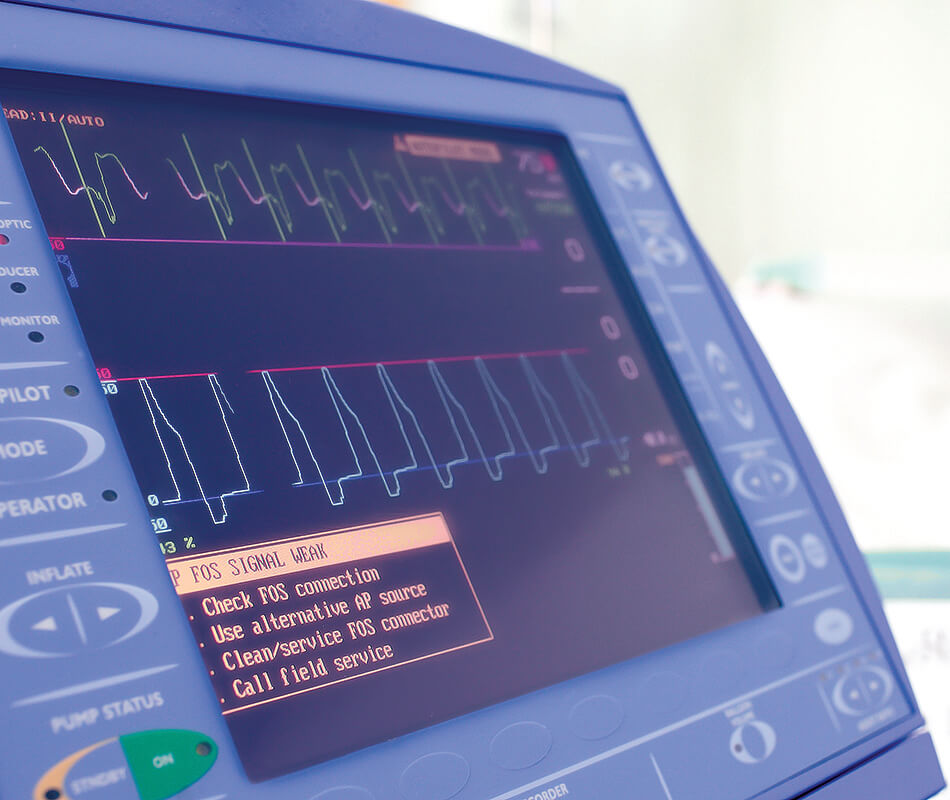

POINT OF CARE & MONITORING

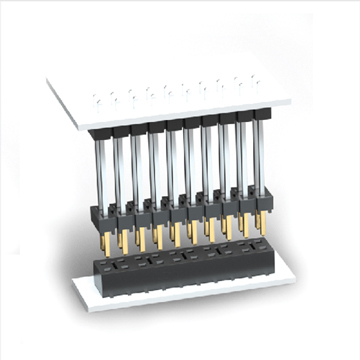

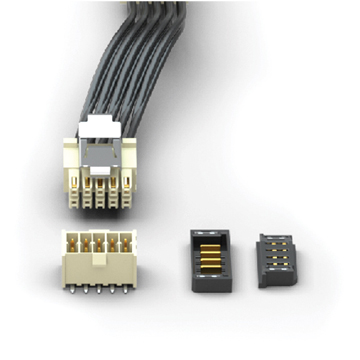

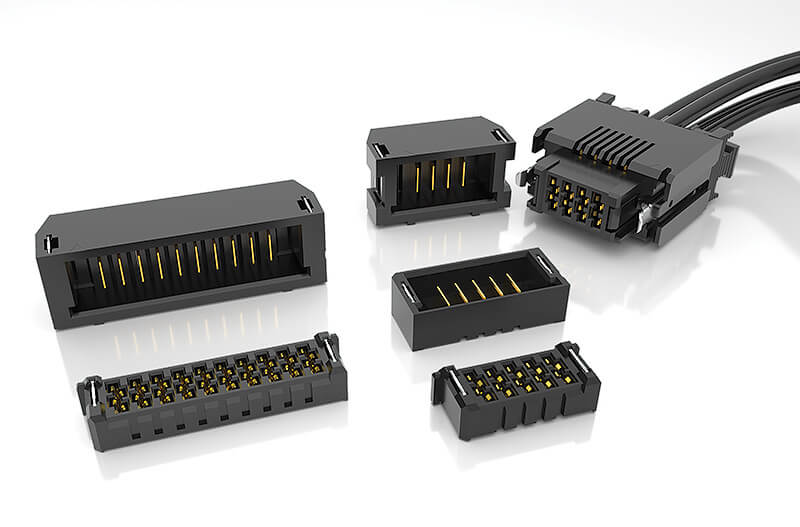

THERAPEUTICS

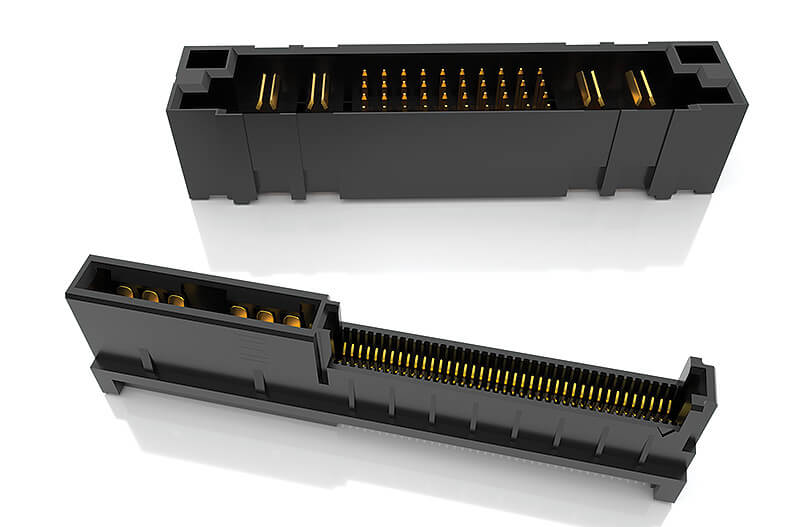

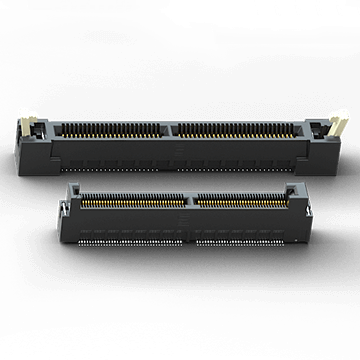

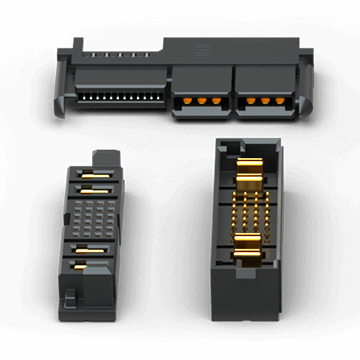

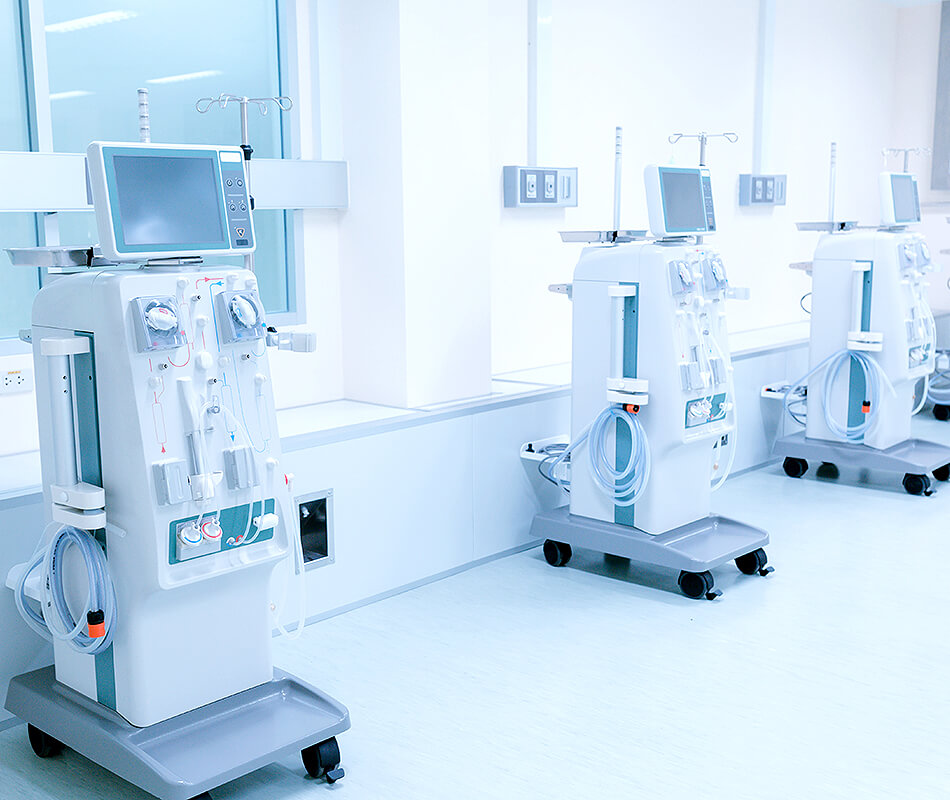

MEDICAL EQUIPMENT

TESTING AND CERTIFICATIONS

Samtec's products are tested to or beyond industry standards to ensure quality and performance in medical applications.

New initiative to test products beyond typical standards for extreme applications

SEVERE ENVIRONMENT TESTING

Severe Environment Testing is a Samtec initiative to test our products beyond typical industry standards and specifications, many set forth by common requirements for rugged industries. Several of our products undergo additional testing to ensure they are more than suitable for industrial, military, automotive, space, and other extreme applications.

TESTING INCLUDES:

VITA 47.1 Module Insertions
VITA 47.3 Humidity
VITA 47.1 Operating Shock Class OS2
VITA 47.1 Vibration Class VS3

Exceeds VITA 47.1 Temperature Cycling Class C4
Exceeds VITA 47.1 Non-Operating Temperature Class C4
VITA 47.1 Electrostatic Discharge Resistance
Exceeds VITA 47.1 Altitude for DWV

Samtec's SET products are approved for NASA Class D missions that require high-reliability, quick-turn and cost-effective solutions for LEO satellites, SmallSats, CubeSats and other space exploration applications.

Samtec also utilizes NASA outgassing data to determine if certain products meet NASA's ASTM E595-77/84/90 test requirements. Visit outgassing.nasa.gov for data.

Please visit the Severe Environment Testing page or contact [email protected] for more information.

TEST	SET	E.L.P.™	DQT
Gas Tight	X*	X*	N/A
Normal Force	X*	X*	X
Thermal Aging	X*	X*	X
Mating / Unmating / Durability (240 Hrs)	X (100% RH, 250 Cycles)	X* (90-98% RH, 100 Cycles)	X (90-98% RH, 100 Cycles)
IR / DWV	X (At Altitude of 70,000 Feet)	X*	X
CCC	X*	X*	X
Mechanical Shock / Random Vibration / LLCR & Nanosecond Event Detection	X (40 G Peak, 11 ms, Half Sine & 12gRMS, 5 - 2,000 Hz, 1 Hr / Axis)	X* (100 G Peak, 6 ms, Half Sine & 7.56gRMS Avg, 2 Hr / Axis)	X (100 G Peak, 6 ms, Half Sine & 7.56gRMS Avg, 2 Hr / Axis)
Temperature Cycling (500 Cycles)	X	N/A	N/A
Non-Operating Class Temperature	X	N/A	N/A
Electrostatic Discharge (ESD)	X	N/A	N/A
10 Year MFG (Mixed Flowing Gas)	N/A	X	N/A
Mating Cycles (250 to 2,500)	N/A	X	N/A
*Completed as part of initial Design Qualification Testing (DQT). E.L.P.™ and SET testing are performed in addition to DQT.

Rigorous testing to evaluate contact resistance in simulated storage/field conditions

EXTENDED LIFE PRODUCT^™

E.L.P.^™ products are tested to rigorous standards, which evaluate contact resistance in simulated storage and field conditions.

10 year Mixed Flowing Gas (MFG)
High Mating Cycles (250 to 2,500)
Certain plating and/or contact options will apply

For complete details on Samtec's E.L.P.^™ program, a list of qualifying products and test results, visit samtec.com/ELP or email the Customer Engineering Support Group at [email protected]

TEST	SET	E.L.P.™	DQT
Gas Tight	X*	X*	X
Normal Force	X*	X*	X
Thermal Aging	X*	X*	X
Mating / Unmating / Durability (240 Hrs)	X (100% RH, 250 Cycles)	X* (90-98% RH, 100 Cycles)	X (90-98% RH, 100 Cycles)
IR / DWV	X (At Altitude of 70,000 Feet)	X*	X
CCC	X*	X*	X
Mechanical Shock / Random Vibration / LLCR & Nanosecond Event Detection	X (40 G Peak, 11 ms, Half Sine & 12gRMS, 5 - 2,000 Hz, 1 Hr / Axis)	X* (100 G Peak, 6 ms, Half Sine & 7.56gRMS Avg, 2 Hr / Axis)	X (100 G Peak, 6 ms, Half Sine & 7.56gRMS Avg, 2 Hr / Axis)
Temperature Cycling (500 Cycles)	X	N/A	N/A
Non-Operating Class Temperature	X	N/A	N/A
Electrostatic Discharge (ESD)	X	N/A	N/A
10 Year MFG (Mixed Flowing Gas)	N/A	X	N/A
Mating Cycles (250 to 2,500)	N/A	X	N/A
*Completed as part of initial Design Qualification Testing (DQT). E.L.P.™ and SET testing are performed in addition to DQT.

All Samtec series undergo Design Qualification Testing

DESIGN QUALIFICATION TESTING

All Samtec series undergo Design Qualification Testing (DQT), which includes:

Gas Tight
Normal Force
Thermal Aging
Mating/Unmating/Durability

IR/DWV
Current Carrying Capacity (CCC)
Mechanical Shock/Random Vibration/LLCR
Mechanical Shock/Random Vibration/Event Detection

TEST	SET	E.L.P.™	DQT
Gas Tight	X*	X*	X
Normal Force	X*	X*	X
Thermal Aging	X*	X*	X
Mating / Unmating / Durability (240 Hrs)	X (100% RH, 250 Cycles)	X* (90-98% RH, 100 Cycles)	X (90-98% RH, 100 Cycles)
IR / DWV	X (At Altitude of 70,000 Feet)	X*	X
CCC	X*	X*	X
Mechanical Shock / Random Vibration / LLCR & Nanosecond Event Detection	X (40 G Peak, 11 ms, Half Sine & 12gRMS, 5 - 2,000 Hz, 1 Hr / Axis)	X* (100 G Peak, 6 ms, Half Sine & 7.56gRMS Avg, 2 Hr / Axis)	X (100 G Peak, 6 ms, Half Sine & 7.56gRMS Avg, 2 Hr / Axis)
Temperature Cycling (500 Cycles)	X	N/A	N/A
Non-Operating Class Temperature	X	N/A	N/A
Electrostatic Discharge (ESD)	X	N/A	N/A
10 Year MFG (Mixed Flowing Gas)	N/A	X	N/A
Mating Cycles (250 to 2,500)	N/A	X	N/A
*Completed as part of initial Design Qualification Testing (DQT). E.L.P.™ and SET testing are performed in addition to DQT.
