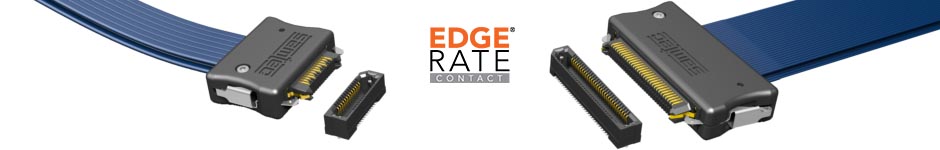

Edge Rate® High-Speed Cable Assemblies
These high-speed cable assemblies feature rugged Edge Rate® contacts and Eye Speed® micro coax or twinax cable.
DOWNLOADS & RESOURCES
- 50 Ohm, 34 AWG Micro Coax Cable Data Sheet
- 100 Ohm, 30 AWG Micro Twinax Cable Data Sheet
- Edge Rate® eBrochure
- Twinax Flyover Application Design Guide
- High-Speed Cable Application Solutions Guide
- Military/Aerospace Applications eBrochure
- Signal Integrity Performance Data
- Industry Standards and Platforms
- Signal Integrity FAQs
- Signal Integrity Handbook
ERCD
0.80 mm Edge Rate® Coax Cable Assembly
Features
- 0.80 mm (.0315") pitch
- Rugged Edge Rate® contact
- 50 ohm single-ended signal routing
- 34 AWG coax cable
- Double row system to 120 pins
- Standard metal latching system
ERDP
0.80 mm Edge Rate® Twinax Cable Assemblies
Features
- 0.80 mm (.0315") pitch
- Rugged Edge Rate® contact
- 100 ohm differential signal routing
- 30 AWG twinax cable
- Double row system to 98 pins
- Standard metal latching system
ERM8
0.80 mm Edge Rate® Rugged High Speed Terminal
Features
- Rugged Edge Rate® contact
- Smooth broad milled contact surface for increased wear life
- 1.5 mm contact wipe
- 56 Gbps PAM4 performance
- High mating cycles to 1,000
- SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing
- Positions: Up to 200
- Stack Height: 7 mm - 18 mm
- Final Inch® break out region data available
- 360º shielding available (ERM8-S)
- Latching, differential pair and extended guide post options
ERF8
0.80 mm Edge Rate® Rugged High Speed Socket
Features
- Rugged Edge Rate® contact
- Smooth broad milled contact surface for increased wear life
- 1.5 mm contact wipe
- 56 Gbps PAM4 performance
- High mating cycles to 1,000
- SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing
- Positions: Up to 200
- Stack Height: 7 mm - 18 mm
- Final Inch® break out region data available
- 360º shielding available (ERF8-S)
- Latching and extended guide post options
ERM8-S
0.80 mm Edge Rate® Rugged High Speed Terminal, Shielded
Features
- 360º metal shielding for reduced EMI
- Available with extended guide post
- High mating cycles to 1,000
- 56 Gbps PAM4 performance
- Rugged Edge Rate® contacts optimized for signal integrity performance
- 1.5 mm contact wipe
- Single-ended or differential pair signal routing
- Positions: 20 - 60
- Stack Height: 7, 9, 12 and 16 mm
ERF8-S
0.80 mm Edge Rate® Rugged High Speed Socket, Shielded
Features
- 360º metal shielding for reduced EMI
- Available with extended guide post
- High mating cycles to 1,000
- 56 Gbps PAM4 performance
- Rugged Edge Rate® contacts optimized for signal integrity performance
- 1.5 mm contact wipe
- Positions: 20 - 60
- Stack Height: 7, 9, 12 and 16 mm
