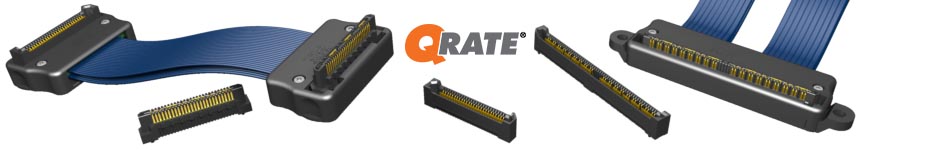

Q Rate® High-Speed Cable Assemblies
These high-speed cable assemblies feature a ground plane, micro coax or twinax cable and rugged Edge Rate® contacts.
EQRD
0.80 mm Q Rate® Coax Cable Assembly
Features
- 0.80 mm (.0315") pitch
- Rugged Edge Rate® contacts
- Slim body design
- 50 ohm single-ended signal routing
- 34 AWG coax cable
- Double row system to 120 pins
- Optional screw downs for the most rugged requirements
EQRP
0.80 mm Q Rate® High-Speed Twinax Cable Assembly
Features
- 0.80 mm (.0315") pitch
- 100 ohm differential signal routing
- 32 AWG twinax cable
- Double row system to 108 pins
- Integral power/ground plane
- Optional screw downs for the most rugged requirements
- Rugged Edge Rate® contacts
QRM8
0.80 mm Q Rate® Slim Body Ground Plane Header
Features
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- Extended Life Product™ (E.L.P.™)
- 7 mm - 14 mm stack heights
- Up to 156 positions
- Samtec 28+ Gbps Solution
QRF8
0.80 mm Q Rate® Slim Body Ground Plane Socket
Features
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- Extended Life Product™ (E.L.P.™)
- 7 mm - 14 mm stack heights
- Up to 156 positions
- Samtec 28+ Gbps Solution
QRM8-DP
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Terminal Strip, Differential Pair
Features
- Performance: Up to 10 GHz / 20 Gbps
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- 7 mm - 14 mm stack heights
- Up to 108 positions
QRF8-DP
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Socket Strip, Differential Pair
Features
- Performance: Up to 10 GHz / 20 Gbps
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- 7 mm - 14 mm stack heights
- Up to 108 positions
