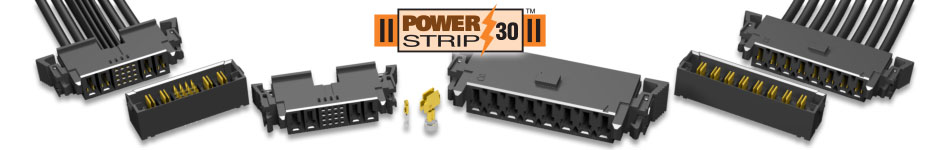

5.00 mm Pitch PowerStrip™/30 Discrete Wire System
Power only and combination signal/power cables with mating sockets up to 30 A per pin for rugged applications.
FEATURES
- 30 A high-power system
- Dual leaf / dual blade power blades
- Tiger Eye™ signal contacts
- Rugged latching system
- Power only and combination signal/power systems
- Available as components or complete assemblies
- Assembly tooling available (Visit samtec.com/tooling)
IMS5
5.00 mm PowerStrip™/30 A Discrete Wire Socket Housing
Features
- 5.00 mm (.1969") pitch
- 14 to 16 AWG cable
- Single Row
- Plastic latches
IMSC5
5.00 mm Power Contacts/ 2.00 mm Signal Contacts PowerStrip™/30 A Discrete Wire Combo Cable Housing
Features
- 5.00 mm (.1969") pitch
- 2.00 mm (.0787") pitch
- 14 to 30 AWG cable
- Plastic latches
- UL: File # E111594
CC46L
5.00 mm PowerStrip™/30 A Crimp Contact, Loose Piece
Features
- .197" (5.00 mm) pitch
- Copper alloy crimp termination contact
- Accepts 14 to 16 AWG cable
- Loose contacts
CC46R
5.00 mm PowerStrip™/30 A Crimp Contact, Reel Packaging
Features
- .197" (5.00 mm) pitch
- Copper alloy crimp termination contact
- Accepts 14 to 16 AWG cable
- Reeled contacts
CC81L
2.00 mm Tiger Eye™ Crimp Contact, Loose Piece
Features
- 2.00 mm (.0787") pitch
- High-performance multi-finger Beryllium Copper contact
- Accepts 24 to 30 AWG cable
- Loose contacts
CC81R
2.00 mm Tiger Eye™ Crimp Contact, Reel Packaging
Features
- 2.00 mm (.0787") pitch
- High-performance multi-finger Beryllium Copper contact
- Accepts 24 to 30 AWG cable
- Reeled contacts
MPSS
5.00 mm PowerStrip™/30 A Power Cable Assembly, Socket
Features
- 5.00 mm (.1969") pitch
- High-power dual leaf style contact
- Polarized with rugged latching system
- 14 and 16 AWG cable
- 2 to 8 power positions
- Current rating to 11.7A
MPCC
5.00 mm Mini PowerStrip™/30 A Signal/Power Combo Cable Assembly
Features
- 5.00 mm (.1969") pitch
- High-power dual leaf style contact
- High-reliability Beryllium Copper Tiger Eye™ signal contacts
- Polarized with rugged latching system
- 14 and 16 AWG cable for power, 24 to 30 AWG cable for signal
- 4 power positions with 16 or 24 signal pins
MPT
5.00 mm PowerStrip™/30 A Dual Blade Terminal Strip
Features
- 5.00 mm (.1969") pitch
- High-power dual blade contact
- 2 to 8 power positions
- Current rating to 24.7A
MPTC
5.00 mm PowerStrip™/30 A Signal/Power Combo Terminal Strip
Features
- 5.00 mm (.1969") pitch for power contacts
- High-power dual blade contact
- 2 or 4 power positions
- 16, 24, 40 or 80 signal pins
