NovaRay^® 112 Gbps PAM4, Extreme Density Arrays

NovaRay^® 112 Gbps PAM4, Extreme Density Arrays

NovaRay^® combines extreme density and performance for 112 Gbps PAM4 per channel in 40% less space than traditional arrays.

Family Overview

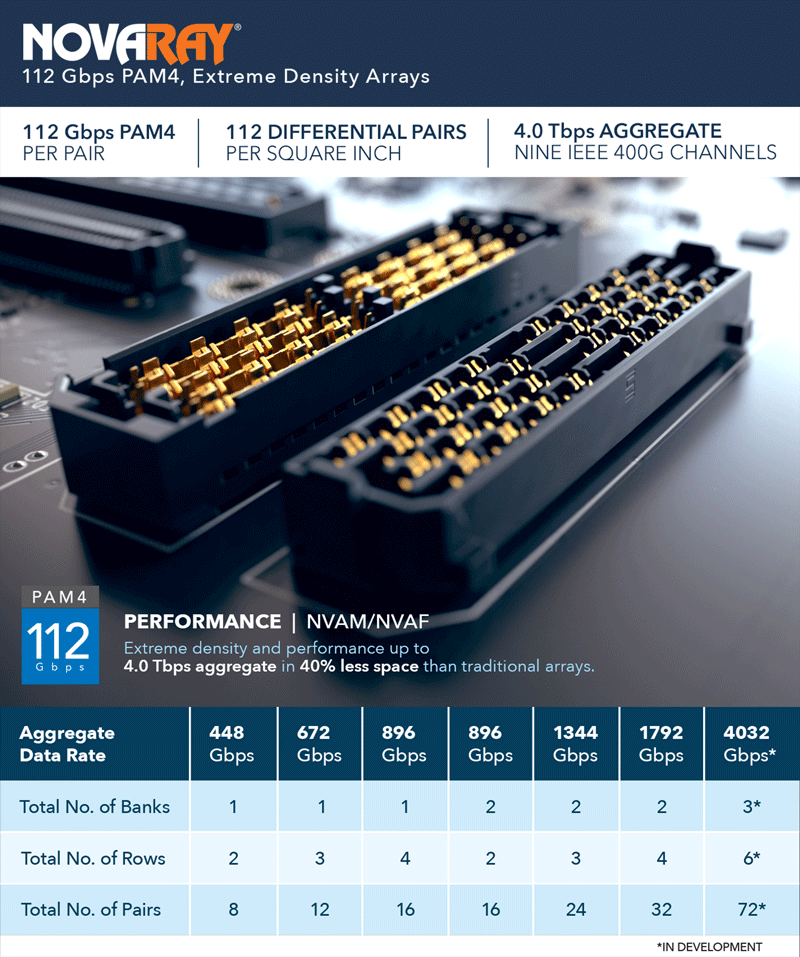

dc kiosk product level

The innovative design of NovaRay^® combines extreme density and extreme performance, which is critical as system sizes decrease and speeds increase. The fully shielded differential pair design and two reliable points of contact contribute to the industry leading 4.0 Tbps aggregate data rate.

NovaRay^® Product Explorer

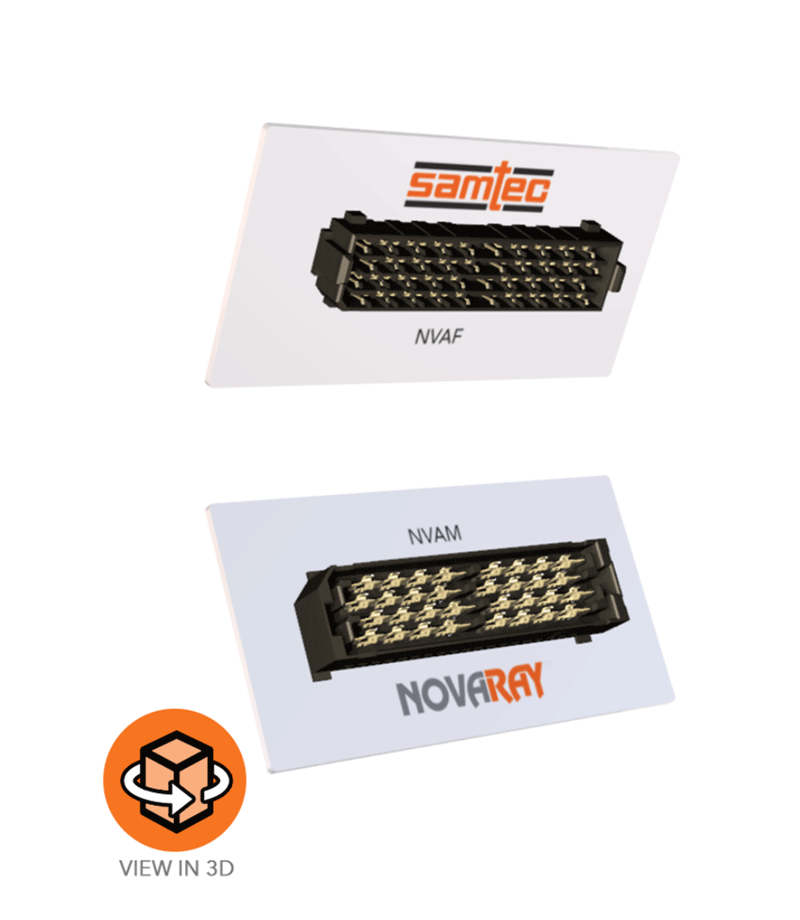

novaray explorer

FEATURES

Overview
Extreme Performance/Density
Multiple Points of Contact
Aggregate Data Rate

Overview

Extreme Performance/Density

112 Gbps PAM4 per channel
4.0 Tbps aggregate data rate - 9 IEEE 400G channels
PCIe^® 6.0 capable
Innovative, fully shielded differential pair design enables:
- Extremely low crosstalk (to 40 GHz)
- Tight impedance control
- Minimal variance in data rate as stack height increases
112 differential pairs per square inch
Utilizes 40% less space than traditional arrays with the same data throughput
BGA attach to board for greater density and optimized trace breakout region

extreme performance density

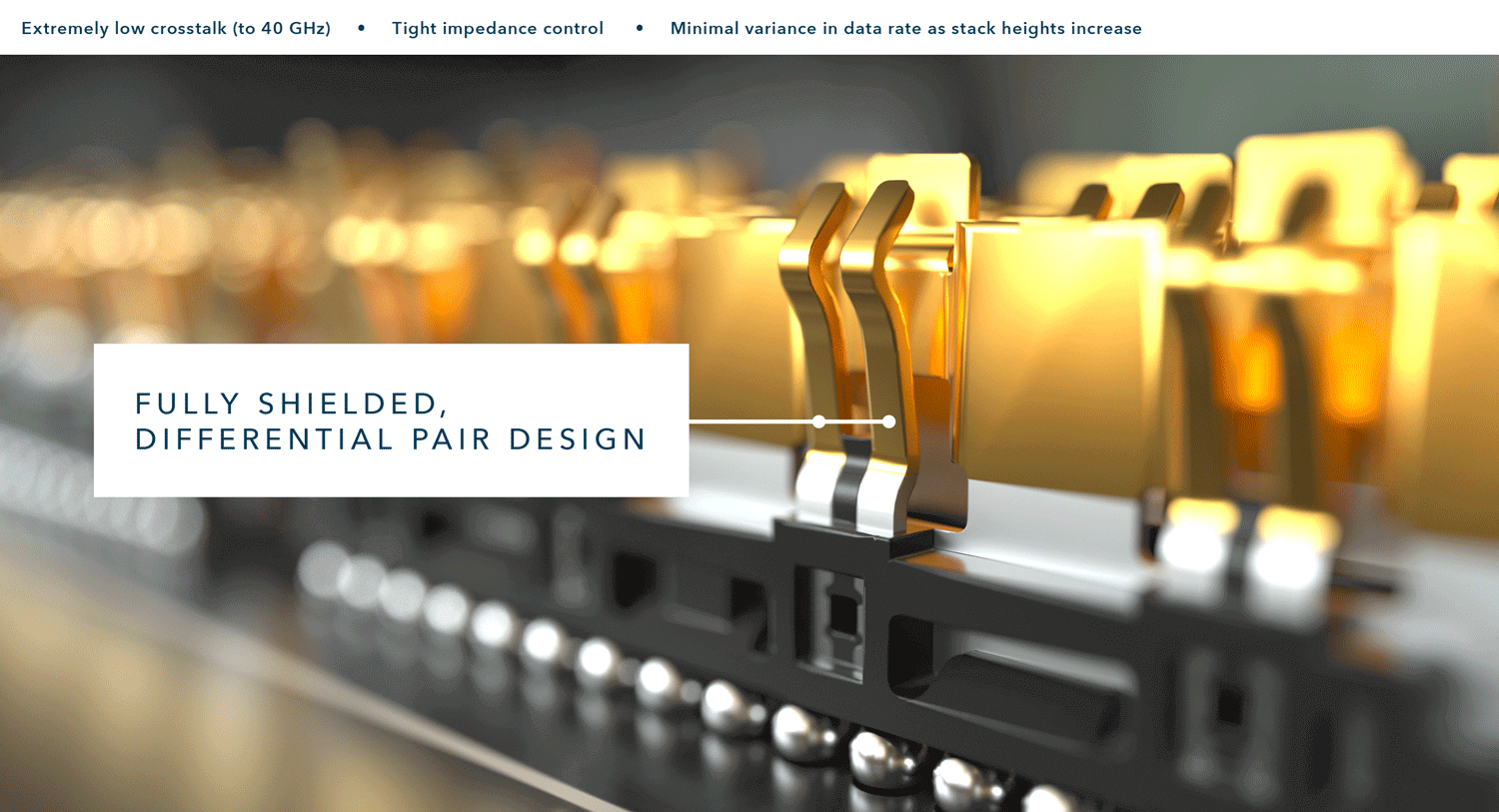

novaray key product features

Multiple Points of Contact

Guaranteed two points of contact ensure a more reliable connection
Stub-free mating
Signals lost at the first point are caught in the second
Contributes to the 112 Gbps PAM4 rating
92 Ω solution addresses both 85 Ω and 100 Ω applications

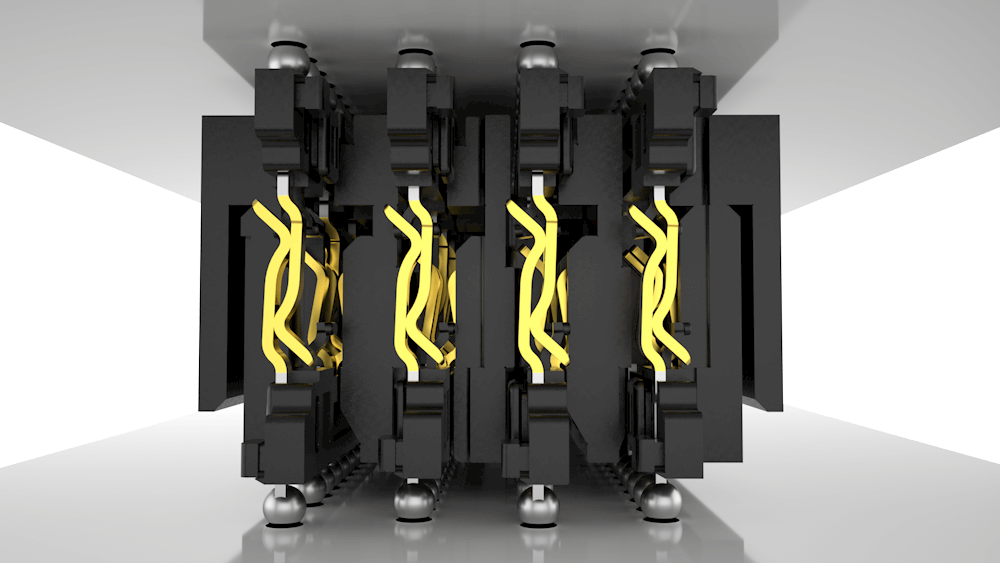

novaray cutaway

Aggregate Data Rate

Aggregate Data Rate
Aggregate Data Rate	448 Gbps	672 Gbps	896 Gbps	896 Gbps	1344 Gbps	1792 Gbps	4032 Gbps*
Total No. of Banks	1	1	1	2	2	2	3*
Total No. of Rows	2	3	4	2	3	4	6*
Total No. of Pairs	8	12	16	16	24	32	72*
							In Development*

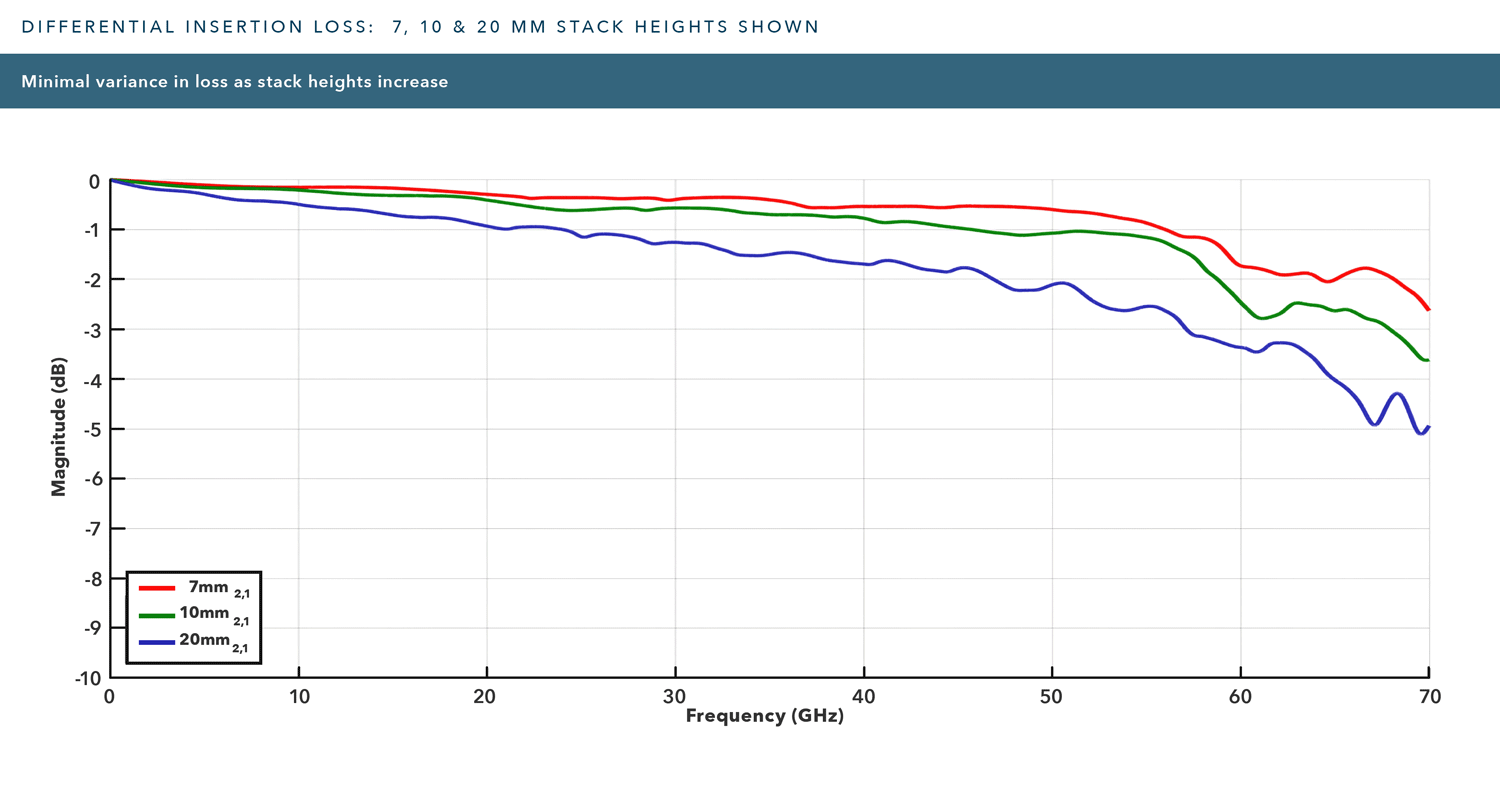

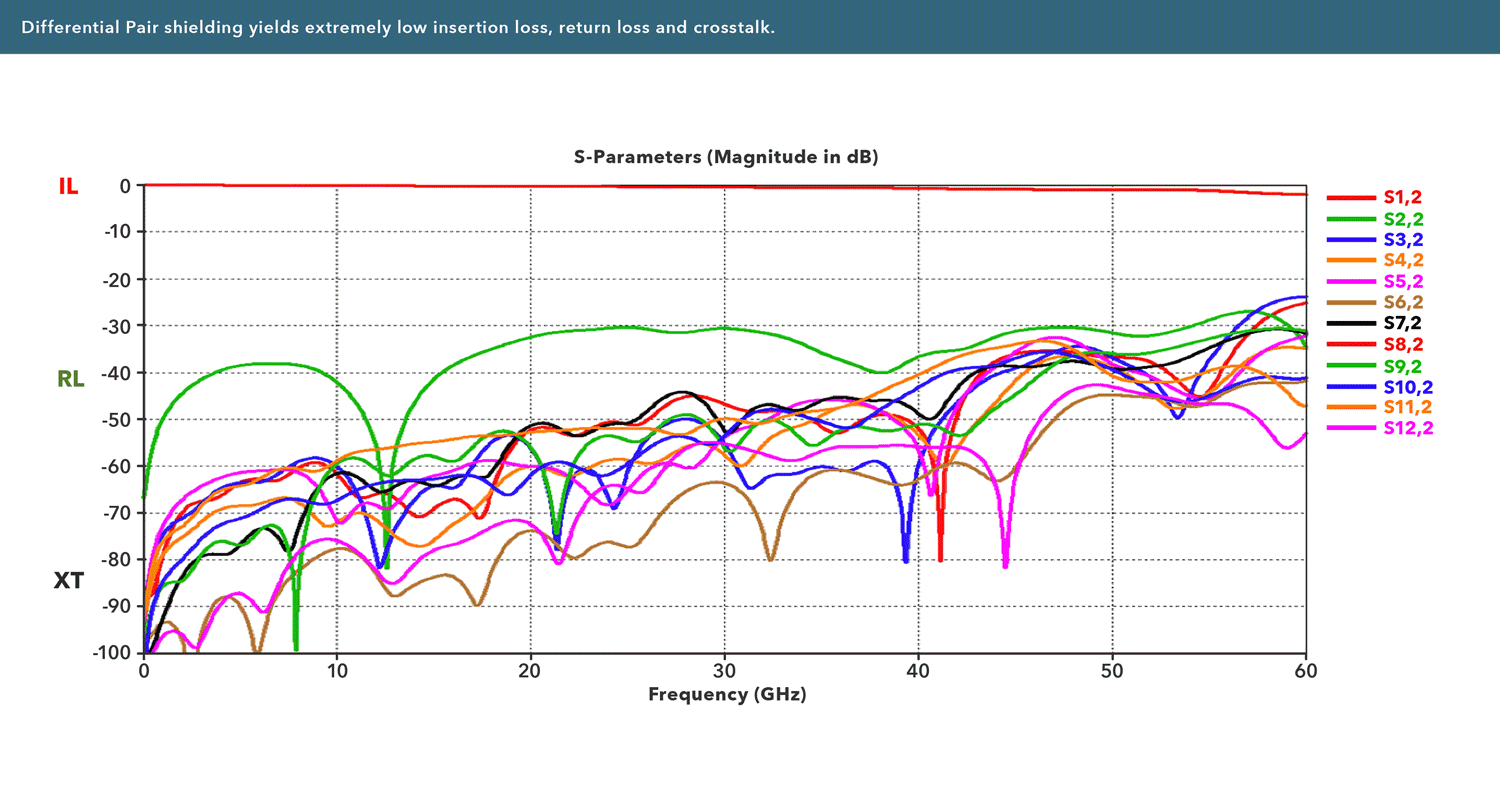

NovaRay^® Technical Data

Mechanical Overview
& Roadmap

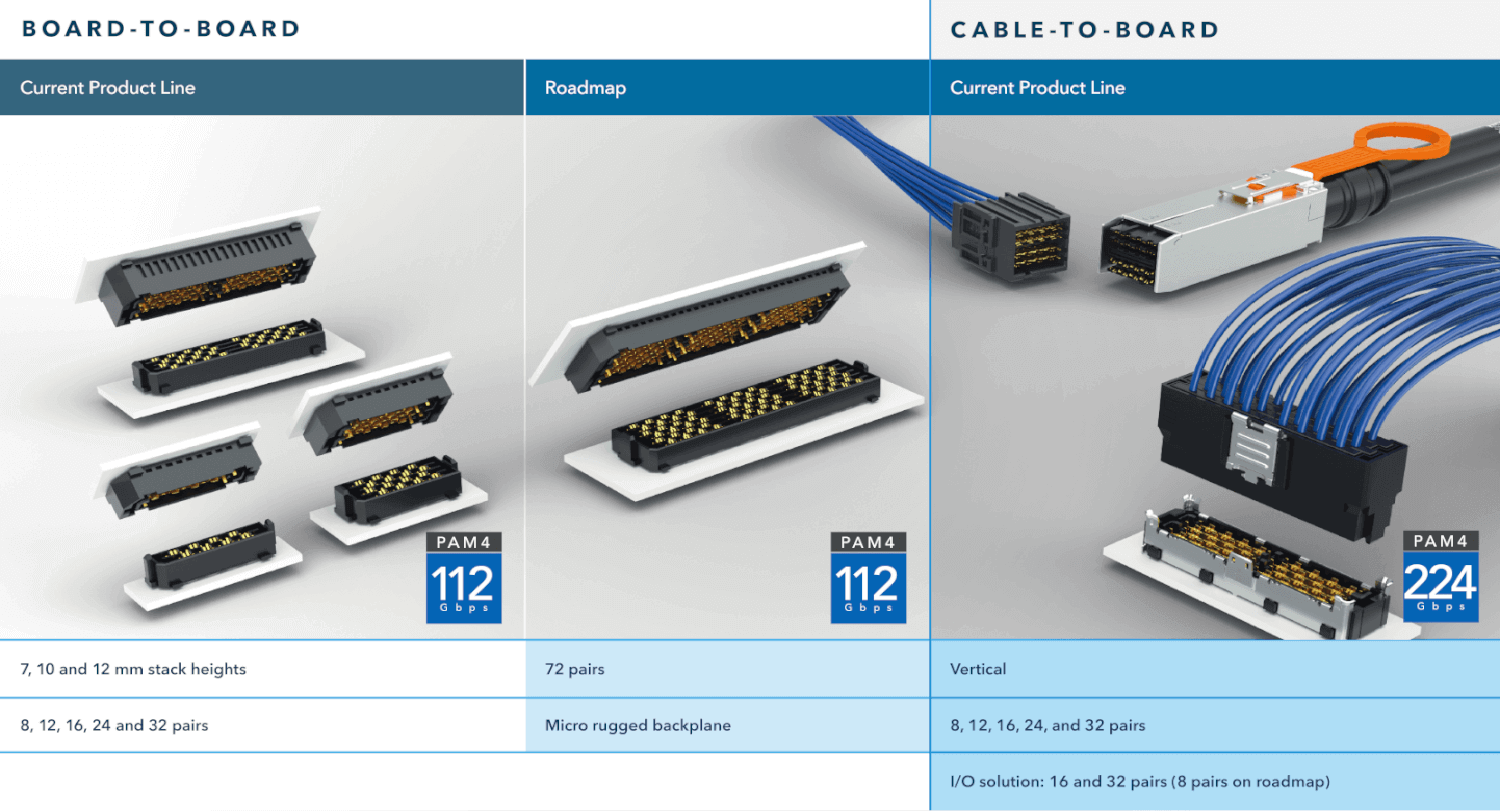

novaray overview technical data

Technical
Data

DOWNLOADS & RESOURCES

Literature

High-Speed Board-to-Board Application Guide

High-Speed Board-to-Board Application Guide

Get

High-Speed Cable Interconnect Solutions Guide

High-Speed Cable Interconnect Solutions Guide

Get

NovaRay® eBrochure

NovaRay® eBrochure

Get

Analog Over Array™ eBrochure

Analog Over Array™ eBrochure

Get

Technical Documents

Array Connectors for Mixed-Signal Multi-Channel RFSOCs up to 8 GHz White Paper

Products

NVAM

0.80 mm NovaRay® Extreme Density & Performance Terminal

Features

112 Gbps PAM4 per channel
PCIe® 6.0/CXL® 3.1 capable
7, 9, 10 and 12 mm stack heights
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Two points of contact ensure a more reliable connection
Minimal variance in data rate as stack height increases
Analog Over Array™ capable

0.80 mm NovaRay® Extreme Density & Performance Terminal

Downloads

Download 3D Model Configure and Add to Cart Configure a Free Sample Technical Details

NVAF

0.80 mm NovaRay® Extreme Density & Performance Socket

Features

112 Gbps PAM4 per channel
PCIe® 6.0/CXL® 3.1 capable
7, 9, 10 and 12 mm stack heights
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Two points of contact ensure a more reliable connection
Minimal variance in data rate as stack height increases
Analog Over Array™ capable

0.80 mm NovaRay® Extreme Density & Performance Socket

Downloads

Download 3D Model Configure and Add to Cart Configure a Free Sample Technical Details

GPSO

SureWare™ Guide Post Standoff

Features

Allows for 0.035" of initial misalignment; alignment starts before connectors engage
Assists with “blind mate” for ultra micro, fine pitch mezzanine connectors
5 mm - 30 mm stack heights
MIL-DTL stainless steel
Pairs well with NVAM/NVAF, APM6/APF6, ADM6/ADF6 and UMPT/UMPS

SureWare™ Guide Post Standoff

Downloads

Technical Details

NVAC

0.80 mm NovaRay® Extreme Density & Performance Socket Cable Assembly

Features

112 Gbps PAM4 per channel
PCIe® 6.0/CXL® 3.1 capable
40% smaller than conventional cable solutions
34 AWG Eye Speed® twinax cable
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Rugged metal latching system

0.80 mm NovaRay® Extreme Density & Performance Socket Cable Assembly

Downloads

Download 3D Model Configure and Add to Cart Configure a Free Sample Technical Details

NVAM-CT

0.80 mm NovaRay® Extreme Density & Performance Terminal for NVAC Series

Features

112 Gbps PAM4 per channel
PCIe® 6.0/CXL® 3.1 capable
40% smaller than conventional cable connectors
Rugged metal latching for mating with NovaRay® cable assembly
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Mates with NovaRay® cable assembly (NVAC Series)

0.80 mm NovaRay® Extreme Density & Performance Terminal for NVAC Series

Downloads

Technical Details

NVBF

IN DEVELOPMENT: 0.80 mm NovaRay® Micro Rugged Backplane Vertical Socket

Features

Ultra-high density with up to 128 differential pairs in a single connector
56 Gbps NRZ/112 Gbps PAM4 performance per channel
Supports blind mate applications
Surface mount for better density and performance
Offset footprint for optimum signal integrity
Flyover® cable assembly in design
Optional guidance and keying
Standard weld tabs for a secure connection to the board

IN DEVELOPMENT: 0.80 mm NovaRay® Micro Rugged Backplane Vertical Socket

Downloads

Technical Details

NVBM-RA

IN DEVELOPMENT: 0.80 mm NovaRay® Micro Rugged Backplane Right-Angle Header

Features

Ultra-high density with up to 128 differential pairs in a single connector
56 Gbps NRZ/112 Gbps PAM4 performance per channel
Supports blind mate applications
Surface mount for better density and performance
Offset footprint for optimum signal integrity
Optional guidance and keying
Standard weld tabs for a secure connection to the board

IN DEVELOPMENT: 0.80 mm NovaRay® Micro Rugged Backplane Right-Angle Header

Downloads

Technical Details
