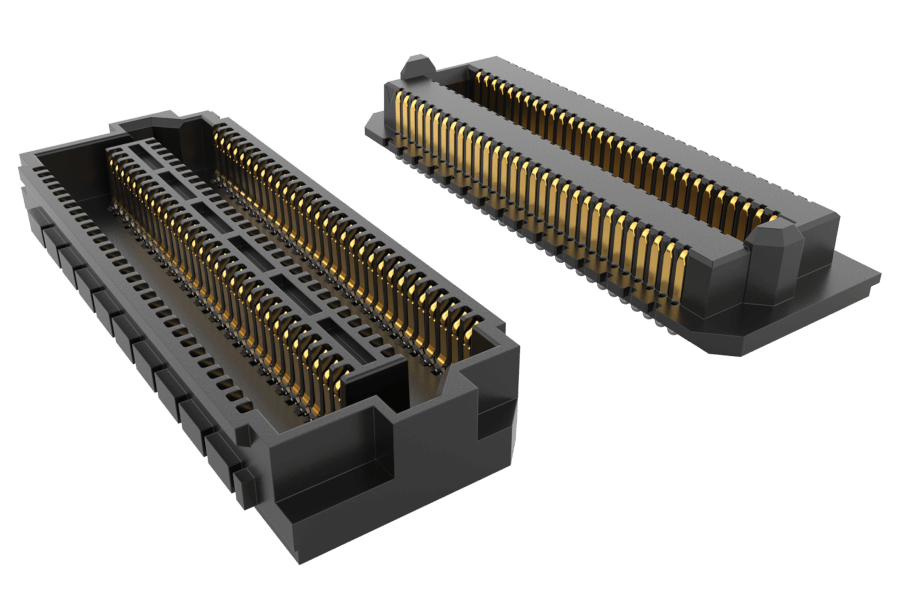

AcceleRate® HP High-Performance Arrays
AcceleRate® HP High-Performance Arrays
FEATURES
- 0.635 mm pitch open-pin-field array
- 56 Gbps NRZ/112 Gbps PAM4 performance
- Cost optimized solution
- Low-profile 5 mm and up to 10 mm stack heights
- Up to 400 total pins available; roadmap to 1,000+ pins
- Data rate compatible with PCIe® 6.0 and 100 GbE
DOWNLOADS & RESOURCES
Literature
APM6
0.635 mm Pitch AcceleRate® HP High-Performance Array Terminal
Features
- Open-pin-field for grounding and routing flexibility
- 56 Gbps NRZ/112 Gbps PAM4 performance
- Up to 400 total pins available; roadmap to 1,000+ pins
- Low-profile 5 mm and up to 10 mm stack heights
- Data rate compatible with PCIe® 6.0/CXL® 3.1 and 100 GbE
- Analog Over Array™ capable
- View the full line of AcceleRate® products
APF6
0.635 mm Pitch AcceleRate® HP High-Performance Array Socket
Features
- Open-pin-field for grounding and routing flexibility
- 56 Gbps NRZ/112 Gbps PAM4 performance
- Up to 400 total pins available; roadmap to 1,000+ pins
- Low-profile 5 mm and up to 10 mm stack heights
- Data rate compatible with PCIe® 6.0/CXL® 3.1 and 100 GbE
- Analog Over Array™ capable
- View the full line of AcceleRate® products
APF6-RA
0.635 mm AcceleRate® HP High-Performance Array, Right-Angle
Features
- Open-pin-field for grounding and routing flexibility
- 56 Gbps NRZ/112 Gbps PAM4 performance
- Data rate compatible with PCIe® 6.0/CXL® 3.1 and 100 GbE
- Analog Over Array™ capable
- View the full line of AcceleRate® products
GPSO
SureWare™ Guide Post Standoff
Features
- Allows for 0.035" of initial misalignment; alignment starts before connectors engage
- Assists with “blind mate” for ultra micro, fine pitch mezzanine connectors
- 5 mm - 30 mm stack heights
- MIL-DTL stainless steel
- Pairs well with NVAM/NVAF, APM6/APF6, ADM6/ADF6 and UMPT/UMPS
GPSK
SureWare™ Right-Angle Guide Post Socket
Features
- Accommodates blind mating in perpendicular applications
- Mates with GPPK Series guide post
- Use with PCB thickness of .062" (1.60 mm) to .125" (3.18 mm)
- Pairs with most high-speed connector strips and arrays
GPPK
SureWare™ Guide Post, Mates with GPSK
Features
- Accommodates blind mating in perpendicular applications
- Mates with GPSK guide post socket
- Pairs with most high-speed connector strips and arrays
