FAMILY OVERVIEW
AcceleRate® HD features high-speed Edge Rate® contacts designed for high-speed, high-cycle applications.
The surface of the contact is milled creating a smooth mating surface, which reduces wear on the contact increasing durability and cycle life. Also, lower insertion and withdrawal forces allow zippered unmating.
FEATURES
- Incredibly dense with up to 400 total I/Os
- Low profile 5 mm and up to 16 mm stack heights
- Slim 5 mm width
- 4-row design; 10 - 100 positions per row
- Edge Rate® contact system optimized for signal integrity performance
- Open-pin-field design for grounding and routing flexibility
- Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
- PCIe® 6.0 capable
- Right-angle and cable in development
- SureWare™ ultra rugged guide post standoffs available (GPSO)
- View the full line of AcceleRate® products
DOWNLOADS & RESOURCES
Literature
ADM6
0.635 mm AcceleRate® HD High-Density 4-Row Terminal
Features
- Incredibly dense with up to 400 total I/Os
- Low profile 5 mm stack height and slim 5 mm width

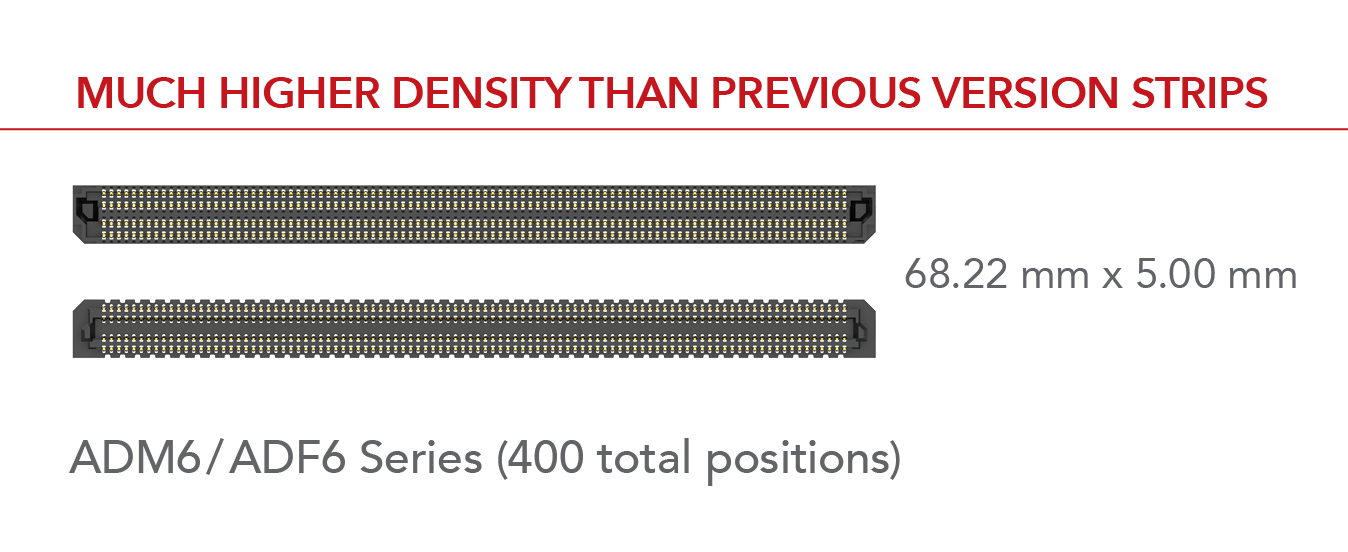

- 4-row design; 10 - 60 and 100 positions per row (40 - 400 total positions)
- Edge Rate® contact system optimized for signal integrity performance
- Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
- PCIe® 6.0/CXL® 3.1 capable
- Additional stack heights in development
- View the full line of AcceleRate® products
ADF6
0.635 mm AcceleRate® HD High-Density 4-Row Socket
Features
- Incredibly dense with up to 400 total I/Os
- Low profile 5 mm stack height and slim 5 mm width
- 4-row design; 10 - 60 and 100 positions per row (40 - 400 total positions)
- Edge Rate® contact system optimized for signal integrity performance
- Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
- PCIe® 6.0/CXL® 3.1 capable
- Additional stack heights in development
- View the full line of AcceleRate® products
GPSO
SureWare™ Guide Post Standoff
Features
- Allows for 0.035" of initial misalignment; alignment starts before connectors engage
- Assists with “blind mate” for ultra micro, fine pitch mezzanine connectors
- 4 mm - 30 mm stack heights
- MIL-DTL stainless steel
- Pairs well with NVAM/NVAF, APM6/APF6, ADM6/ADF6 and UMPT/UMPS
