AcceleRate® mP High-Density, High-Speed Power/Signal Arrays
AcceleRate® mP High-Density, High-Speed Power/Signal Arrays
FEATURES
- Best in class density for power and signal
- Power blades rotated 90º gives equal access to heat escape for uniform cooling, increased current capacity and reduced crowding
- Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
- PCIe® 6.0 capable
- Up to 22 Amps per power blade
- Open-pin-field design for routing and grounding flexibility
- High-density multi-row design
- Low profile 5 mm stack height; up to 16 mm in development
- 4 or 8 total power blades; up to 10 in development
- 60 or 240 total signal positions; additional position counts in development
- 0.635 mm signal pitch
- Optional alignment pins and weld tabs for a secure connection to the board
- Polarized guide posts for blind mating
- View the full line of AcceleRate® products

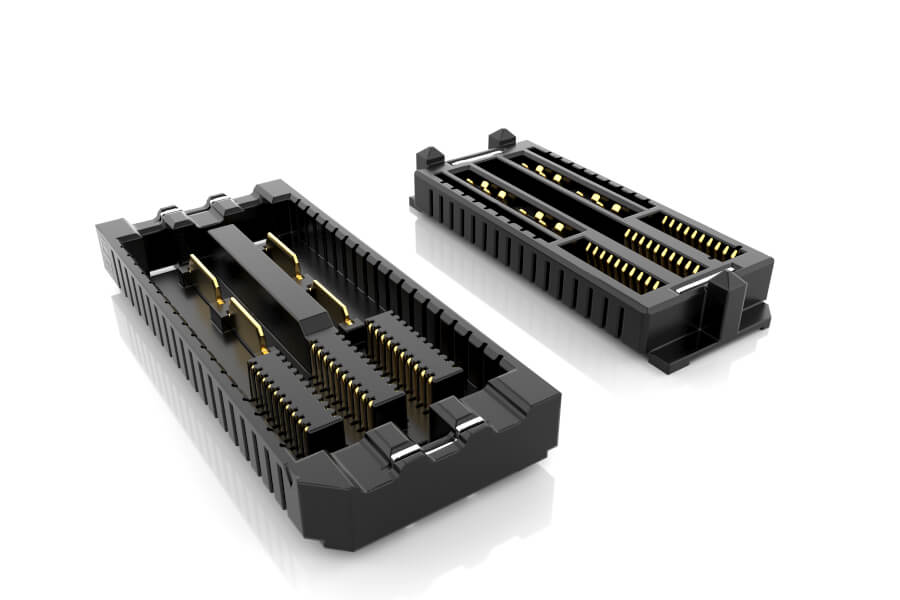

AcceleRate® mP
(UDM6 Series)

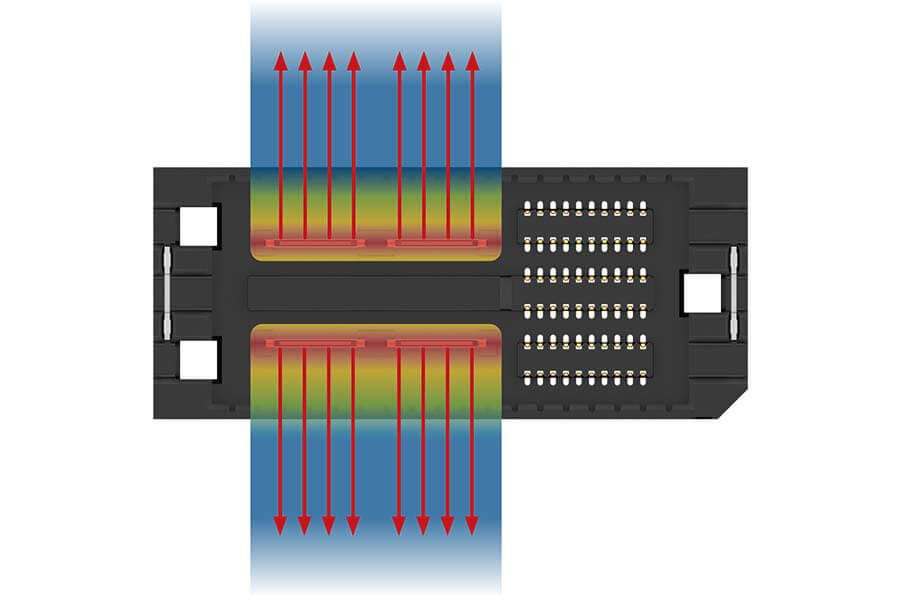

Blades rotated 90° have equal access to heat escape for uniform cooling, increased current capacity, and reduced crowding.
DOWNLOADS & RESOURCES
Literature
UDM6
IN DEVELOPMENT: 0.635 mm AcceleRate® mP High-Density, High-Speed Power/Signal Terminal
Features
- 0.635 mm signal pitch
- 2 or 4 power blades per row (2 rows)
- Rotated power blades improve performance and simplify breakout region (BOR)
- 10 or 40 signal positions per row (6 rows)
- Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
- PCIe® 6.0/CXL® 3.1 capable
- Low profile 5 mm stack height; up to 16 mm in development
- Alignment pins, weld tabs and polarized guide posts
- View the full line of AcceleRate® products
UDF6
IN DEVELOPMENT: 0.635 mm AcceleRate® mP High-Density, High-Speed Power/Signal Socket
Features
- 0.635 mm signal pitch
- 2 or 4 power blades per row (2 rows)
- Rotated power blades improve performance and simplify breakout region (BOR)
- 10 or 40 signal positions per row (6 rows)
- Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
- PCIe® 6.0/CXL® 3.1 capable
- Low profile 5 mm stack height; up to 16 mm in development
- Alignment pins, weld tabs and polarized guide posts
- View the full line of AcceleRate® products
