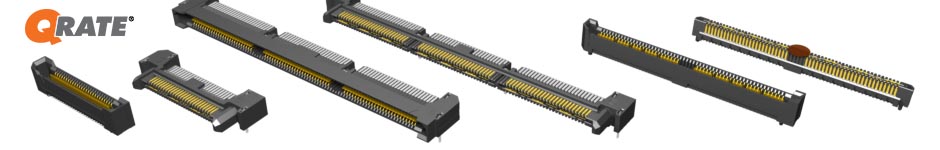

Q Rate® Slim, Rugged High-Speed Mezzanine Connectors
Samtec Q Rate® rugged high speed connectors have a slim footprint, integral power/ground plane, and Edge Rate® contacts for superior SI performance.
QRF8
0.80 mm Q Rate® Slim Body Ground Plane Socket
Features
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- Extended Life Product™ (E.L.P.™)
- 7 mm - 14 mm stack heights
- Up to 156 positions
- Samtec 28+ Gbps Solution
QRM8
0.80 mm Q Rate® Slim Body Ground Plane Header
Features
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- Extended Life Product™ (E.L.P.™)
- 7 mm - 14 mm stack heights
- Up to 156 positions
- Samtec 28+ Gbps Solution
QRF8-DP
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Socket Strip, Differential Pair
Features
- Performance: Up to 10 GHz / 20 Gbps
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- 7 mm - 14 mm stack heights
- Up to 108 positions
QRF8-RA
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Socket Strip, Right-Angle
Features
- Performance: Up to 16 GHz / 32 Gbps
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Low profile (5.13 mm)
- Up to 156 positions
- Samtec 28+ Gbps Solution
QRM8-DP
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Terminal Strip, Differential Pair
Features
- Performance: Up to 10 GHz / 20 Gbps
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Slim 4.60 mm width
- 7 mm - 14 mm stack heights
- Up to 108 positions
QRM8-RA
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Terminal Strip, Right-Angle
Features
- Performance: Up to 16 GHz / 32 Gbps
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Low profile (5.13 mm)
- Up to 156 positions
- Samtec 28+ Gbps Solution
