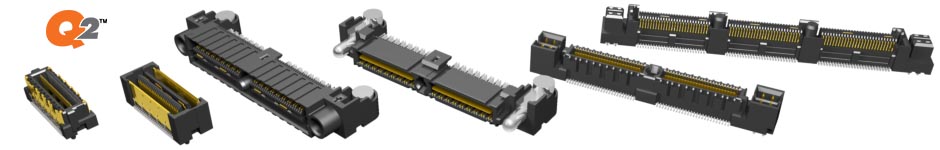

Q2™ Rugged, Shielded, High-Speed Mezzanine Connectors
These rugged, shielded, high-speed mezzanine connectors feature a ground plane and high-wipe contacts.
QFS
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
- 25 Gbps performance
- Guide post option
QMS
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
- 25 Gbps performance
- Guide post option
QFS-DP
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip, Differential Pair
Features
- 0.635 mm pitch (.025")
- Guide post option
- Up to 128 positions
QMS-DP
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip, Differential Pair
Features
- 0.635 mm pitch (.025")
- Up to 128 positions
- Guide post option
QFS-RA
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip, Right-Angle
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
QMS-RA
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip, Right-Angle
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
QFS-EM
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip, Edge Mount
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
- Integral guide post
QMS-EM
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip, Edge Mount
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
- Integral guide post
QFS-PC
0.635 mm Q2™ High-Speed Rugged Ground Plane Combo Power Socket Strip
Features
- 0.635 mm pitch (.025")
- Up to 156 positions
QMS-PC
0.635 mm Q2™ High-Speed Rugged Ground Plane Combo Power Terminal Strip
Features
- 0.635 mm pitch (.025")
- Up to 156 positions
QFSS
0.635 mm Q2™ Shielded Ground Plane Socket Strip
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
- Optional power pins
QMSS
0.635 mm Q2™ Shielded Ground Plane Terminal Strip
Features
- 0.635 mm pitch (.025")
- Up to 208 positions
- Optional power pins
QFSS-DP
0.635 mm Q2™ Shielded Ground Plane Socket Strip, Differential Pair
Features
- 0.635 mm (.025") pitch
- Up to 96 positions
- Optional power pins
- Differential pair signaling
QMSS-DP
0.635 mm Q2™ Shielded Ground Plane Terminal Strip, Differential Pair
Features
- 0.635 mm pitch (.025")
- Up to 96 positions
- Optional power pins
- Differential pair signaling
QFSS-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Socket Strip
Features
- 0.635 mm pitch (.025")
- Up to 156 positions
QMSS-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Terminal Strip
Features
- 0.635 mm pitch (.025")
- Up to 156 positions
QFSS-DP-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Socket Strip, Differential Pair
Features
- 0.635 mm pitch (.025")
- Up to 96 positions
- Differential pair signaling
QMSS-DP-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Terminal Strip, Differential Pair
Features
- 0.635 mm pitch (.025")
- Up to 96 positions
- Differential pair signaling
GPSK
SureWare™ Right-Angle Guide Post Socket
Features
- Accommodates blind mating in perpendicular applications
- Mates with GPPK Series guide post
- Use with PCB thickness of .062" (1.60 mm) to .125" (3.18 mm)
- Pairs with most high-speed connector strips and arrays
GPPK
SureWare™ Guide Post, Mates with GPSK
Features
- Accommodates blind mating in perpendicular applications
- Mates with GPSK guide post socket
- Pairs with most high-speed connector strips and arrays
