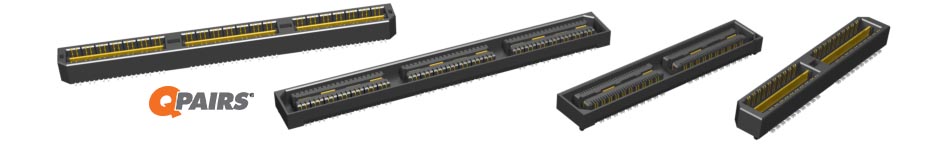

Q Pairs® Differential Pair Mezzanine Connectors
Samtec Q Pairs® differential pair mezzanine connectors are designed for high-speed board-to-board applications where signal integrity is essential.
QSH-DP
0.50 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair
Features
- Low profile 5 mm stack height
- Up to 80 differential pairs
- Up to 9.5 GHz / 19 Gbps
- 0.50 mm (.0197") pitch
QTH-DP
0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair
Features
- 0.50 mm (.0197") pitch
- Up to 9.5 GHz / 19 Gbps
- Up to 80 differential pairs
- Low profile 5 mm stack height
QSS-DP
0.635 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair
Features
- Low profile 5 mm stack height
- Up to 64 differential pairs
- Up to 8.5 GHz / 17 Gbps
- 0.635 mm (.025") pitch
QTS-DP
0.635 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair
Features
- 0.635 mm (.025") pitch
- Low profile 5 mm stack height
- Up to 64 differential pairs
- Up to 8.5 GHz / 17 Gbps
QSE-DP
0.80 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair
Features
- 0.80 mm (.0315") pitch
- Up to 8.5 GHz / 17 Gbps
- Up to 56 differential pairs
- Low profile 5 mm stack height
QTE-DP
0.80 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair
Features
- 0.80 mm (.0315") pitch
- Up to 8.5 GHz / 17 Gbps
- Up to 56 differential pairs
- Low profile 5 mm stack height
QSH-DP-RA
0.50 mm Q Pairs® High-Speed Ground Plane Socket Strip, Differential Pair, Right-Angle
Features
- 0.50 mm (.0197") pitch
- Guide post
QTH-DP-RA
0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair, Right-Angle
Features
- 0.50 mm (.0197") pitch
- Guide post
