Samtec offers the industry’s largest variety of board-to-board connectors. Popular options include high-speed mezzanine, edge card and backplane systems and high-density array systems. Samtec Board-to-Board SI Evaluation Kits provide system designers and SI engineers easy-to-use platforms for testing many of Samtec’s popular board-to-board connector products.
Each kit includes the evaluation platform, calibration board(s), technical documentation and test reports. Additionally, each kit is tested and verified by Samtec’s signal integrity experts before customer delivery.
SI Evaluation Kits: Board-to-Board
| Kit Name | Description | ||
|---|---|---|---|

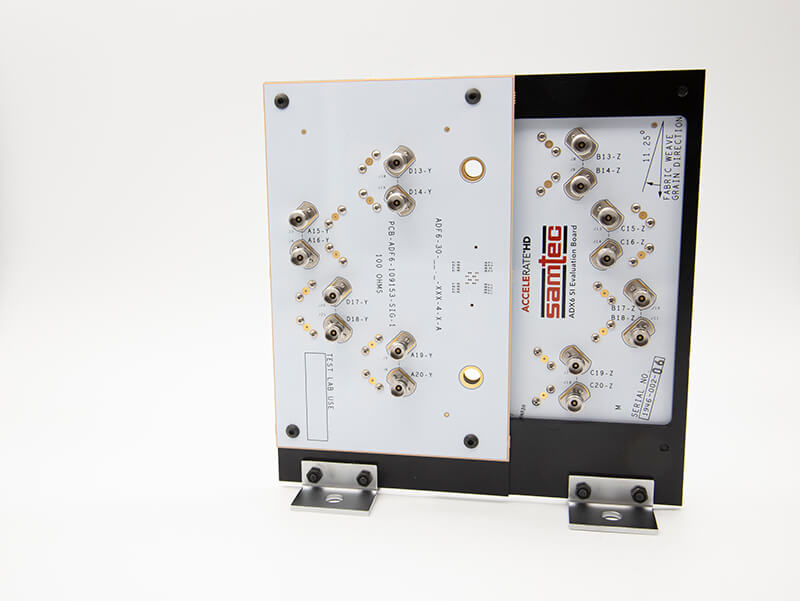

| AcceleRate® HD SI Evaluation Kit (REF-212056-X.XX-XXX) |
SI test platform for evaluating 0.635 mm pitch AcceleRate® HD high-density four row strips. |
|
|

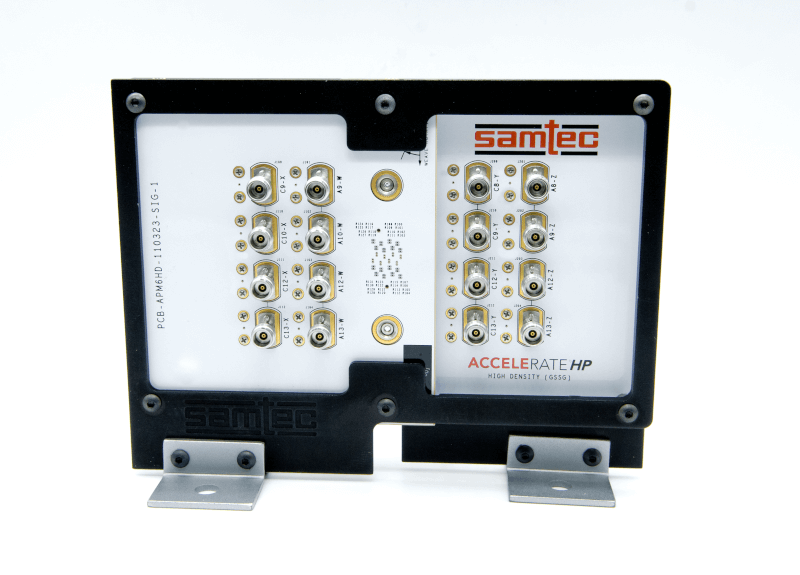

| AcceleRate® HP SI Evaluation Kit (REF-218313-X.XX-XXX) |
SI test platform for evaluating 0.635 mm pitch, 112 Gbps PAM4 AcceleRate® HP high-performance arrays. |
|
|
|

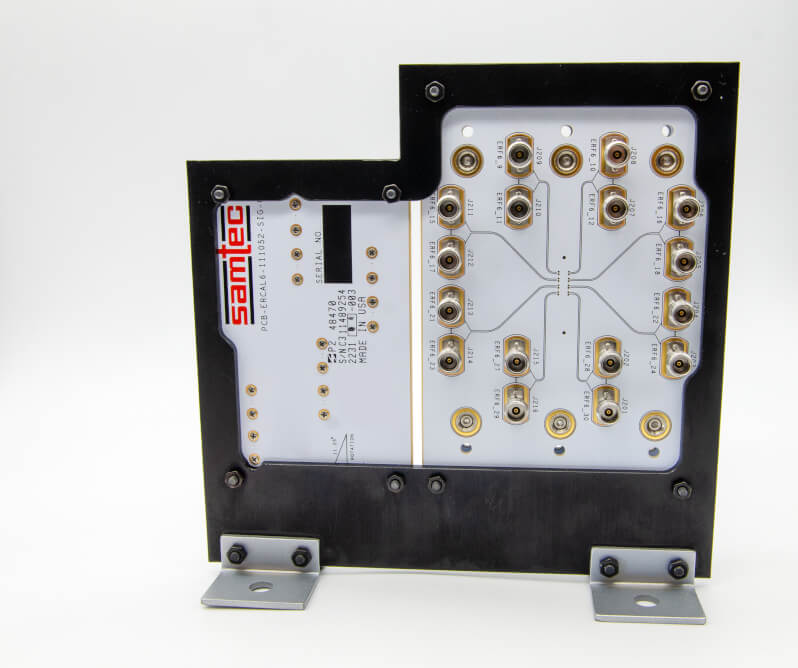

0.635 mm pitch Edge Rate® SI Evaluation Kit
(REF-224718-X.XX-XXX) |
SI test platform for evaluating 0.635 mm pitch Edge Rate® rugged high-speed strips. |
|
|
|

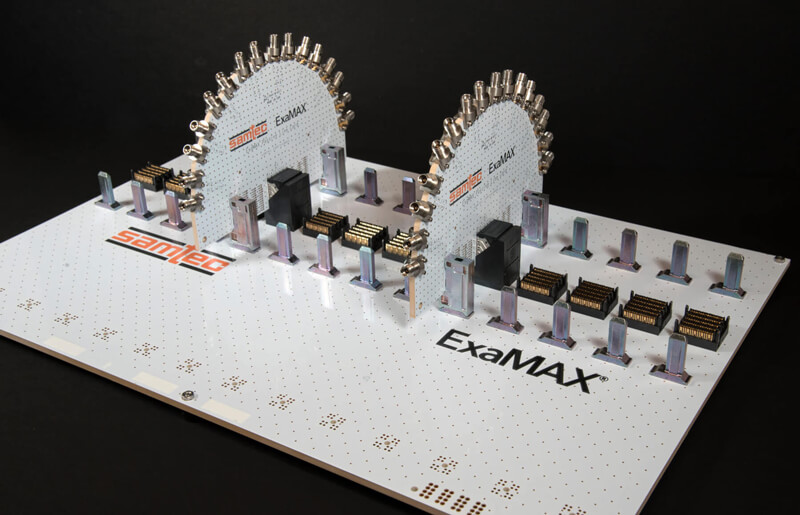

ExaMAX® Backplane SI Evaluation Kits (REF-205463-01) ExaMAX® SI Backplane (REF-200839-01) ExaMAX® SI Linecard (REF-200840-01) |
This SI test platform routes eight, high-precision differential pairs over a backplane using ExaMAX® connectors in a 4x10 configuration. It supports configurable backplane trace lengths via user-selected paddleboard placement. |
|
|
|

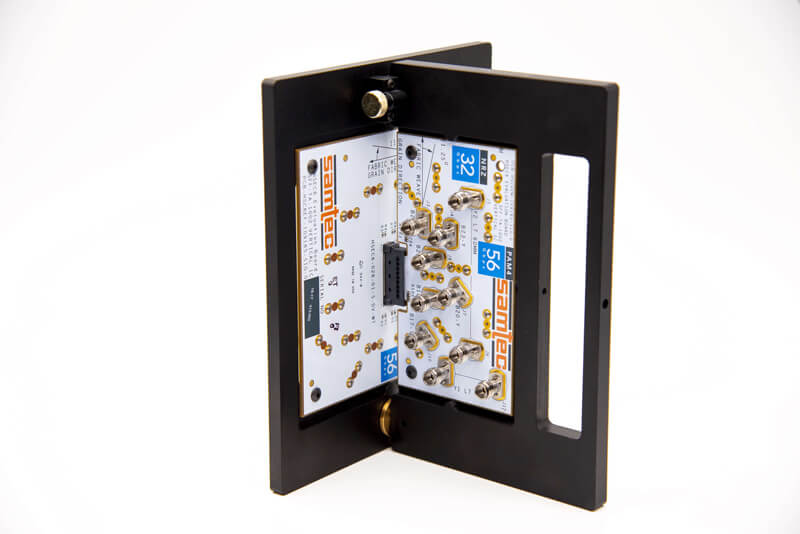

HSEC6-DV SI Evaluation Kit (REF-213543-X.XX-XX) |
SI test platform for evaluating 0.60 mm Edge Rate® vertical high-speed edge card connectors. |
|
|
|

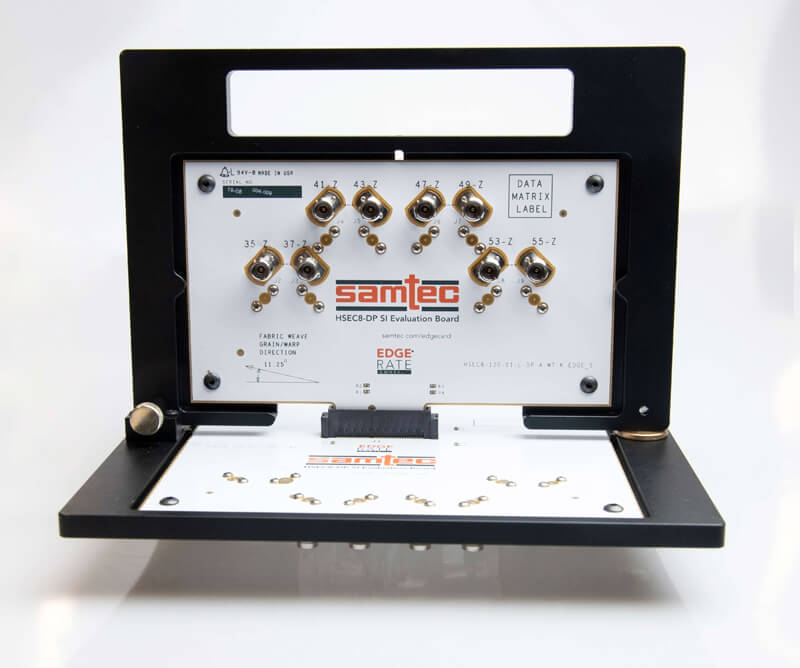

HSEC8-DP SI Evaluation Kit (REF-210637-X.XX-XX) |
SI test platform for evaluating 0.80 mm pitch Edge Rate® differential pair high-speed edge card connectors. |
|
|

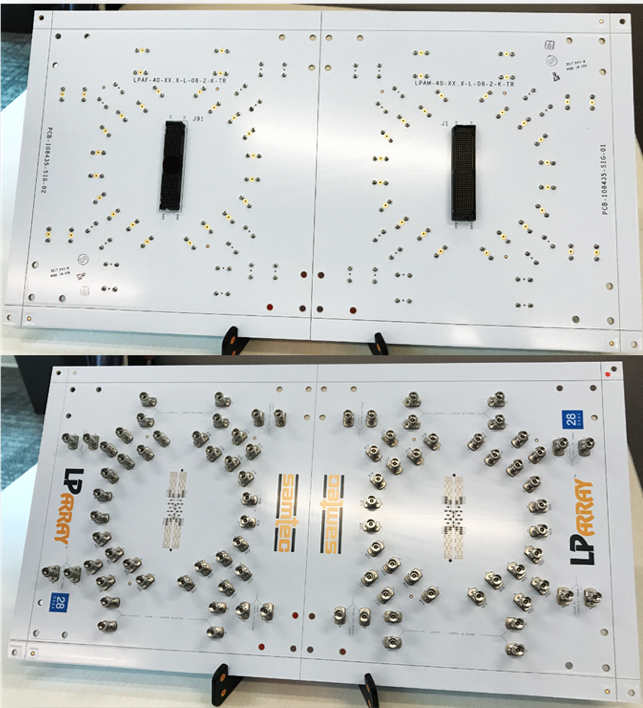

| LP Array™ SI Evaluation Kit (REF-200470-X.XX-X.XX-01) |
The LP Array™ SI Evaluation Kit routes twenty high-precision differential pairs in an LPAM / LPAF Products mated connector pair with user-selected stack heights and RF connector options. |
|
|

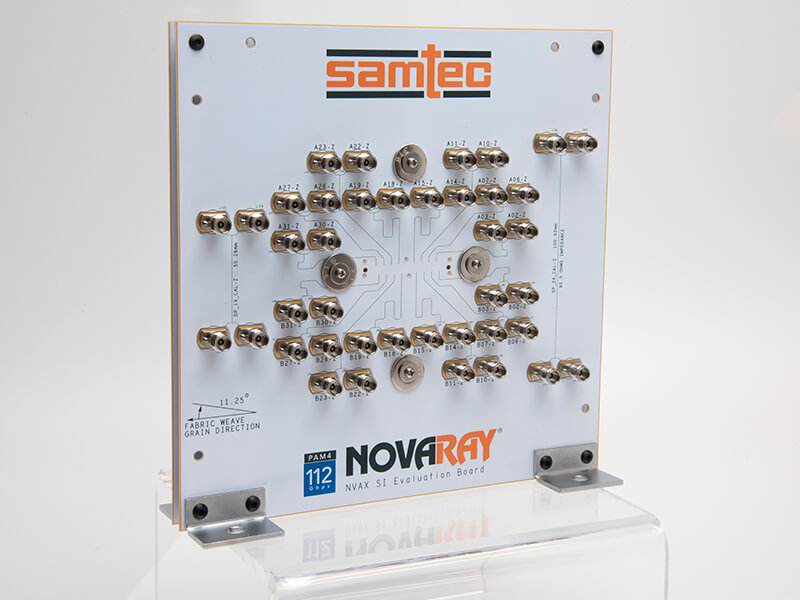

| NovaRay® SI Evaluation Kit (REF-212761-X.XX-XX) |
SI test platform for evaluating 0.80 mm pitch NovaRay® extreme density and performance connectors. |
|
|

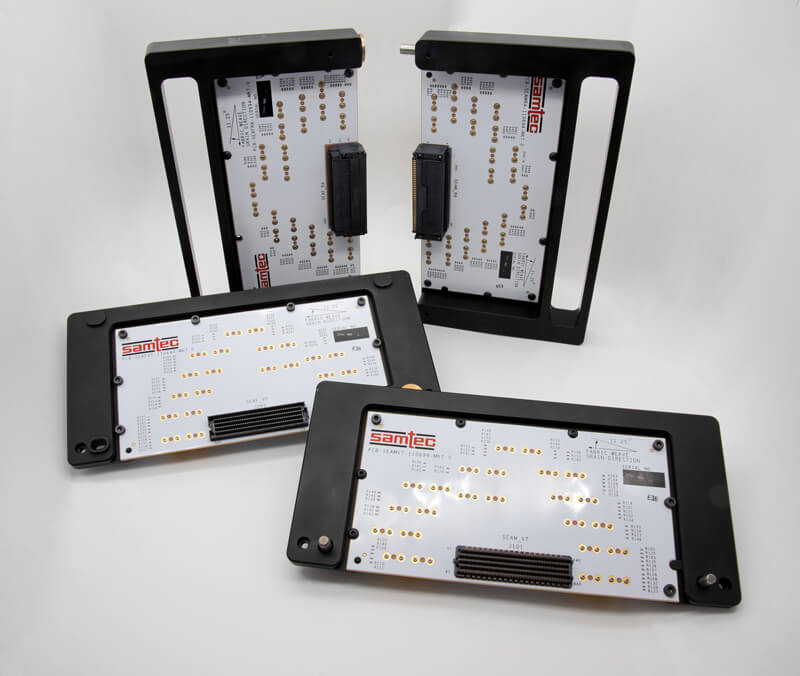

| SEARAY™ SI Evaluation Kit (REF-219213-X.XX-01) |
SI test platform for evaluating SEARAY™ high-density open-pin-field arrays. |
|
|

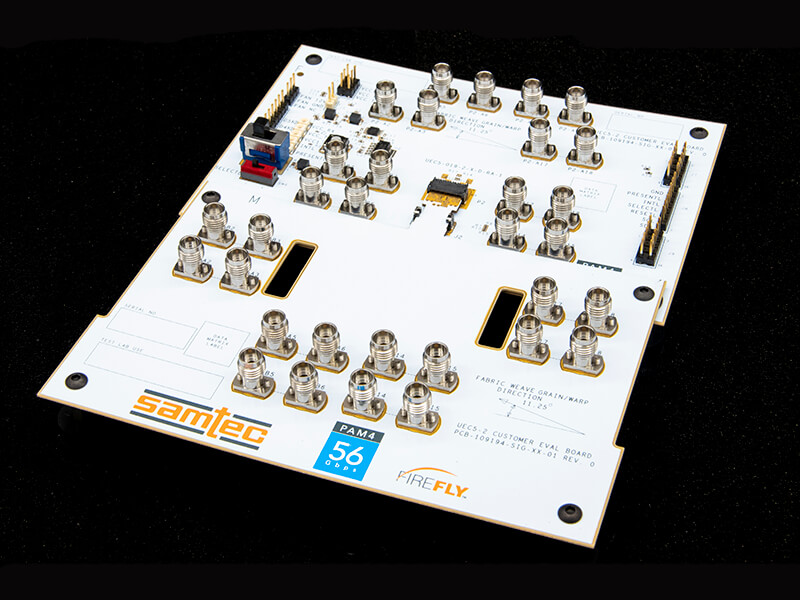

| UEC5-2 SI Evaluation Kit (REF-209372-X.XX-XX) |
SI test platform for evaluating 20+ Gbps FireFly™ edge card socket assembly. |
|
