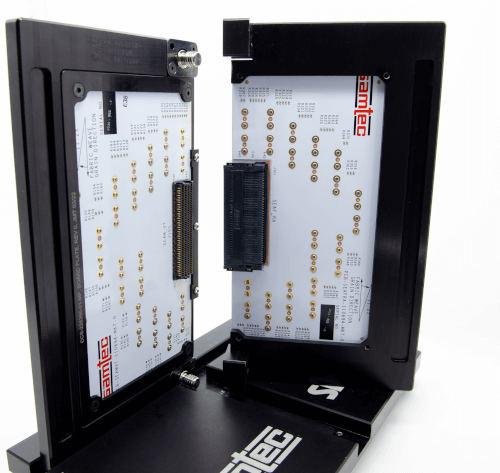

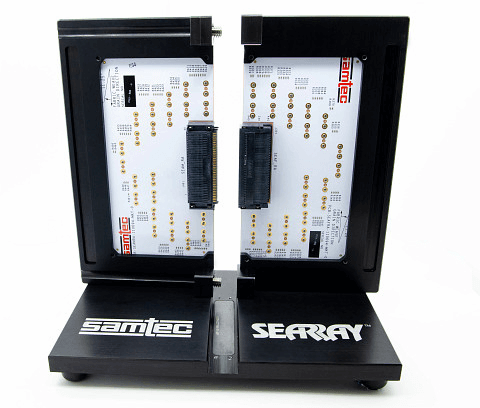

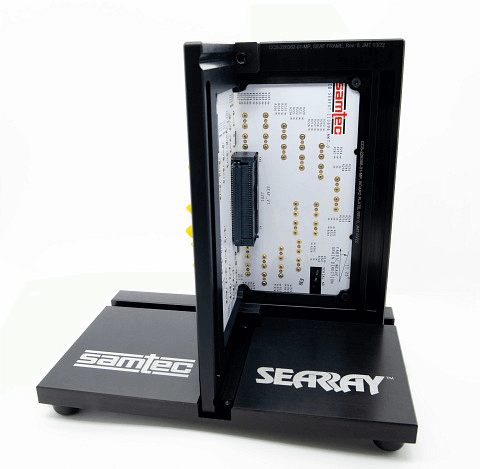

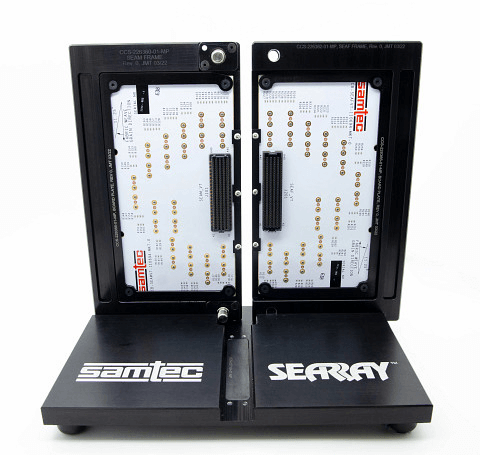

Samtec's SEARAY™ product family offers the industry’s largest portfolio of high-speed, high-density open-pin-field arrays. The SEARAY™ SI Evaluation Kit provides system designers and SI engineers an easy-to-use solution for testing a number of SEARAY™ connectors in mezzanine, coplanar and right-angle configurations.

The SEARAY™ SI Evaluation Kit (REF-219213-X.XX-01) delivers a high-quality system of four PCBs with robust mechanical design. Please contact Samtec’s technical experts at [email protected] for additional information.

• Four PCB system with compact form factor
• One PCB contains SEAM series connector (SEAM-40-02.0-L-10-A-K-TR)
• Second PCB contains SEAM-RA series connector (SEAM-40-01-L-10-2-RA-K-TR)
• Third PCB contains SEAF series connector (SEAF-40-05.0-L-10-2-A-K-TR)
• Fourth PCB contains SEAF-RA series connector (SEAF-40-01-L-10-2-RA-K-TR)
• Routes high-speed differential pairs (11 total) and single-ended signals (2 total) from SEARAY™ connectors to high-precision RF connectors
• Supports multiple high-precision RF connector options
• Optimized SI performance via Samtec Final Inch® BOR PCB trace routing
• Enable time domain measurements via direct connection to TDR/TDTs
• Enable frequency domain measurements via direct connection to VNAs
