FAMILY OVERVIEW
The Q Strip® connectors have surface mount signal contacts as well as a surface mount ground plane between the two rows of signals for improved electrical performance. Mated sets of the Q Strip® connectors are available in 8 different stack heights from 5 mm (.197") to 30 mm (1.180"). Options include guide posts for blind mate scenarios as well as alignment pins and locking clips for proper connector placement before reflow.

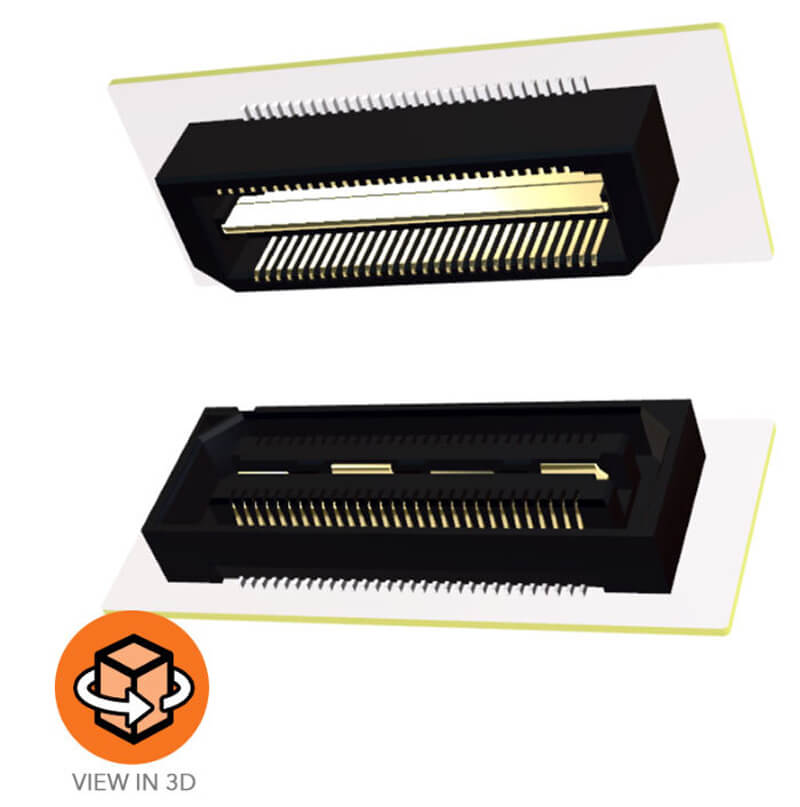

Q Strip® Product Explorer
QSH
0.50 mm Q Strip® High-Speed Ground Plane Socket Strip
Features
- 0.50 mm (.0197") pitch
- Up to 300 positions
- 5 mm - 30 mm stack heights
- 25 Gbps performance
- Extended Life Product™ (E.L.P.™)
QTH
0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip
Features
- 0.50 mm (.0197") pitch
- Up to 300 positions
- 5 mm - 30 mm stack heights
- 25 Gbps performance
- Extended Life Product™ (E.L.P.™)
QSS
0.635 mm Q Strip® High-Speed Ground Plane Socket Strip
Features
- 0.635 mm (.025") pitch
- Up to 9.5 GHz / 19 Gbps
- Up to 250 positions
- 5 mm - 16 mm stack heights
- Extended Life Product™ (E.L.P.™)
QTS
0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip
Features
- 0.635 mm (.025") pitch
- Up to 9.5 GHz / 19 Gbps
- Up to 250 positions
- 5 mm - 16 mm stack heights
- Extended Life Product™ (E.L.P.™)
QSE
0.80 mm Q Strip® High-Speed Ground Plane Socket Strip
Features
- 0.80 mm (.0315") pitch
- Up to 200 positions
- 5 mm - 30 mm stack heights
- Extended Life Product™ (E.L.P.™)
- Samtec 28+ Gbps Solution
QTE
Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch
Features
- 0.80 mm (.0315") pitch
- Up to 200 positions
- 5 mm - 30 mm stack heights
- Extended Life Product™ (E.L.P.™)
- Samtec 28+ Gbps Solution
QTS-RA
0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip, Right-Angle
Features
- 0.635 mm (.025") pitch
- Guide post option
QSS-RA
0.635 mm Q Strip® High-Speed Ground Plane Socket Strip, Right-Angle
Features
- 0.635 mm (.025") pitch
- Guide post option
- Up to 200 positions
- Up to 4.5 GHz / 9 Gbps
GPSK
SureWare™ Right-Angle Guide Post Socket
Features
- Accommodates blind mating in perpendicular applications
- Mates with GPPK Series guide post
- Use with PCB thickness of .062" (1.60 mm) to .125" (3.18 mm)
- Pairs with most high-speed connector strips and arrays
GPPK
SureWare™ Guide Post, Mates with GPSK
Features
- Accommodates blind mating in perpendicular applications
- Mates with GPSK guide post socket
- Pairs with most high-speed connector strips and arrays
