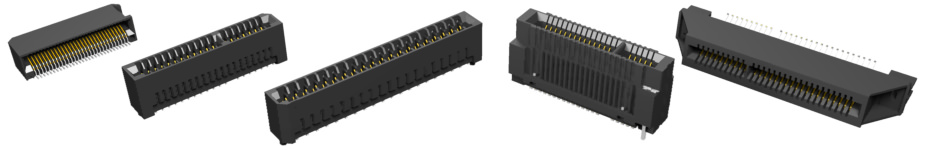

Micro Edge Card Systems
Micro pitch edge card sockets in a variety of centerlines and orientations, including 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, and 2.00 mm, vertical, right-angle, and edge mount, as well as surface mount and through-hole
MEC8-DV
0.80 mm Mini Edge Card Connector, Vertical
Features
- 0.80 mm (.0315") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 140 pins
- Optional alignment pin
MEC8-VP
0.80 mm Mini Edge Card Connector, Vertical Press-Fit
Features
- Press-fit tails on staggered pattern
- 0.80 mm (.0315") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 80 pins
MEC8-RA
0.80 mm Mini Edge Card Connector, Right-Angle
Features
- 0.80 mm (.0315") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 100 pins
- Optional tape and reel packaging
MEC8-EM
0.80 mm Mini Edge Card Connector, Edge Mount
Features
- 0.80 mm (.0315") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 140 pins
MEC6-DV
0.635 mm Mini Edge Card Connector, Vertical
Features
- 0.635 mm (.025") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 140 pins
- Standard alignment pins
MEC6-RA
0.635 mm Mini Edge Card Connector, Right-Angle
Features
- 0.635 mm (.025") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 100 pins
- Standard alignment pins
MEC1
1.00 mm Mini Edge Card Socket, Vertical
Features
- 1.00 mm (.0394") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 140 pins polarized
- Optional alignment pin
MEC1-RA
1.00 mm Mini Edge Card Socket, Right-Angle
Features
- 1.00 mm (.0394") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 140 pins polarized
MEC1-EM
1.00 mm Mini Edge Card Socket, Edge Mount
Features
- 1.00 mm (.0394") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 140 pins polarized
MECF-DV
.050" Mini Edge Card Connector, Vertical
Features
- .050" (1.27 mm) pitch
- Accepts .062" (1.60 mm) and .093" (2.36 mm) thick cards
- Double row design up to 100 pins polarized
- Rugged weld tab option
- Samtec 28+ Gbps Solution
MEC2-DV
2.00 mm Mini Edge Card Connector, Vertical
Features
- 2.00 mm (.0787") pitch
- Accepts .062" (1.60 mm) and .093" (2.36 mm) thick cards
- Double row design up to 100 pins polarized
- Performance to 14 Gbps
- Rugged weld tab option
MEC5-DV
0.50 mm Mini Edge Card Connector, Vertical
Features
- MEC5 Processing Recommendations Video
- 0.50 mm (.0197") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 160 pins
- 56 Gbps PAM4 performance
- Optional board lock and weld tab
MEC5-RA
0.50 mm Mini Edge Card Connector, Right-Angle
Features
- MEC5 Processing Recommendations Video
- 0.50 mm (.0197") pitch
- Accepts .062" (1.60 mm) thick cards
- Double row design up to 160 pins
- Optional board lock and weld tab
