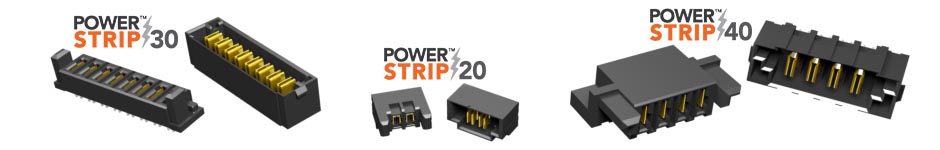

PowerStrip™ High-Power Systems
High-power systems for performance up to 58.7 A per contact.
FEATURES
- Current Rating: 23 A - 58.7 A per power blade
- Right-angle and vertical orientations
- Power/Signal combos available
- Cable assemblies available
- "Hinged" for unique mating in any orientation from 0° to 90° and space confined applications
- Optional locking clips or screw downs
- Ideal for blind mating
- Space saving
- Up to 10 total power blades
PES
.250" PowerStrip™/40 A High-Power Socket Strip
Features
- .250" (6.35 mm) pitch
- High-power dual blade contact
- Rugged screw down option
- Current rating to 27.6A
PET
.250" PowerStrip™/40 A High-Power Terminal Strip
Features
- .250" (6.35 mm) pitch
- High-power dual blade contact
- 2 to 8 power positions
- Current rating to 27.6A
MPS
5.00 mm PowerStrip™/30 A Dual Leaf Socket Strip
Features
- 5.00 mm (.1969") pitch
- High-power dual blade contact
- 2 to 8 power positions
- Current rating to 24.7A
MPT
5.00 mm PowerStrip™/30 A Dual Blade Terminal Strip
Features
- 5.00 mm (.1969") pitch
- High-power dual blade contact
- 2 to 8 power positions
- Current rating to 24.7A
MPPT
5.00 mm PowerStrip™/30 A Hermaphroditic Terminal/Socket Strip
Features
- 5.00 mm (.1969") pitch
- High-power dual blade contact
- Rugged screw down option
- Current rating to 20.5A
FMPS
5.00 mm PowerStrip™/30 A "Hinging" Power Socket Strip
Features
- 5.00 mm (.1969") pitch
- High-power dual blade contact
- Current rating to 22.9A
FMPT
5.00 mm PowerStrip™/30 A "Hinging" Power Terminal Strip
Features
- 5.00 mm (.1969") pitch
- High-power dual blade contact
- Current rating to 22.9A
UPS
.150" PowerStrip™/20 A Dual Blade Power Socket Strip
Features
- .150" (3.81 mm) pitch
- High-power dual blade contact
- Optional press fit tails
- Current rating to 20.1A
UPT
.150" PowerStrip™/20 A Dual Blade Power Terminal Strip
Features
- .150" (3.81 mm) pitch
- High-power dual blade contact
- Optional press fit tails
- Current rating to 20.1A
UPPT
.150" PowerStrip™/20 A Hermaphroditic Terminal/Socket Strip
Features
- .150" (3.81 mm) pitch
- High-power dual blade contact
- Rugged screw down option
- Current rating to 19.8A
