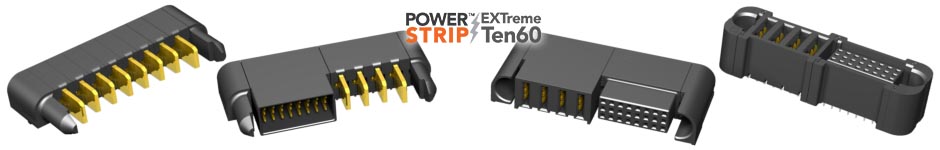

EXTreme Ten60Power™ 60 Amp Power Connectors
60 amp power connectors featuring a modular high power and signal combo for coplanar and right-angle board-to-board applications. Designed as a high-current and lower profile interconnect than existing connectors, EXTreme Ten60Power™ interconnects provide maximum current-to-length ratio packaged in a low 10 mm height housing that enhances airflow within the system.
FEATURES
- Performance to 60 A per power blade
- Rugged 10 mm low profile design (right-angle orientation)
- 3 or 5 signal rows in the same form factor
- Available with 0 to 40 signal pins
- Up to 20 total DC power blades or 12 total AC power blades
- AC-DC power combos and split power options available
- Press-fit tails option for ease of board termination (ET60S only)
- Modules can be configured to accommodate most any design
- For coplanar or perpendicular applications
- Hot plug option available
ET60S
EXTreme Ten60Power™ 60 Amp Signal/Power Combo
Features
- 60 A per power blade
- Vertical and right-angle orientations
- 3 or 5 signal rows in the same form factor
- 0 to 40 total signal pins
- Up to 20 total DC power blades or 12 total AC power blades
- AC-DC power combos and split power options available
- Rugged low profile design
- Optional press fit tails
ET60T
EXTreme Ten60Power™ 60 Amp Signal/Power Combo
Features
- 60 A per power blade
- 10.00 mm low profile design (right-angle)
- 3 or 5 signal rows in the same form factor
- 0 to 40 total signal pins
- Up to 20 total DC power blades or 12 total AC power blades
- AC-DC power combos and split power options available
- Right-angle
