Ganged Micro Scale RF Jacks, Plugs, and Cables
Samtec's ganged micro-miniature high-performance RF jacks, plugs, and cables are on a 5.00 mm pitch and available as board-to-board or cable-to-board systems.
GRF1-C
5.00 mm 50 Ohm Ganged Micro-Miniature RF Plug, Cable Assembly
Features

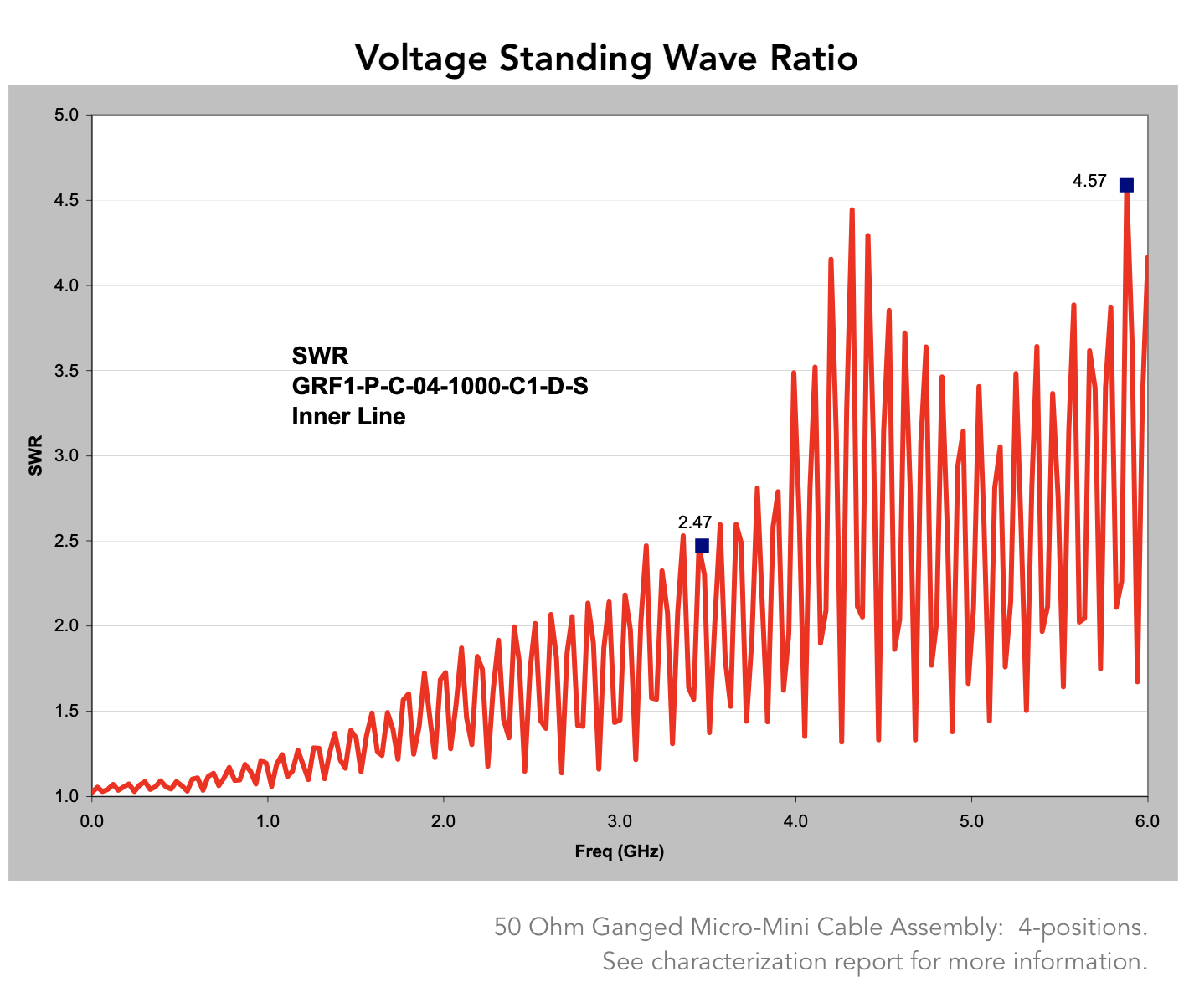

- VSWR: See GRF1-C Graph
- Impedance: 50 Ω
- Bend Radius: 12.8 mm Min
- Capacitance: 96 pF/meter
- Operating Temp: -50 ºC to +165 ºC
- Frequency Range: 6 GHz max (cable & connector dependent)

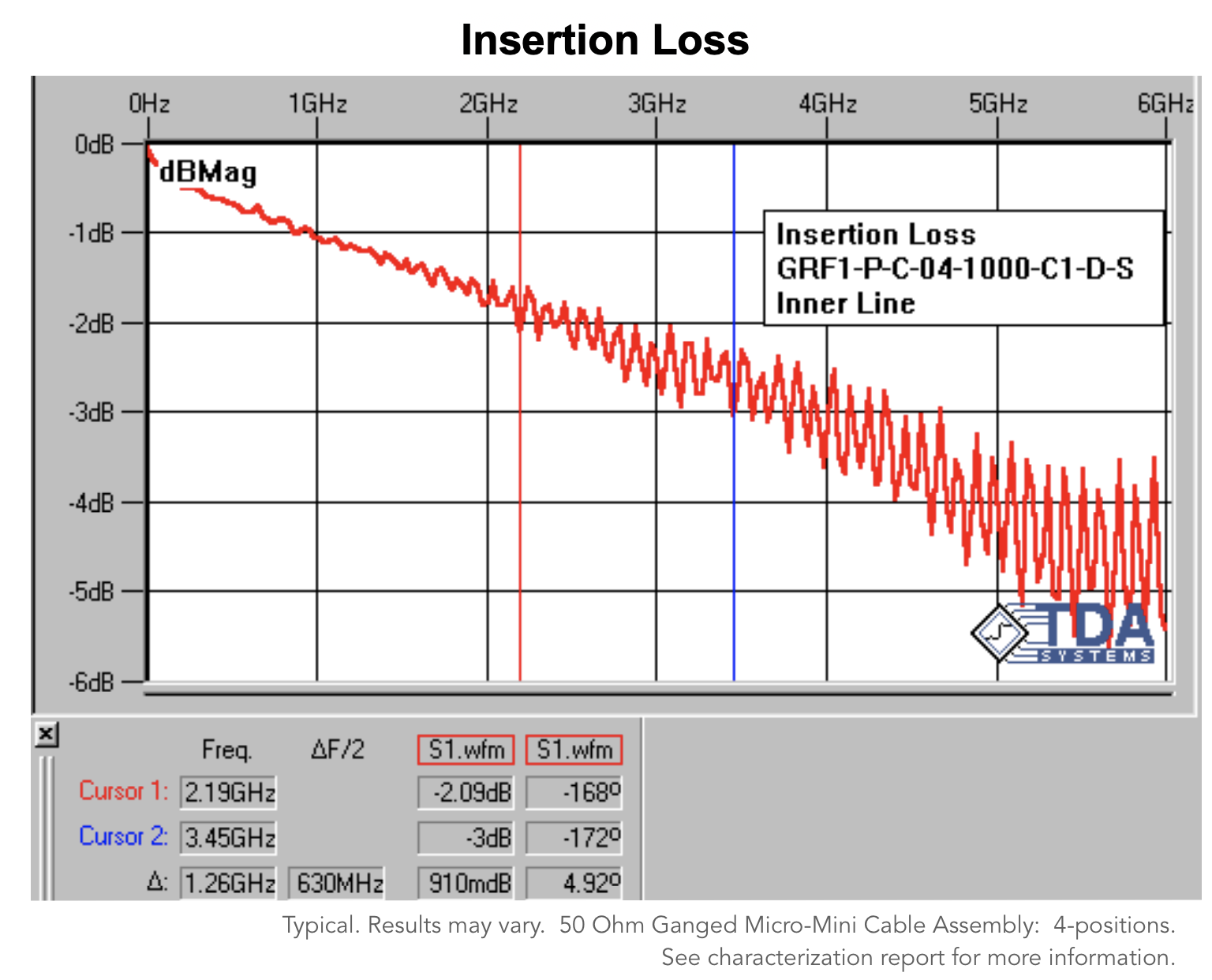

- Insertion Loss: See GRF1-C Graph
- 24 AWG, RG 316 cable
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
GRF1H-C
5.00 mm 50 Ohm Ganged Hybrid Micro-Miniature RF Plug, Cable Assembly
Features
- Impedance: 50 Ω
- Bend Radius: 12.8 mm Min
- Capacitance: 96 pF/meter
- Operating Temp: -40 ºC to +90 ºC
- Frequency Range: 6 GHz max (cable & connector dependent)
- 24 AWG, RG 316 cable
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
- Optional captive panel screws
- Double ended
GRF7-C
5.00 mm 75 Ohm Ganged Micro-Miniature RF Plug, Cable Assembly
Features
- Impedance: 75 Ω
- Bend Radius: 10.2 mm Min
- Capacitance: 64 pF/meter
- Operating Temp: -50 ºC to +165 ºC
- Frequency Range: 6 GHz max (cable & connector dependent)
- 28 AWG, RG 179 cable
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
- Optional captive panel screws
- Single or double ended assembly options
GRF7H-C
5.00 mm 75 Ohm Ganged Hybrid Micro-Miniature RF Plug, Cable Assembly
Features
- Impedance: 75 Ω
- Bend Radius: 10.2 mm Min
- Capacitance: 64 pF/meter
- Operating Temp: -50 ºC to +165 ºC
- Frequency Range: 6 GHz max (cable & connector dependent)
- 28 AWG, RG 179 cable
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
- Optional captive panel screws
- Double ended
GRF1-J
5.00 mm 50 Ohm Ganged Micro-Miniature RF Jack, PCB Mount
Features
- Performance: up to 5.31 GHz / 10.7 Gbps at 152.00 mm
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
- Optional threaded inserts
GRF1-P
5.00 mm 50 Ohm Ganged Micro-Miniature RF Plug, PCB Mount
Features
- Performance: up to 5.31 GHz / 10.7 Gbps at 152.00 mm
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
GRF7-J
5.00 mm 75 Ohm Ganged Micro-Miniature RF Jack, PCB Mount
Features
- Performance: up to 5.31 GHz / 10.7 Gbps at 152.00 mm
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
- Optional threaded inserts
GRF7-P
5.00 mm 75 Ohm Ganged Micro-Miniature RF Plug, PCB Mount
Features
- Performance: up to 5.31 GHz / 10.7 Gbps at 152.00 mm
- High-performance, rugged contact
- 5.00 mm (.1969") pitch
