IsoRate® High-Isolation RF Connectors and Cables
These IsoRate® high-isolation rf connectors and cables offer substantial savings over traditional RF connectors at approximately half the cost.
IJ5C
4.00 mm IsoRate® 50 Ohm High-Isolation RF Cable Assembly
Features
- Impedance: 50 Ω
- Frequency Range: 9.5 GHz max
- Two Cable Options: 1) Samtec 26 AWG, high-temp micro coax (CTB-2650F-01), or 2) RG 316 (24 AWG)

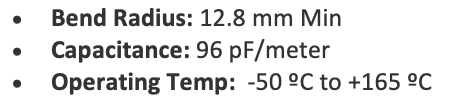

- RG 316 (24 AWG): Additional Specifications

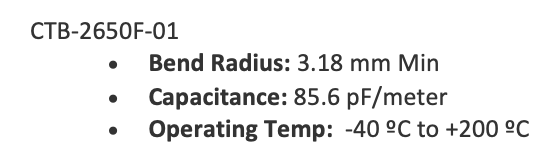

- Samtec 26 AWG, high-temp micro coax: Additional Specifications

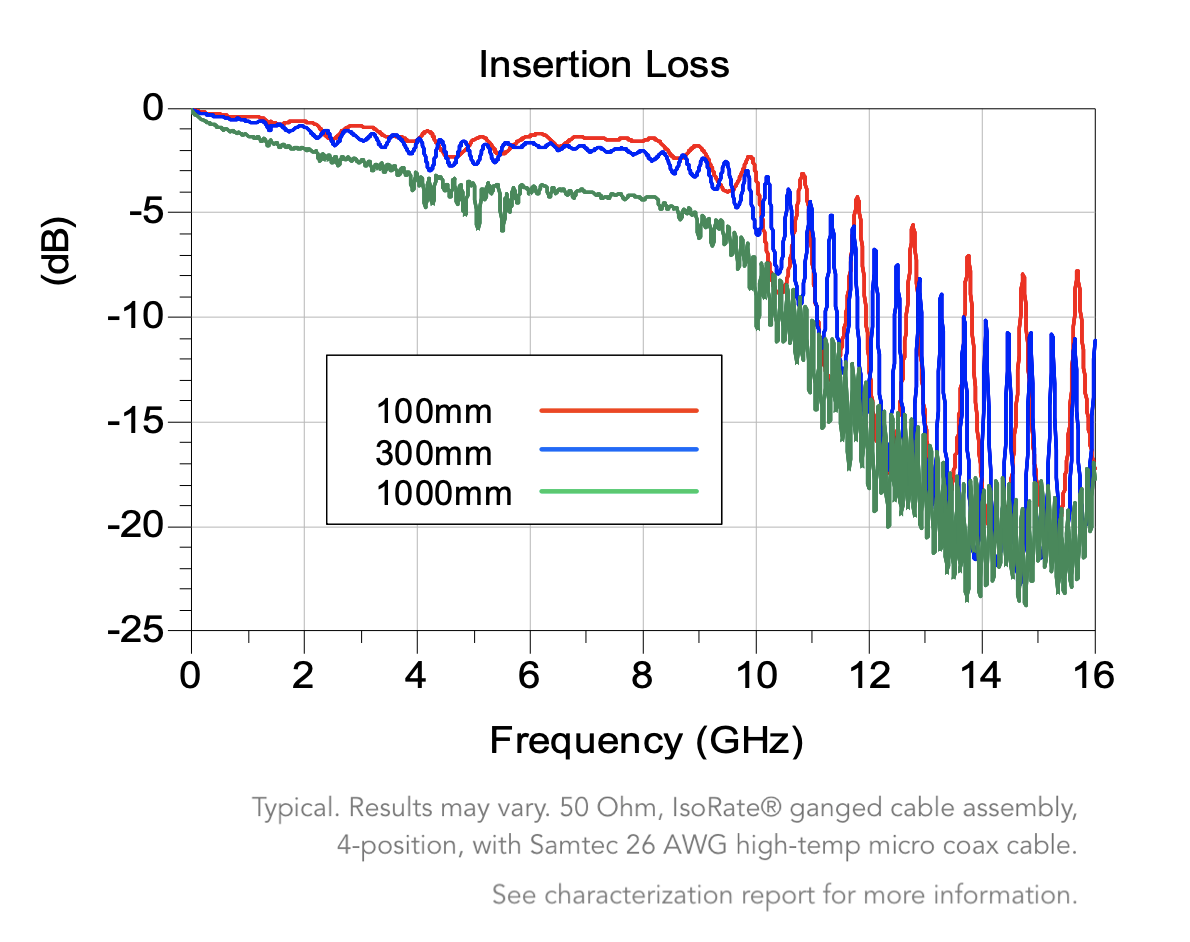

- Insertion Loss (Samtec 26 AWG): See IJ5C Graph
- 90% performance at 50% cost of traditional RF
- 4.00 mm (.1575") pitch
- Rugged positive latching
IJ5H
4.00 mm IsoRate® 50 Ohm High-Isolation Hybrid Ganged RF Cable Assembly
Features
- Insertion Loss: See IJ5H Report
- Impedance: 50 Ω
- Bend Radius: 12.8 mm Min
- Capacitance: 96 pF/meter
- Operating Temp: -50 ºC to +165 ºC
- Frequency Range: 9.5 GHz max
- Insertion Loss: See IJ5H Report
- 24 AWG, RG 316 cable
- 90% performance at 50% cost of traditional RF
- 4.00 mm (.1575") pitch
IJ5
4.00 mm IsoRate® 50 Ohm High-Isolation RF Jack Strip
Features
- Performance: Up to 9.5 GHz / 19 Gbps
- 90% performance at 50% cost of traditional RF
- 4.00 mm (.1575") pitch
- Rows: Single
- Positions: 1, 2, 4, 6, 8, 12, 16
- Stack height: 10.00 mm
IP5
4.00 mm IsoRate® 50 Ohm High-Isolation RF Plug Strip
Features
- Performance: Up to 9.5 GHz / 19 Gbps
- 90% performance at 50% cost of traditional RF
- 4.00 mm (.1575") pitch
- Rows: Single
- Positions: 1, 2, 4, 6, 8, 12, 16
- Stack height: 10.00 mm
