Power
Systems
Power Systems
Small Form Factors • 10–60 a Per Pin/Blade • Design Flexibility
Samtec’s flexible power solutions are available as high power only or power/signal combinations up to 60 Amps with high-density power blades in small form factors. Board-to-board and discrete wire cable assemblies available.
With up to 18 Amps/blade in an ultra micro footprint, mPOWER® connectors provide incredible design flexibility as a power-only system or a two piece system for power/signal applications when used with Samtec’s high-speed connector systems. Micro Mate® and Power Mate® systems feature individually shrouded contacts for electrical and mechanical protection. High power solutions up to 60 Amps/blade feature high density blades in a small form factor, vertical or right-angle orientations, and power-only, power/signal combinations or split power options.

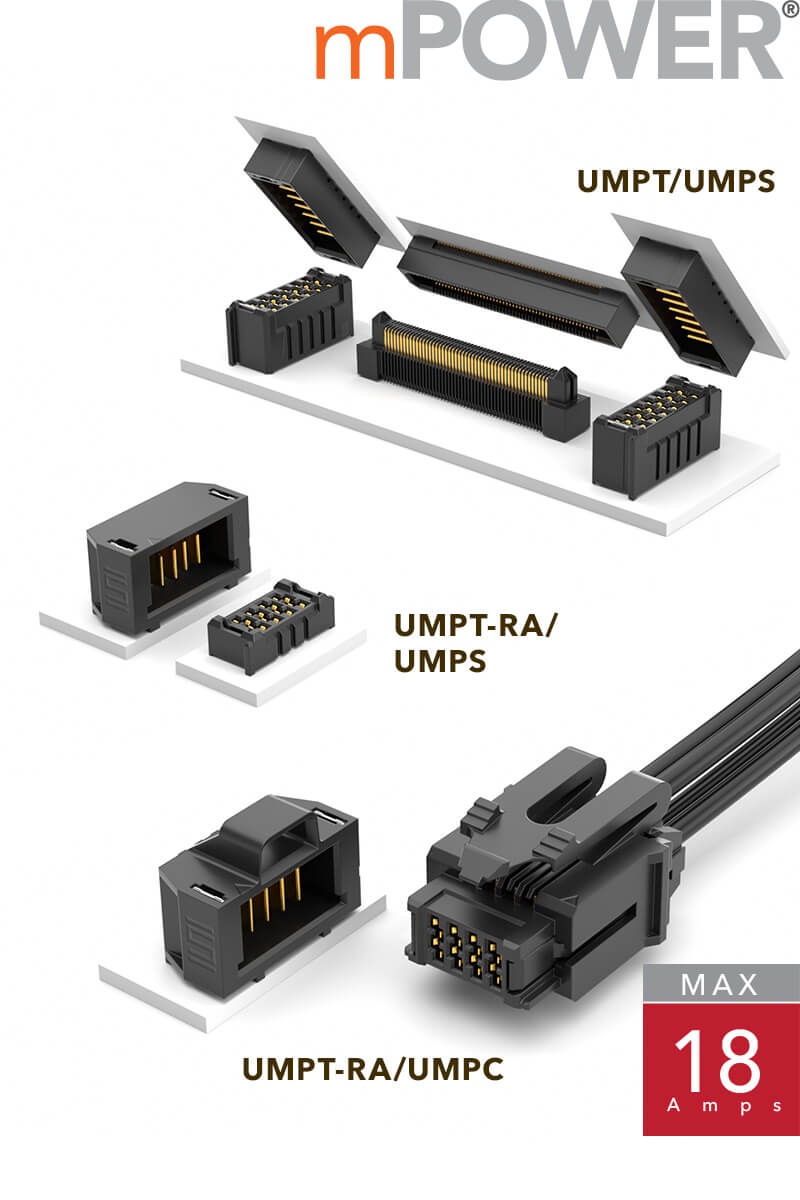

mPOWER® Ultra Micro Power Connectors2mm Pitch Power Connectors, mPOWER® Ultra Micro Power Connectors
Micro 2.00 mm pitch power blade interconnects with up to 18 Amps for board-to-board, cable-to-board and board-to-board applications.
Features
- One product family that supports cable-to-board, cable-to-cable and cable-to-panel applications
- Up to 18 A per blade
- 40% space savings compared to traditional power systems

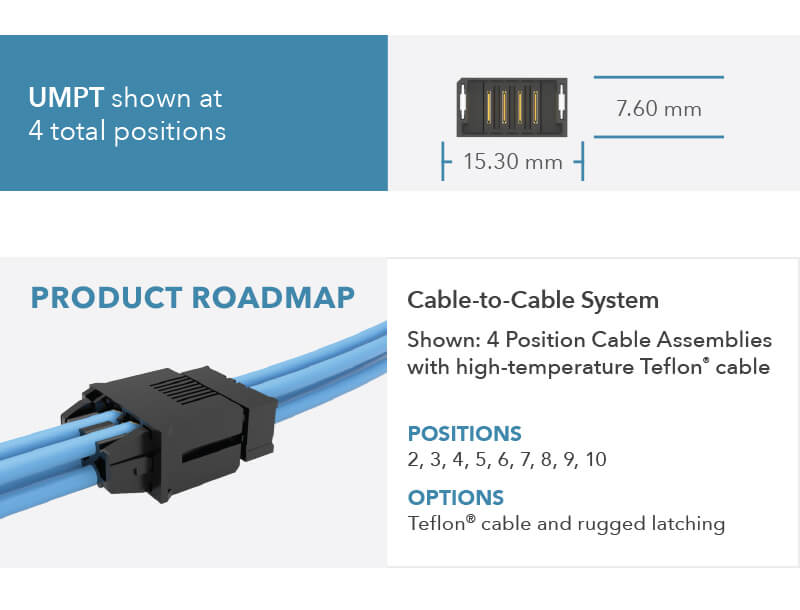

- 2 – 10 power blades on a 2.00 mm pitch
- 5 mm to 16 mm, 18 mm & 20 mm stack heights
- Discrete wire cable assemblies, with rugged latching, simplify board layout and deliver power directly to active components in the system

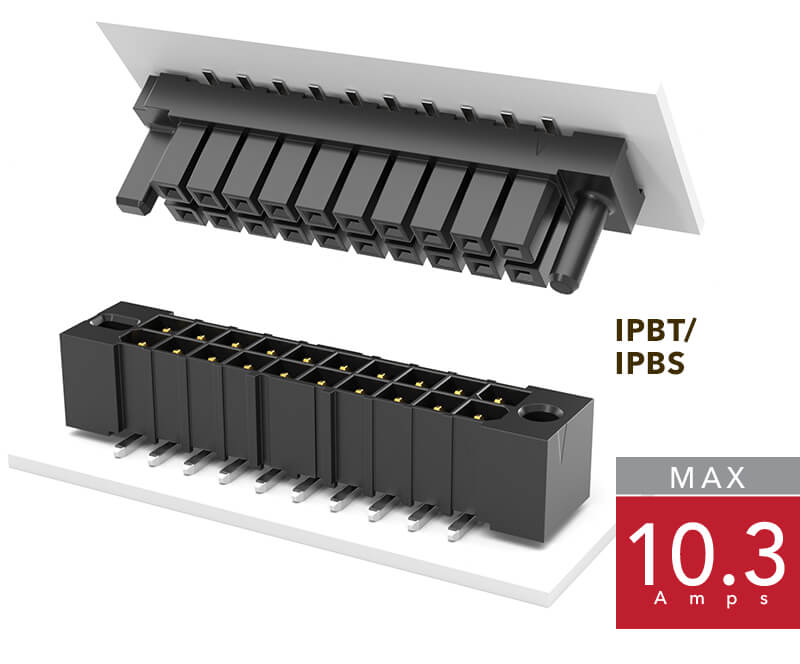

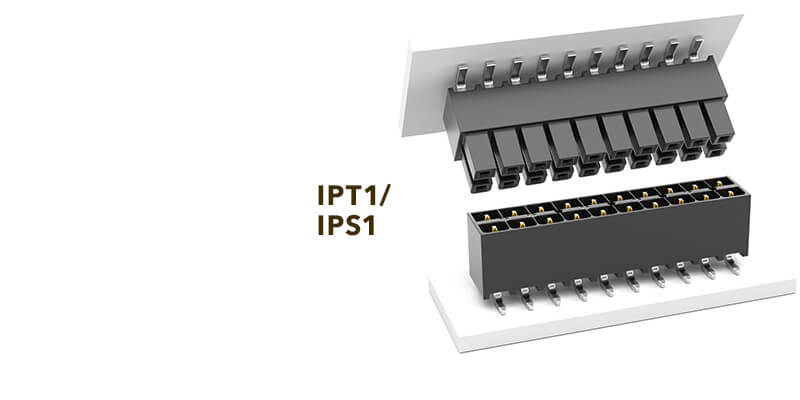

Power Mate® and Mini Mate® SystemsHigh Power Isolated Connectors, Power Mate® and Mini Mate® Systems
High power isolated connectors, board-to-board power socket and terminal strips with individually shrouded contacts.
Features
- Power Mate® system with polarized guide posts
- Mini Mate® system with reliable Tiger Buy™ contacts
- Individually shrouded contacts
- Elevated stack heights

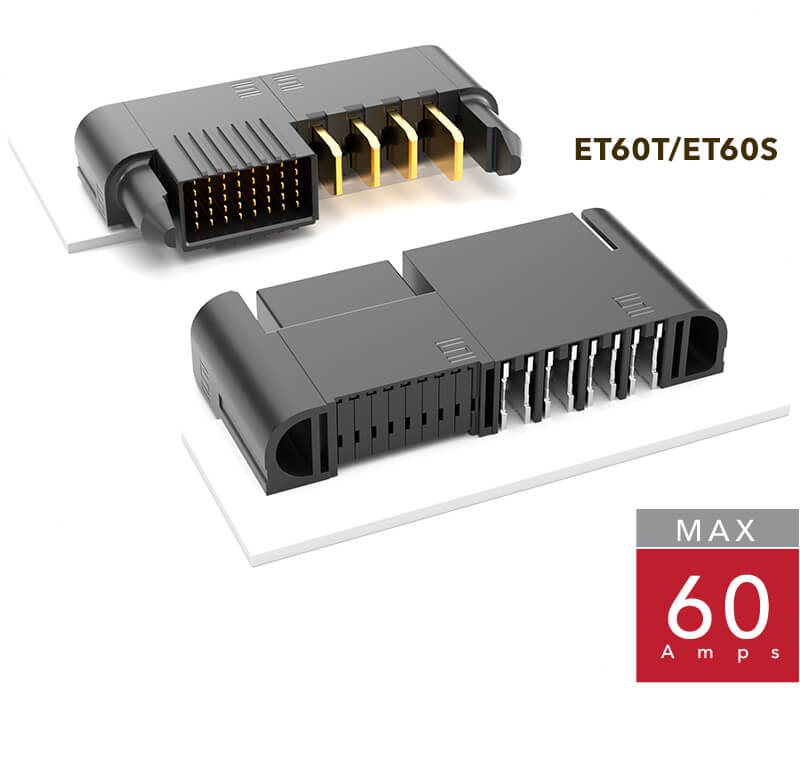

EXTreme Ten60Power™EXTreme Ten60Power™ 60 Amp Power Connectors
60 amp power connectors featuring a modular high power and signal combo for coplanar and right-angle board-to-board applications. Designed as a high-current and lower profile interconnect than existing connectors, EXTreme Ten60Power™ interconnects provide maximum current-to-length ratio packaged in a low 10 mm height housing that enhances airflow within the system.
Features
- Performance to 60 A per power blade
- Rugged 10 mm low profile design (right-angle orientation)
- 3 or 5 signal rows in the same form factor
- Available with 0 to 40 signal pins
- Up to 20 total DC power blades or 12 total AC power blades
- AC-DC power combos and split power options available
- Press-fit tails option for ease of board termination (ET60S only)
- Modules can be configured to accommodate most any design
- For coplanar or perpendicular applications
- Hot plug option available
EXTreme LPHPower™EXTreme LPHPower™
High-power, low profile system.
Features
- Performance to 30 A per power blade
- Extremely low 7.50 mm profile (right-angle)
- Double stacked power blades for high-density
- Socket mates with standard .062" (1.60 mm) PCB card

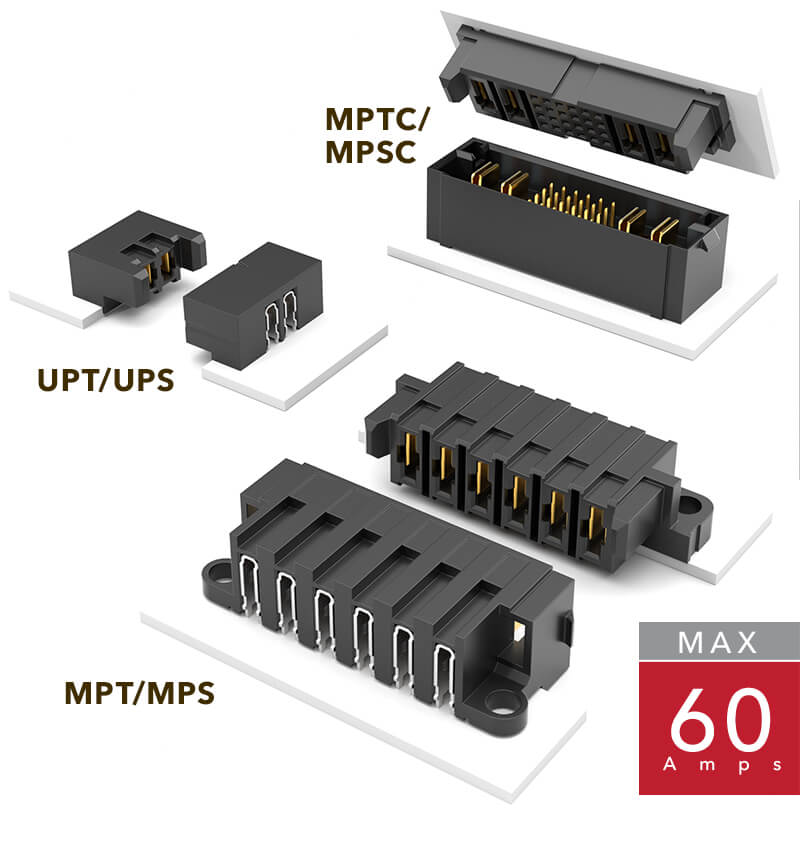

PowerStrip™ High-Power SystemsPowerStrip™ High-Power Systems
High-power systems for performance up to 58.7 A per contact.
Features
- Current Rating: 23 A - 58.7 A per power blade
- Right-angle and vertical orientations
- Power/Signal combos available
- Cable assemblies available
- "Hinged" for unique mating in any orientation from 0° to 90° and space confined applications
- Optional locking clips or screw downs
- Ideal for blind mating
- Space saving
- Up to 10 total power blades
