Precision RF Cable Assemblies & Connectors
Complete RF Interconnect Solutions
50 Ω Cables & Connectors • 75 Ω Cables & Connectors • Original Solutions
As a manufacturer of a broad line of electronic interconnects, Samtec offers full RF solution capabilities. In addition to high-frequency precision RF and high-performance test systems, Samtec's full line includes:
-
Micro High-Frequency U.FL and W.FL
-
50 Ω and 75 Ω cable assemblies, cable connectors and board level interconnects
-
Ganged and high isolation cable systems
-
100 Ω shielded twisted pair cable assemblies
-
Micro-mini interconnects
-
Non-magnetic RF solutions
-
12G-SDI Broadcast Video solutions
Samtec is the service leader in the industry with the resources and willingness to provide technical support for launch optimization, simulation and test & measurement.

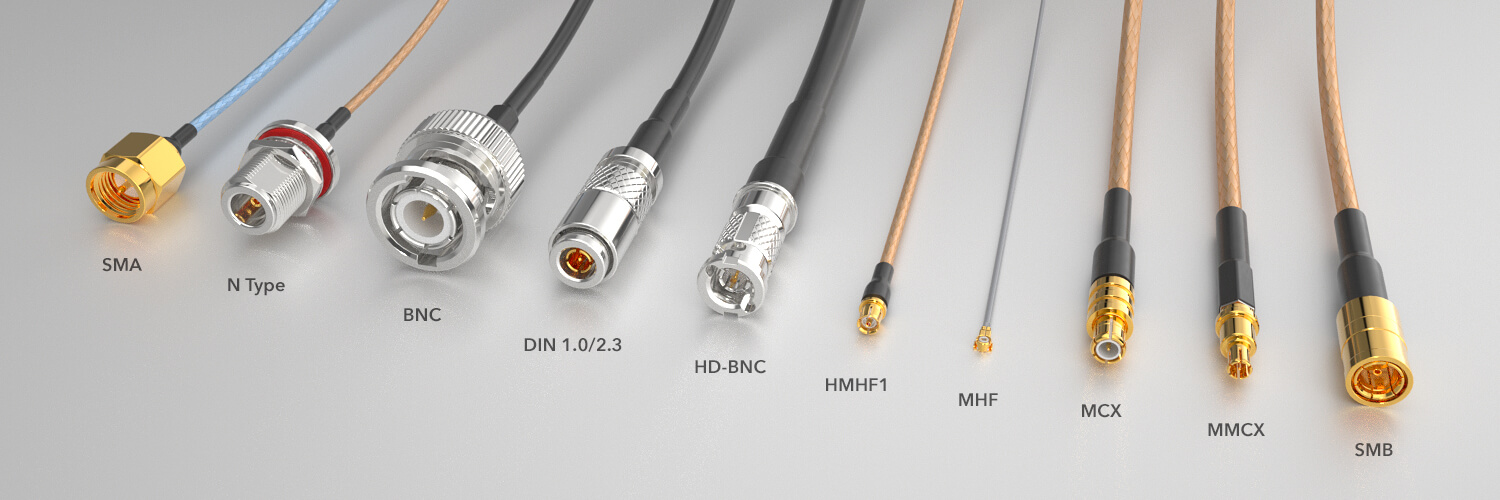

50 Ω & 75 Ω Cable Assemblies
- Wide variety of industry standard cables with mix and match cable connectors
- 50 Ω: High-frequency cables (semi-flexible, solid, foamed or air enhanced dielectric)
- 50 Ω: Double-shielded RG 316 cable
- 50 Ω: Micro high-frequency U.FL/W.FL assemblies
- 75 Ω: RFB8T Series (with Belden 1855A cable)
- 75 Ω: Wide variety of terminations (BNC, HD-BNC, DIN 1.0/2.3, SMB)

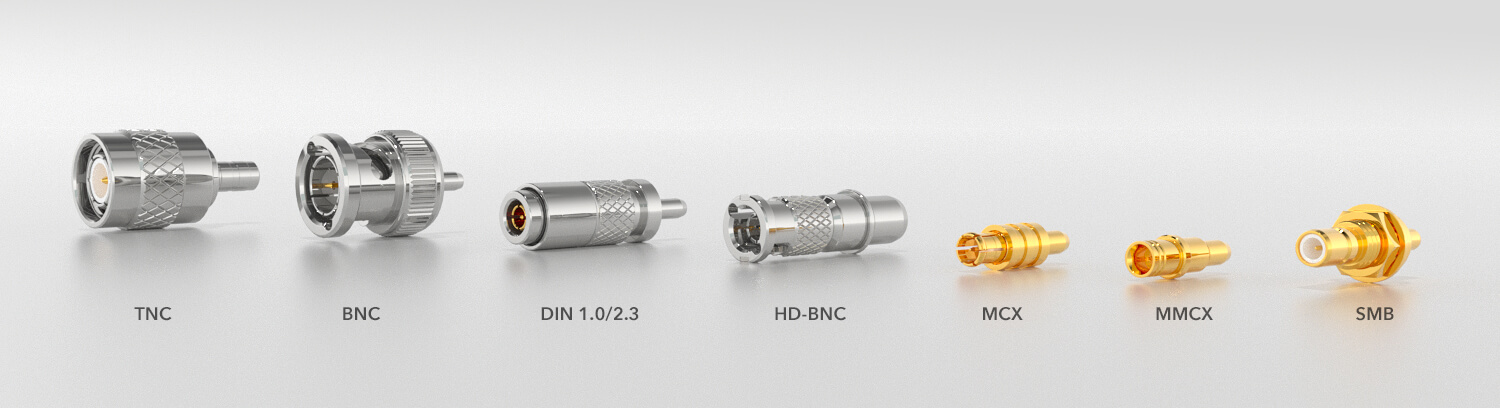

50 Ω & 75 Ω Cable Connectors
- Straight and right-angle orientations
- 50 Ω: Variety of jacks and plugs; bulkhead jack options
- 50 Ω: BNC, MCX, MMCX, MMCXV (High-Vibration), SMB, TNC
- 75 Ω: BNC, HD-BNC, DIN 1.0/2.3, MCX, MMCX, SMB (to 8 GHz)
- 75 Ω: Die cast options available

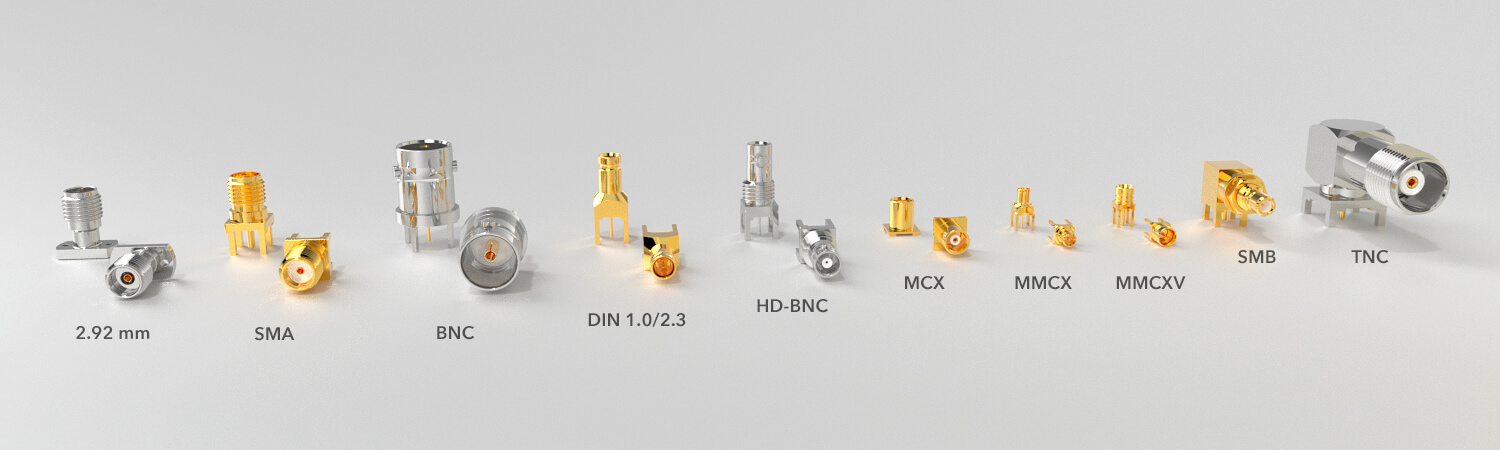

50 Ω & 75 Ω Board Connectors
- Straight or right-angle; through-hole, surface mount, edge mount and mixed technology
- 12G-SDI Broadcast Video Solutions (75 Ω BNC, HD-BNC, DIN 1.0/2.3)
- 50 Ω: SMA, MCX, MMCX, MMCXV (High-Vibration), SMB, TNC
- 50 Ω: SMP plugs and bullet adaptors for flexible connections
- 75 Ω: DIN 1.0/2.3, HD-BNC, MCX, MMCX, SMB
- 75 Ω: BNC low-profile and right-angle

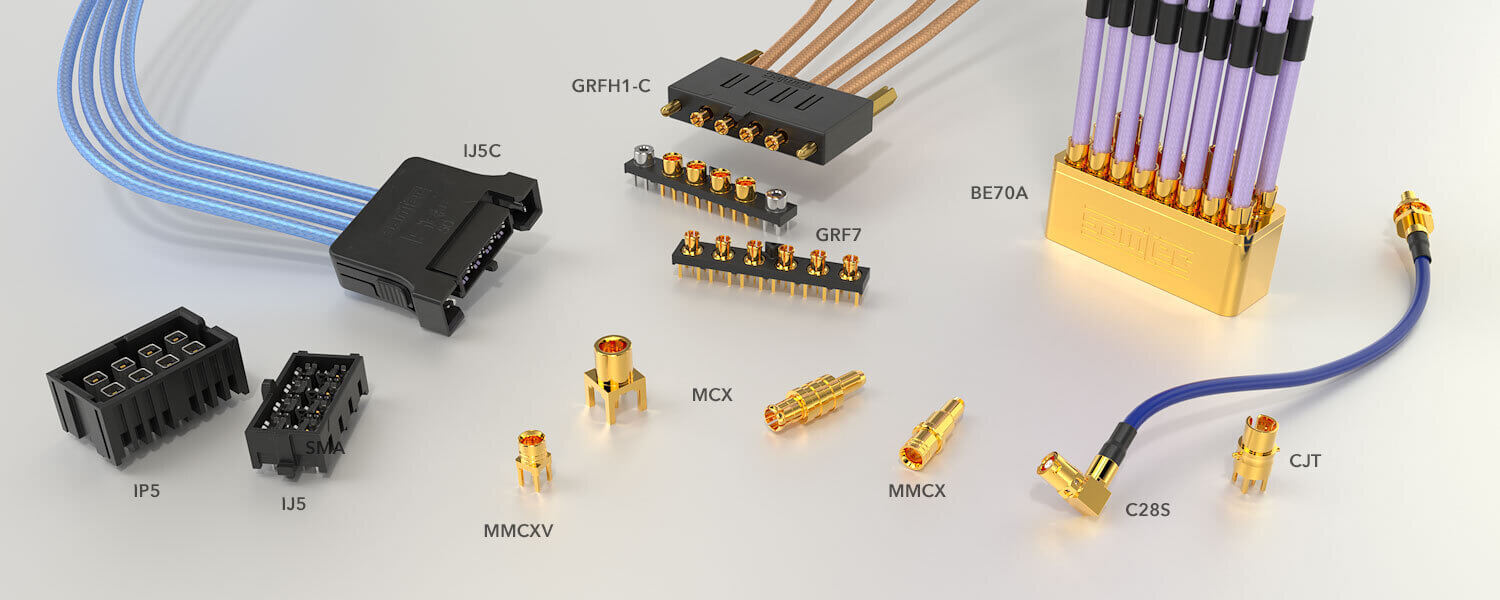

Samtec Original Solutions
- Bulls Eye® high-performance test system to 70 GHz
- High vibration and 75 Ω MMCX
- Ganged micro -miniature high-performance RF cable assemblies with rugged contacts
- Circular RF shielded twisted pair system
- IsoRate® cost-efficient high-performance isolated signal systems
- Machined U.FL to 500 cycles
Non-Magnetic Solutions
- Truly non-magnetic RF solutions; 100% inspected for magnetic permeability
- Nearly all Samtec interconnects can be ordered as non-magnetic
- Supported by Samtec's quick-turn lead times and unmatched service
- Ideal for medical imaging, advanced driver assistance systems, hand held devices, etc.
- Contact [email protected]
12G-SDI Broadcast Video Solutions
- Largest variety of 12G-SDI optimized products
- Analysis and launch optimization (contact [email protected])
- 75 Ω BNC, HD-BNC™ and DIN 1.0/2.3
- Right-angle, vertical, edge mount, low profile and standard or tall trough-hole
