Non-Magnetic RF Interconnects
Non-Magnetic RF Interconnects
High-quality non-magnetic interconnects are essential for optimal safety and accuracy in medical and aerospace applications. Samtec offers non-magnetic interconnects for all machined RF products.
While non-magnetic is not an off-the-shelf solution, dimensions and footprint specifications are identical to our standard products. This enables boards to be reused if device upgrades to true non-magnetic are required— saving you time and money.
Below is an overview of our most common non-magnetic product solutions. To order please contact our RF Group, as compatible materials must be specified. Other non-magnetic RF interconnects are also available. Please contact our RF Group for more information or to request a sample.
FAMILIES
SMA 50 OhmSMA 50 Ohm RF Connectors and Cables
Subminiature interconnects with screw-type coupling.
Features
- Performance to 18 GHz
- 26.5 GHz options available
- Available on a variety of standard cable assemblies
- A wide variety of orientations and PCB terminations available
- Precision cable connectors available for a variety of high-frequency industry standard cables
- Cable connectors also available on RG 174, RF 316, RG 178 and RG 58
- Mechanically compatible with 2.92 mm and 3.50 mm interconnects
- Non-magnetic options available for medical and aerospace applications
SMB 50 & 75 OhmSMB 50 & 75 Ohm RF Connectors and Cables
Subminiature interconnects featuring snap-on coupling and a space-saving alternative to SMAs.
Features
- 50 Ohm performance to 6 GHz; 75 Ohm performance to 4 GHz
- Simple snap-on coupling
- 50 Ohm: RG 174, RG 316 or RG 178 cable terminations
- 50 Ohm: Non-magnetic options available for medical and aerospace applications
- 75 Ohm: RG 179 cable available
MMCX 50 & 75 OhmMMCX 50 & 75 Ohm Connectors and Cables
Micro-miniature interconnects with snap-on coupling.
Features
- Performance to 6 GHz
- Simple snap-on coupling
- 50 Ohm: RG 174, RG 316 or RG 178 cable terminations
- 50 Ohm: Jacks and plugs for high-vibration environments
- 50 Ohm: Jack with switchable internal/external antenna
- 50 Ohm: Non-magnetic options available for medical and aerospace applications
- 75 Ohm: RG 179 cable available
MCX 50 & 75 OhmMCX 50 & 75 Ohm RF Connectors and Cables
Mini coax interconnects featuring a space-saving design which is approximately 30 percent smaller than SMBs.
Features
- 30% smaller than SMBs
- Vertical and right-angle orientations
- Performance: up to 6 GHz
- 50 Ohm: RG 174, RG 316 or RG 178 cable terminations
- 50 Ohm: Non-magnetic options available for medical and aerospace applications
- 75 Ohm: RG 179 cable available
RF174
50 Ohm RF Cable Assembly, RG 174 Cable
Features
- VSWR: See RF174 Graph
- Impedance: 50 Ω
- Bend Radius: 25.4 mm Min
- Capacitance: 101 pF/meter
- Operating Temp: -20 ºC to +80 ºC
- Frequency Range: 6 GHz max (cable & connector dependent)
- Insertion Loss: See RF174 Graph
- 24 AWG, RG 174 cable
- Single or double ended
- Non-magnetic options available for medical and aerospace applications
RF178
50 Ohm RF Cable Assembly, RG 178 Cable
Features
- VSWR: See RF178 Graph
- Impedance: 50 Ω
- Bend Radius: 10.2 mm Min
- Capacitance: 96 pF/meter
- Operating Temp: -50 ºC to +165 ºC
- Frequency Range: 5 GHz Max. (cable & connector dependent)
- Insertion Loss: See RF178 Graph
- 28 AWG, RG 178 cable
- Single or double ended
- Non-magnetic options available for medical and aerospace applications
RF316
50 Ohm RF Cable Assembly, RG 316 Cable
Features
- VSWR: See RF316 Graph
- Impedance: 50 Ω
- Bend Radius: 12.8 mm Min
- Capacitance: 96 pF/meter
- Operating Temp: -50 ºC to +165 ºC
- Frequency Range: 6 GHz max (cable & connector dependent)
- Insertion Loss: See RF316 Graph
- 24 AWG, RG 316 cable
- Single or double ended
- Non-magnetic options available for medical and aerospace applications
Complete RF interconnect solutions
With the right mix of industry experts and knowledgeable engineers, Samtec can assist with challenges throughout a customer’s system—including those specific to RF.
TECHNICAL SUPPORT
- Launch Optimizations
- Simulations
- Test & Measurements
- Customs
RF Group: [email protected]
Signal Integrity Group: [email protected]
UNMATCHED SERVICE
- 24–hour samples and quotes
- No minimum order quantity on standards
- 2 to 5 day lead time on standard products

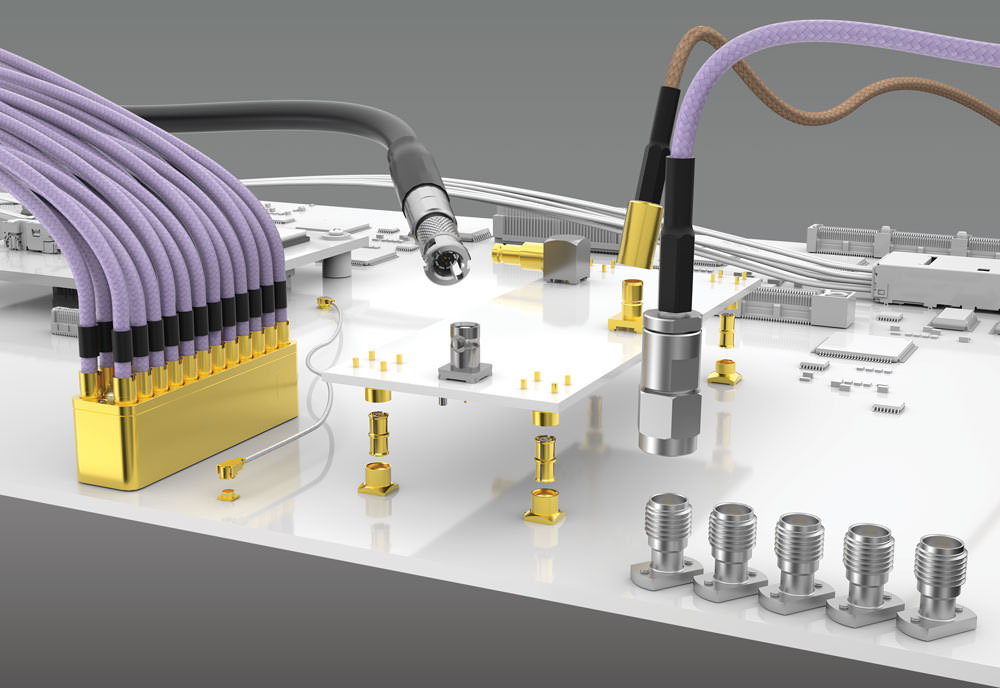

A FULL LINE OF RF SOLUTIONS

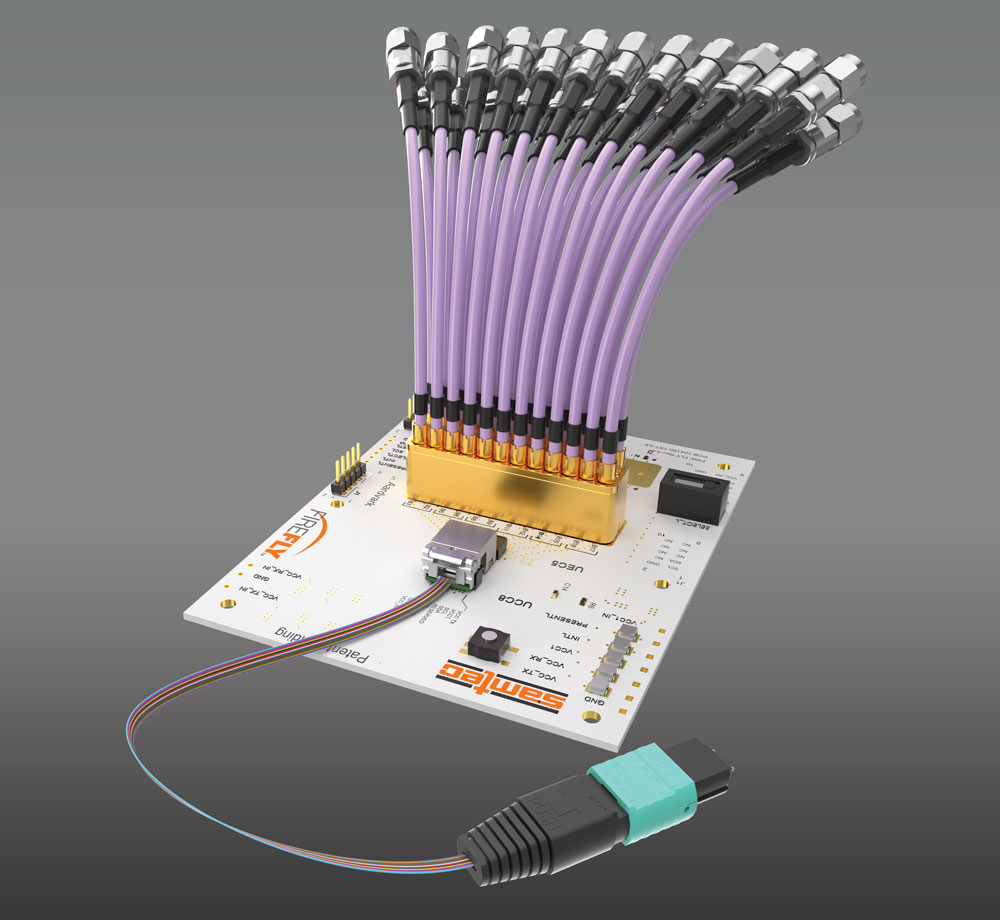

- Bulls Eye® High-Performance Test Systems to 50 GHz
- Precision RF
- Standard 50 Ω & 75 Ω board-level interconnects
- Standard 50 Ω & 75 Ω cable assemblies
- Mix-and-match end options on standard assemblies
- Custom solutions
