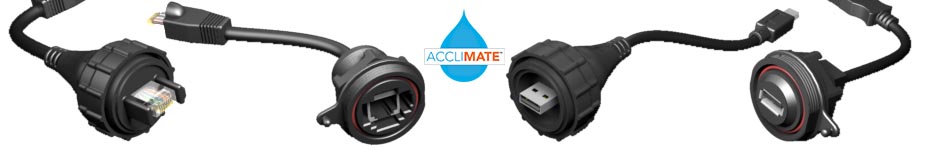

AccliMate™ Threaded Circulars
Our AccliMate™ threaded circulars are tested to IP68 for dust and water applications.
BCU
AccliMate™ Sealed USB Type-C Cable Assembly, Plug
Features
- USB Type-C
- IP67 sealed system
- Capable of USB 3.2 Gen 2x1 (10 Gbit/s)
- Supports 100 W power delivery (5 A @ 20 V)
- Rugged threaded interface
- Plastic shell
- Double ended or blunt cut
BPCU
AccliMate™ Sealed USB Type-C Cable Assembly, Receptacle
Features
- USB Type-C
- IP67 sealed system
- Capable of USB 3.2 Gen 2x1 (10 Gbit/s)
- Supports 100 W power delivery (5 A @ 20 V)
- Panel mount
- Rugged threaded interface
- Plastic shell
- Double ended or blunt cut
BRU
IN DEVELOPMENT: AccliMate™ Sealed USB Type-C Panel Mount Connector, Receptacle
Features
- USB Type-C
- IP67 sealed system
- Capable of USB 3.2 Gen 2x1 (10 Gbit/s)
- Supports 100 W power delivery (5 A @ 20 V)
- Panel mount
- Rugged threaded interface
- Plastic shell
- Dust cap DCA-BRU-C-01
SCPE
AccliMate™ IP68 Sealed Circular Ethernet Cable Plug Assembly
Features
- Double ended sealed option
- Dust cap DCA-17-02
- Ethernet Cat5e
- Field application kits available
- Rugged overmold construction
SCRE
AccliMate™ IP68 Sealed Circular Ethernet Panel Mount Receptacle
Features
- Ethernet Cat 5e panel mount assembly
- Panel thickness from 0.80 mm (.0315") to 5.20 mm (.205")
- Termination for standard ethernet cable
SCRES
AccliMate™ IP68 Sealed Circular Ethernet Cable Assembly, Receptacle
Features
- Double ended or blunt cut
- Dust cap DCA-17-01
- Ethernet Cat5e
- Panel Plug SCPPA-17-01
- Rugged overmold construction
SCPFE
AccliMate™ IP68 Sealed Circular Ethernet Cable Plug, Field Termination Kit
Features
- -01: For cable outside diameter range of 05.00 mm to 05.75 mm
- -02: For cable outside diameter range of 05.75 mm to 06.50 mm
- Available for long cable run and small-opening applications
- Ethernet field termination kit
SCPU
AccliMate™ IP68 Sealed Circular USB 2.0 Cable Plug Assembly
Features
- Rugged overmold construction
- Rugged threaded interface
- USB A, B, & Mini B
- Dust cap DCA-17-02
SCRU
AccliMate™ IP68 Sealed Circular USB 2.0 Panel Mount Receptacle
Features
- Panel thickness from 0.80 mm (.0315") to 5.20 mm (.205")
- Termination for USB cable
- USB panel mount assembly
SCRUS
AccliMate™ IP68 Sealed Circular USB Cable Assembly, Receptacle
Features
- Panel Plug SCPPA-XX-01
- Rugged overmold construction
- Rugged threaded interface
- USB A, B, & Mini B
- Dust caps DCA-XX-01
