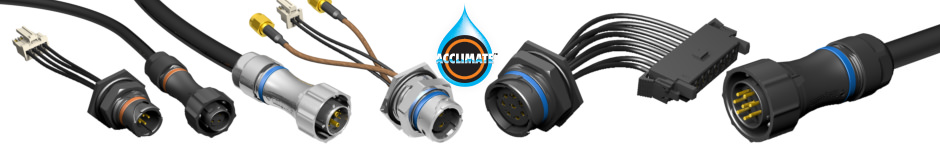

AccliMate™ Bayonet Sealed Circulars
Our AccliMate™ bayonet sealed circulars are tested to IP68 for dust and water applications.
ACP-12
AccliMate™ IP68 Sealed Circular Cable Assembly, Plug, 12 mm Shell
Features
- Metal or plastic shell
- Standard 24 or 28 AWG wires
- Four keying options
- Field application kits available
- Up to 5.0A
- 0.50 mm or 1.00 mm diameter pins available
- Dust caps DCA-ACP-12-X-X
ACR-12
AccliMate™ IP68 Sealed Circular Panel Assembly, Receptacle, 12 mm Shell
Features
- Metal or plastic shell
- Standard 24 or 28 AWG wires
- Four keying options
- Field application kits available
- Dust caps DCA-ACR-12-X-X
- Up to 5.0A
- 0.50 mm or 1.00 mm diameter pins available
ACPK-12
AccliMate™ IP68 Sealed Circular Plug Cable Assembly, 12 mm Shell, Field Termination Kit
Features
- Up to 5.0A
- 0.50 mm or 1.00 mm diameter pins available
- Metal or plastic shell
- Accepts 20 - 30 AWG wires
- Four keying options
- Insertion tool available
- Dust caps DCA-ACP-12-X-X
ACRK-12
AccliMate™ IP68 Sealed Circular Receptacle Panel Assembly, 12 mm Shell, Field Termination Kit
Features
- Up to 5.0A
- 0.50 mm or 1.00 mm diameter pins available
- Metal or plastic shell
- Accepts 20 - 30 AWG wires
- PCB tail option available
- Insertion tool available
- Dust caps DCA-ACR-12-X-X
ACP-16
AccliMate™ IP68 Sealed Circular Cable Assembly, Plug, 16 mm Shell
Features
- Metal or plastic shell
- Four keying options
- Field application kits available
- Dust caps DCA-ACP-16-X-X
- Up to 11.6A
- 0.50 mm, 1.00 mm and 1.50 mm diameter pins available
- Standard 16, 20, 24, or 28 AWG wires
- RF lines available
ACR-16
AccliMate™ IP68 Sealed Circular Panel Assembly, Receptacle, 16 mm Shell
Features
- Metal or plastic shell
- Four keying options
- Field application kits available
- Dust caps DCA-ACR-16-X-X
- Up to 11.6A
- 0.50 mm, 1.00 mm and 1.50 mm diameter pins available
- Standard 16, 20, 24, or 28 AWG wires
- RF lines available
ACPK-16
AccliMate™ IP68 Sealed Circular Plug Cable Assembly, 16 mm Shell, Field Termination Kit
Features
- Up to 11.6A
- 0.50 mm, 1.00 mm and 1.50 mm diameter pins available
- Metal or plastic shell
- Accepts 14 - 30 AWG wires
- RF lines available
- Four keying options
- Insertion tool available
- Dust caps DCA-ACP-16-X-X
ACRK-16
AccliMate™ IP68 Sealed Circular Receptacle Panel Assembly, 16 mm Shell, Field Termination Kit
Features
- Up to 11.6A
- 0.50 mm, 1.00 mm and 1.50 mm diameter pins available
- Metal or plastic shell
- Accepts 14 - 30 AWG wires
- RF lines available
- PCB tail option available
- Insertion tool available
- Dust caps DCA-ACR-16-X-X
ACP-22
AccliMate™ IP68 Sealed Circular Cable Assembly, Plug, 22 mm Shell
Features
- Metal or plastic shell
- Four keying options
- Field application kits available
- Dust caps DCA-ACP-22-X-X
- Up to 8.3A
- 1.00 mm or 1.50 mm diameter pins available
- Standard 16 or 24 AWG wires
- RF lines available
ACR-22
AccliMate™ IP68 Sealed Circular Panel Assembly, Receptacle, 22 mm Shell
Features
- Metal or plastic shell
- Four keying options
- Field application kits available
- Dust caps DCA-ACR-22-X-X
- Up to 8.3A
- 1.00 mm or 1.50 mm diameter pins available
- Standard 16 or 24 AWG wires
- RF lines available
ACPK-22
AccliMate™ IP68 Sealed Circular Plug Cable Assembly, 22 mm Shell, Field Termination Kit
Features
- Up to 8.3A
- 1.00 mm or 1.50 mm diameter pins available
- Metal or plastic shell
- Accepts 14 - 24 AWG wires
- RF lines available
- Four keying options
- Insertion tool available
- Dust caps DCA-ACP-22-X-X
ACRK-22
AccliMate™ IP68 Sealed Circular Receptacle Panel Assembly, 22 mm Shell, Field Termination Kit
Features
- Up to 8.3A
- 1.00 mm or 1.50 mm diameter pins available
- Metal or plastic shell
- Accepts 14 - 24 AWG wires
- RF lines available
- PCB tail option available
- Insertion tool available
- Dust caps DCA-ACR-22-X-X
