Rugged High-Speed Systems
Optimized for SI Performance • Increased Contact Wipe • High Cycles
Samtec’s Edge Rate® contact system is designed for high speed performance to 56 Gbps PAM4, as well as increased durability and wear life. Edge Rate® connector strips are available in 0.50, 0.635 or 0.80 mm pitch with a wide range of stack heights and ruggedizing features. High-speed edge card sockets feature rugged Edge Rate® contacts in 0.60 mm, 0.80 mm or 1.00 mm pitch with a choice of orientation.
Other Rugged SI solutions include micro edge card sockets with rugged weld tabs, board or solder locks. High-retention, high-speed Razor Beam™ connectors are self-mating in a slim body design with optional EMI shielding and a variety of stack heights for increased flexibility. One-Piece interfaces and floating contacts are also available for rugged, high-shock and vibration applications.

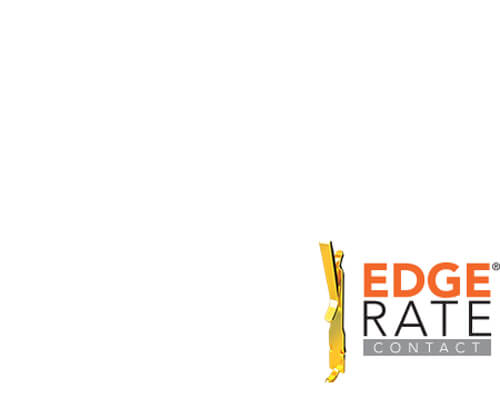

Edge Rate®Edge Rate® Connector Strips
Rugged Edge Rate® contact systems optimized for signal integrity performance.
Features
- Edge Rate® contacts optimized for signal integrity performance
- 1.5 mm contact wipe
- Robust when "zippered" during unmating
- Up to 56 Gbps PAM4 performance

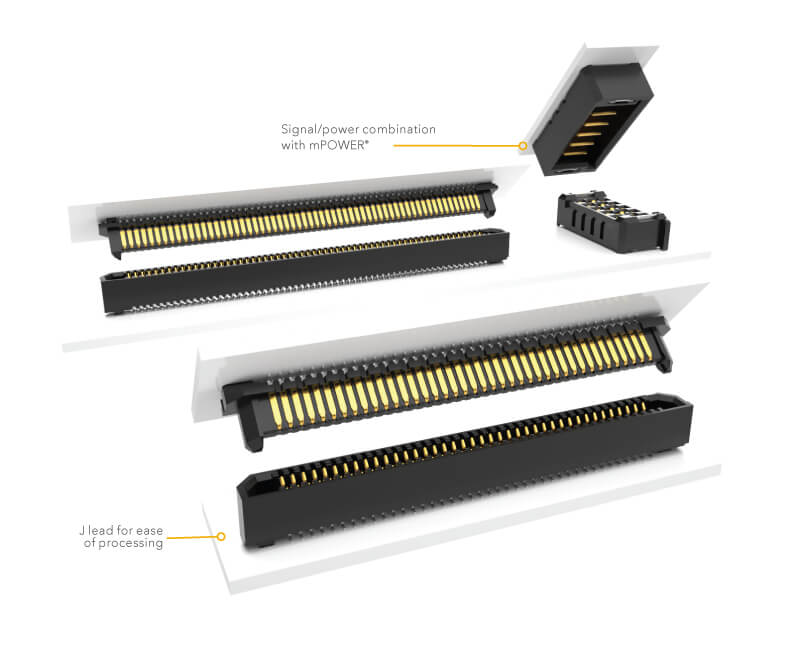

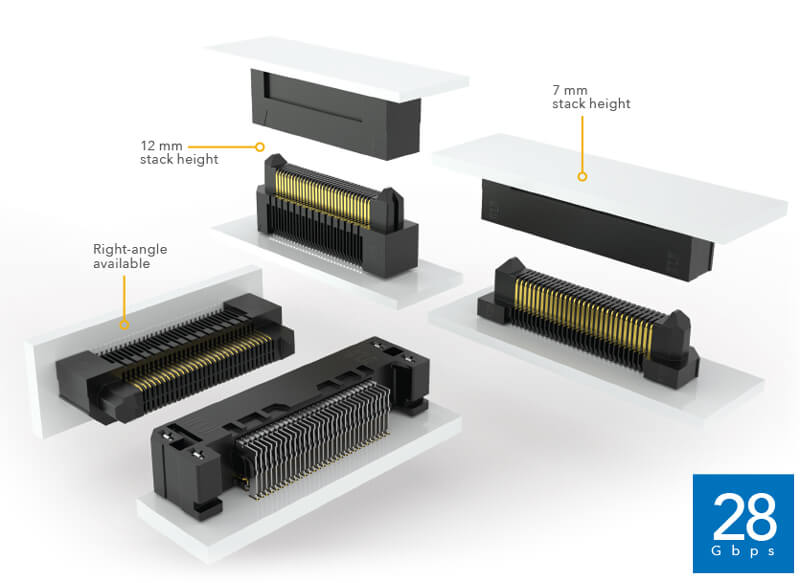

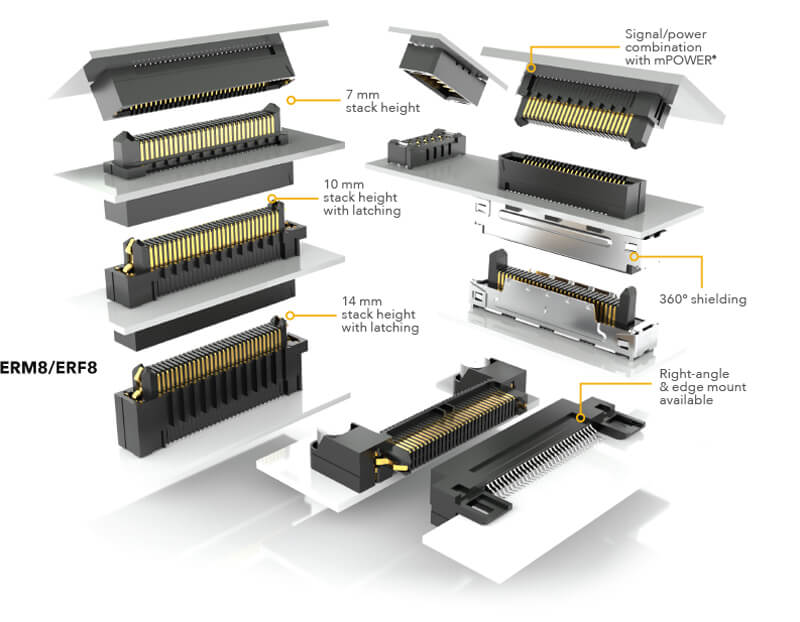

- 0.50 mm, 0.635 mm or 0.80 mm pitch systems

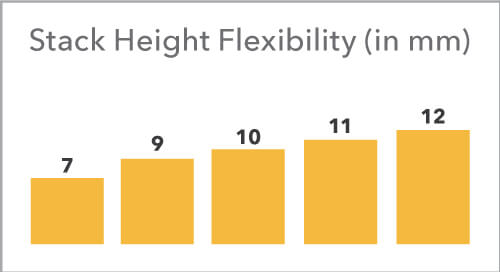

- Stack heights from 5 mm to 18 mm
- Extremely slim 2.5 mm body width on 0.635 mm pitch system
- 0.50 mm pitch system for up to 40% PCB space savings vs 0.80 mm pitch system
High-Speed 0.60 mm Pitch Edge CardGenerate® High-Speed 0.60 mm Pitch Edge Card
Generate® high-speed edge card sockets with differential pair Edge Rate® contacts for 64 Gbps PAM4 (32 Gbps NRZ) performance and PCIe® 6.0 capable.
Features
- 0.60 mm pitch differential pair system
- Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
- PCIe® 6.0/CXL® 3.1 capable
- Compliant to SFF-TA-1002: x4 (1C), x8 (2C), x16 (4C & 4C+)
- Edge Rate® contacts optimized for signal integrity performance
- 0.60 mm pitch mating high-speed cable assembly (GC6) available
High-Speed 0.80 mm Pitch Edge CardGenerate® High-Speed 0.80 mm Pitch Edge Card

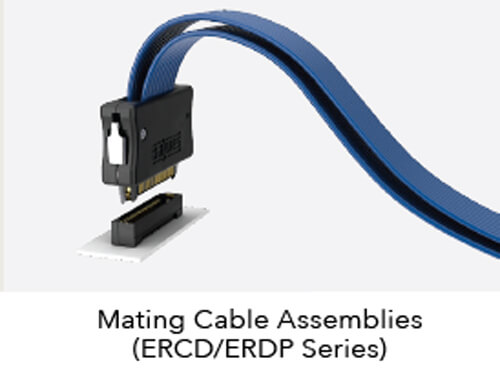

Generate® high-speed edge card sockets with rugged Edge Rate® contacts on a micro 0.80 mm pitch.
Features
- 56 Gbps PAM4 performance
- Rugged Edge Rate® contacts
- Card slot: 1.60 mm (.062")
- Single-ended and differential pairs
- Vertical, right-angle, edge mount
- Optional board locks and cable latching features
- Optional weld tab for mechanical strength
- RU8 system for elevated board stacking
- Performance: Up to 18.5 GHz / 37 Gbps
High-Speed 1.00 mm Pitch Edge CardGenerate® High-Speed 1.00 mm Pitch Edge Card
Generate® 1.00 mm pitch high-speed edge card sockets with rugged Edge Rate® contacts and misalignment mitigation.
Features
- 28 Gbps NRZ performance
- Rugged Edge Rate® contacts decrease crosstalk and increase cycle life
- 20 – 140 total pins
- Accepts .062" (1.60 mm) thick cards
- Optional weld tab and alignment pin
- Performance to 14 GHz / 28 Gbps
Micro Edge Card SystemsMicro Edge Card Systems
Micro pitch edge card sockets in a variety of centerlines and orientations, including 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, and 2.00 mm, vertical, right-angle, and edge mount, as well as surface mount and through-hole
Features
- Performance to 56 Gbps NRZ
- Solutions for .062" (1.60 mm), and .093" (2.36 mm) thick cards
- Choice of pitch: 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm
- Vertical, right-angle, edge mount
- Available in surface mount and through-hole
- Performance: Up to 14.5 GHz / 29 Gbps

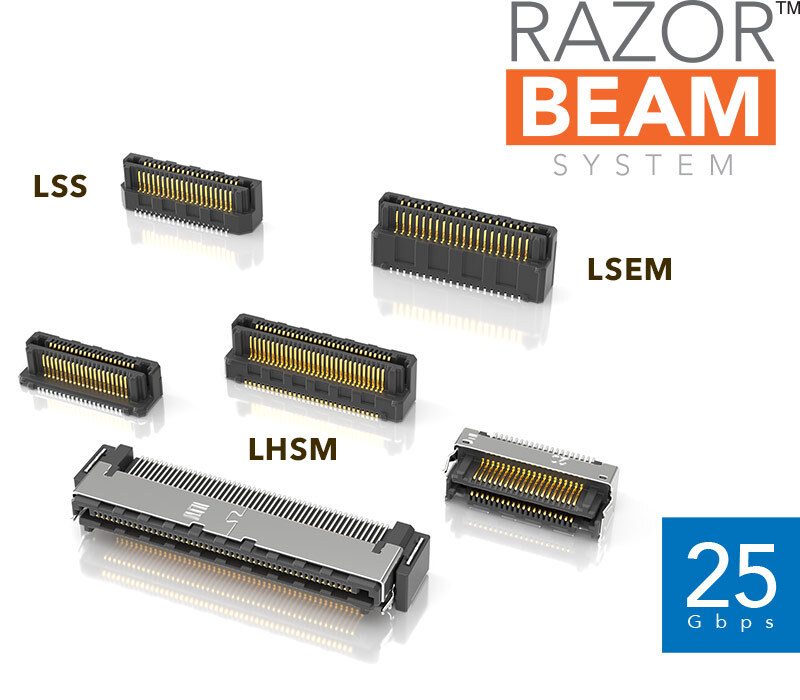

Razor Beam™Razor Beam™
High-speed, high-density Razor Beam™ self-mating systems reduce inventory costs and are available in a variety of pitches and lead styles for increased flexibility.
Features
- 0.50 mm, 0.635 mm or 0.80 mm pitch systems
- Razor Beam™ contacts for high-speed and fine-pitch systems
- Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
- Shielded option for EMI protection
- Self-mating connectors reduce inventory costs and can be interchanged for varying stack heights
- 10 stack height options from 5 mm to 12 mm
- Up to 100 contacts
- Parallel, perpendicular and coplanar systems
- Audible click when mated
- Lubricated option available

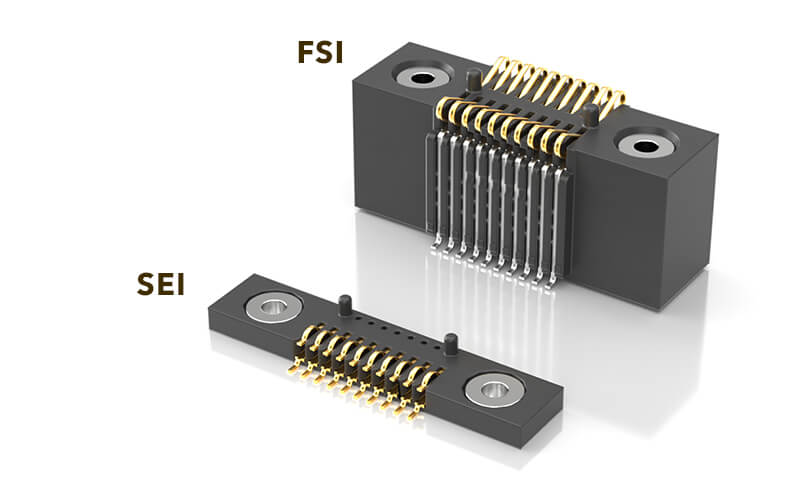

Micro Pitch One-PieceMicro Pitch One-Piece
1.00 mm and .050" pitch one-piece interfaces for rugged and power applications.
Features
- For high-shock, vibration, rugged applications
- Elevated and low profiles from 3 mm to 10 mm
- Optional screw mounts and alignment pins
- Single and double row designs

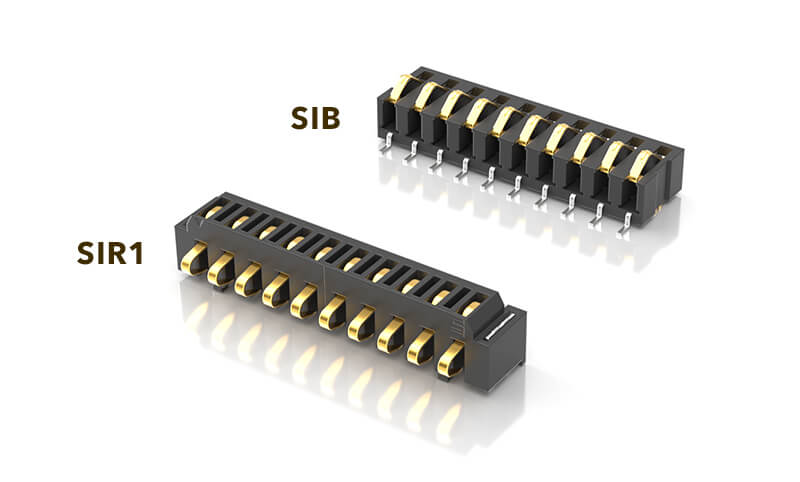

.100" (2.54 mm) Pitch One-Piece.100" (2.54 mm) Pitch One Piece
One-piece interconnects in vertical and right-angle designs with large contact deflection.
Features
- Current Rating: 2.4 A per pin
- Contacts: Up to 30 I/Os
- Screw insert option for rugged environments
- Alignment pins on either side of connector
- Large contact deflection
- Optional alignment pins

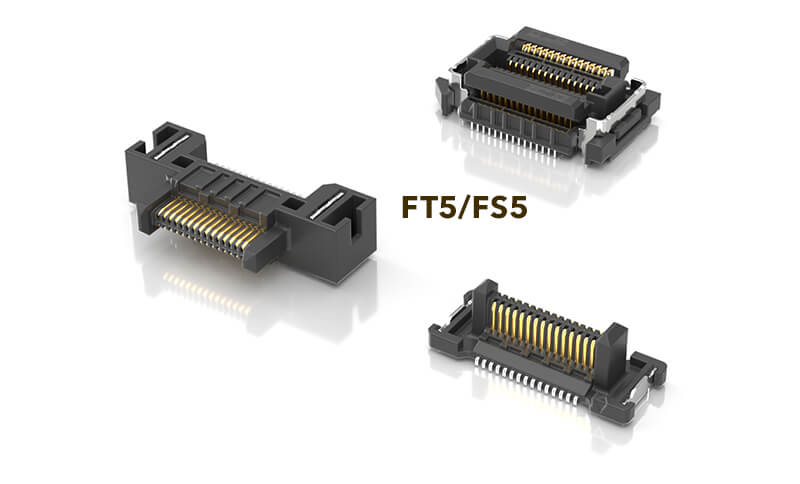

Floating Contact SystemFloating Contact System
High-speed floating contact system minimizes mating alignment errors.
Features
- Minimizes misalignment, location errors
- Provides 0.50 mm (.0197") float in X and Y directions
- Ideal for multiple connector, board-to-board applications
- Up to 60 floating contacts
- Choice of body height and right-angle design
