SI Evaluation Kits: Cable

As data rates increase, trace length on PCBs decrease. Samtec's high-speed cable assemblies simplify PCB design and limit signal degradation in high data rate applications. Samtec Cable Assembly SI Evaluation Kits provide system designers and SI engineers easy-to-use platforms for testing many of Samtec's popular cable assembly products.

Each kit includes the evaluation platform, calibration board(s), technical documentation and test reports. Additionally, each kit is tested and verified by Samtec's signal integrity experts before customer delivery.

SI Evaluation Kits: Cable

Kit Name		Description

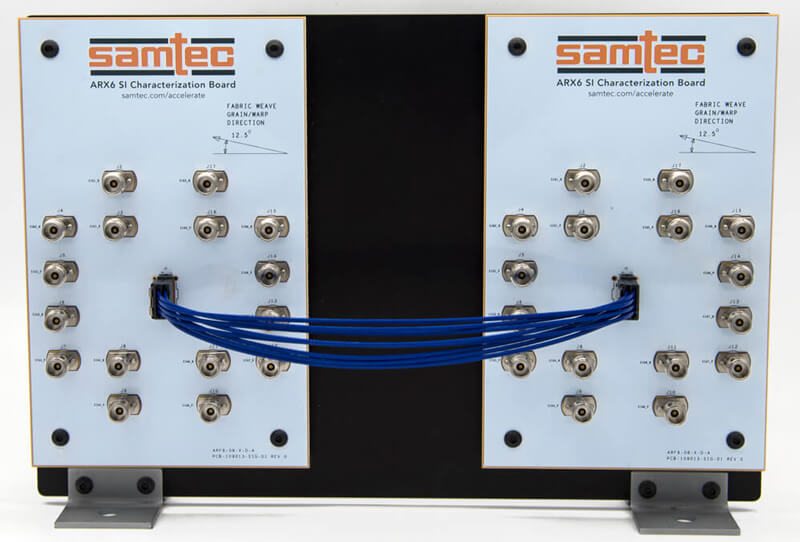

AcceleRate^® Flyover^® SI Evaluation Kit (REF-203425-X.XX-XX) (REF-212901-X.XX-XX-XX)		The AcceleRate^® Flyover^® SI Evaluation Kits route high-precision differential pairs via ARF6 product mating connectors and twinax cable lengths and Precision RF connector options.

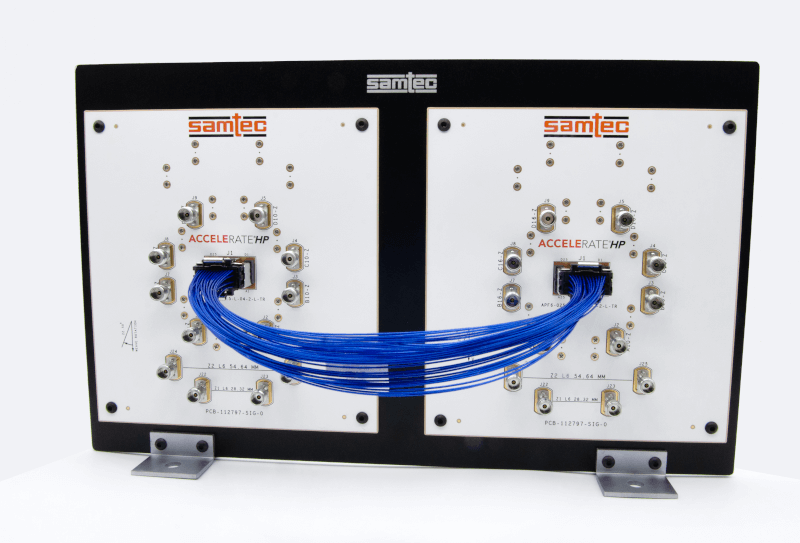

AcceleRate^® HP Flyover^® SI Evaluation Kits (REF-230038-X.XX-XX) (REF-231683-X.XX-XX)		The AcceleRate^® HP Flyover^® SI Evaluation Kits route high-speed signals via APF6-L mating connectors, twinax cable length and Precision RF connector options.

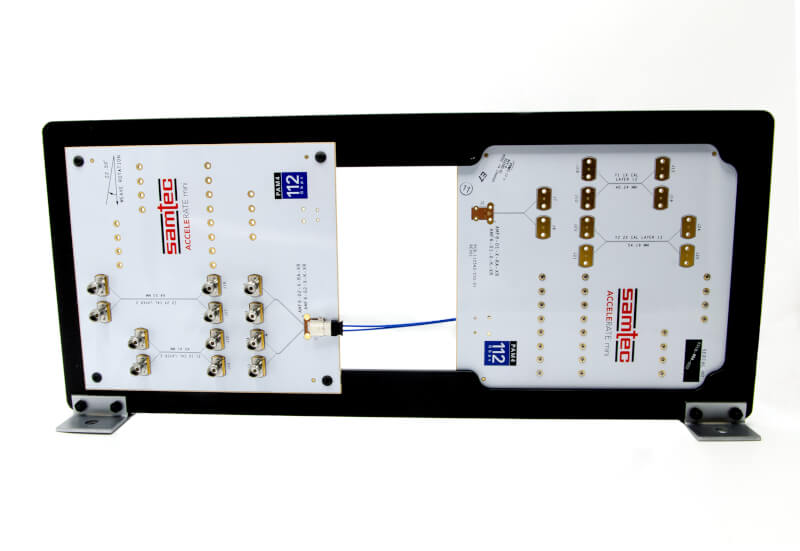

AcceleRate^® Mini Flyover^® SI Evaluation Kit (REF-231380-X.XX-XX)		The AcceleRate^® Mini Flyover^® SI Evaluation Kit routes high-precision differential pairs via AMF6 product mating connectors and twinax cable lengths and Precision RF connector options.

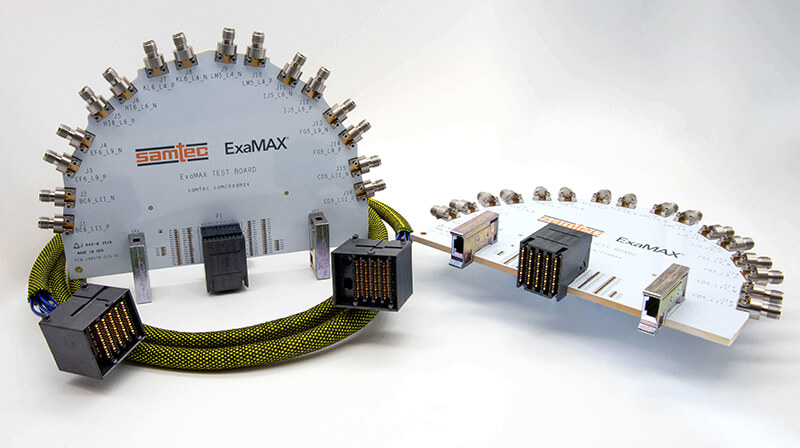

ExaMAX^® Backplane Cable SI Evaluation Kit (REF-211825-XX)		SI test platform for evaluating ExaMAX^® backplane cable assemblies.
FQSFP SI Evaluation Kit (REF-205303-X.XX-XX)		SI test platforms for characterizing FQSFP product Twinax Cable Assemblies with various End 2 options.

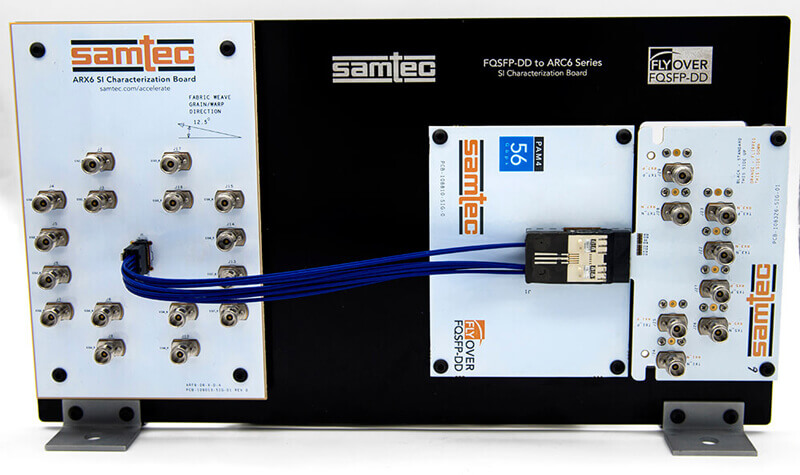

FQSFP-DD SI Evaluation Kits (REF-203424-X.XX-XX) (REF-205605-X.XX-XX)		SI test platforms for characterizing FQSFP-DD Product Twinax Cable Assemblies with various End 2 options.

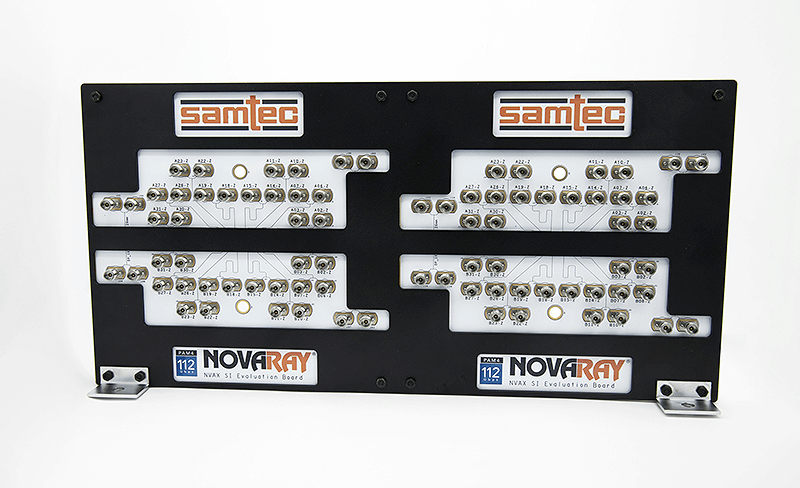

NovaRay^® Flyover^® SI Evaluation Kit (REF-213732-X.XX-01)		SI test platform for evaluating 0.80 mm pitch NovaRay^® cable assemblies.

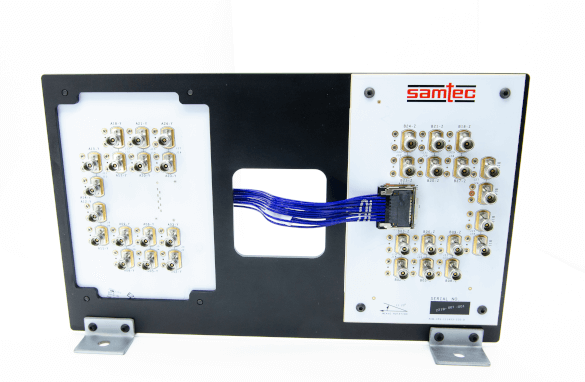

Si-Fly™ Flyover® SI Evaluation Kit (REF-224260-X.XX-01)		SI test platform for evaluating Si-Fly™ cable assemblies.
