OVERVIEW
Arm® RealView Hardware Platforms are suitable for architecture and CPU evaluation, hardware and software design, and ASIC emulation. They are designed to provide value to customers in a number of ways:
- Early access to the latest Arm® IP, including processors, AMBA interfaces, and PrimeCell blocks
- Faster time to market achieved by fast software development early in the development cycle
- Risk reduction in ASIC designs by prototyping custom hardware in FPGAs and connecting it to real processors and peripherals
- Fast environment for application development for a number of operating systems
Connectors
Versatile is the latest generation family of Arm® boards. They are based on high density Q Strip® QTH/QSH connectors from Samtec, which allow several AMBA AHB or AXI buses to be routed between baseboard and daughter cards, also called "tiles."

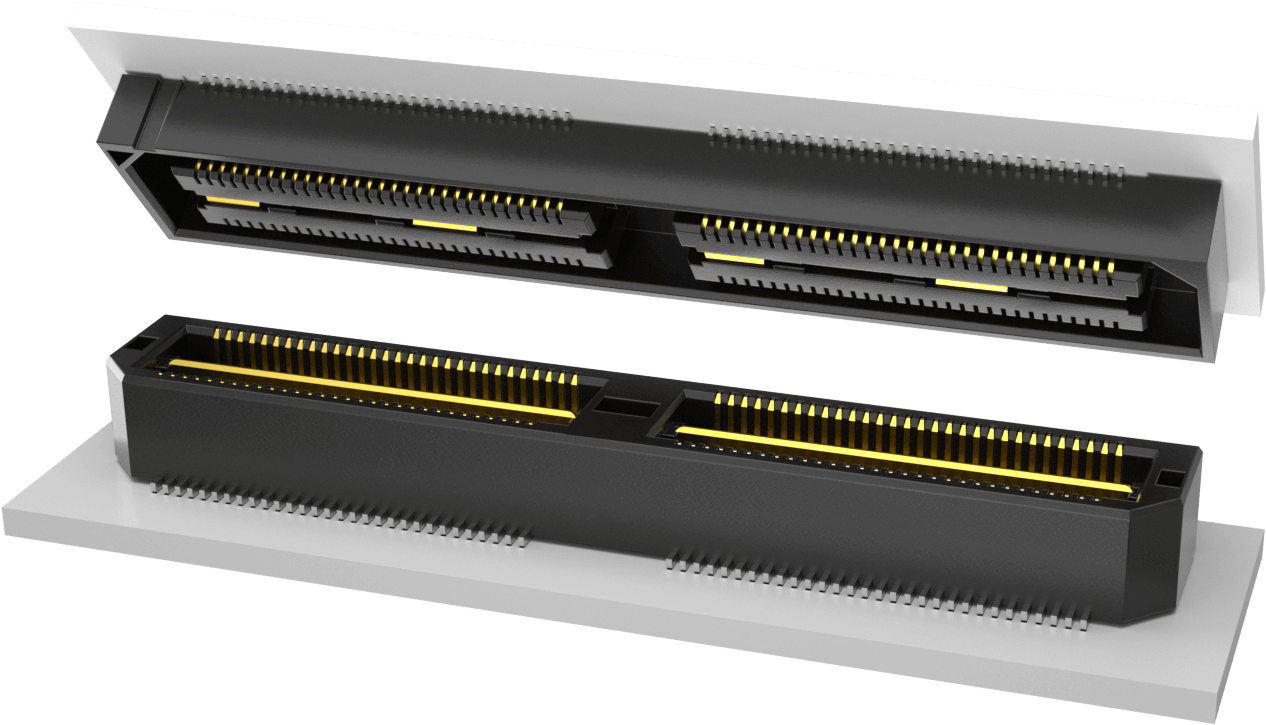

Samtec describes the Q Strip® QTH connector (used on the upper side of the tile) as a header and the QSH connector (used on the lower side of the tile) as a socket.
Versatile Boards |
|||
|---|---|---|---|
| Upper/Lower | Description | Part Number | |
| HDRXU | Male | QTH-090-05-F-D-A | |
| HDRXL | Female | QSH-090-01-F-D-A-K | |
| HDRYU | Male | QTH-090-05-F-D-A | |
| HDRYL | Female | QSH-090-01-F-D-A-K | |
| HDRZU | Male | QTH-150-05-F-D-A | |
| HDRZL | Female | QSH-150-01-F-D-A-K | |
Core Tiles |
|||
| Upper/Lower | Description | Part Number | Mating Height |
| HDRXU | Male | QTH-090-05-F-D-A | 8 mm |
| HDRXL | Female | QSH-090-01-F-D-A-K | 5 mm |
| HDRYU | Male | QTH-090-05-F-D-A | 8 mm |
| HDRYL | Female | QSH-090-01-F-D-A-K | 5 mm |
| HDRZU | Male | QTH-150-05-F-D-A | 8 mm |
| HDRZL | Female | QSH-150-01-F-D-A-K | 5 mm |
| PISMO Boards | |||
| Upper/Lower | Description | Part Number | Mating Height |
| Upper | Male | QTH-060-01-F-D-A | 5 mm |
| Lower | Female | QSH-060-01-F-D-A | 5 mm |
