SFF-SIG
SFF-SIG (Small Form Factor Special Interest Group) is a Standards family primarily focused on the development of modular embedded computers and controllers.
Many SFF-SIG specifications utilize proven interfaces such as PCI Express® and USB when defining single-board systems and COM (computer-on-module) form factors.
SUMIT
SUMIT is an electromechanical connectorization specification that enables all common serial and legacy chipset expansion busses for next generation products. It is a stackable, I/O-centric, serial expansion approach that is independent of any particular board form factor. It supports PCIe, USB, LPC, SMBus, and ExpressCard signals on a single high-speed connector.

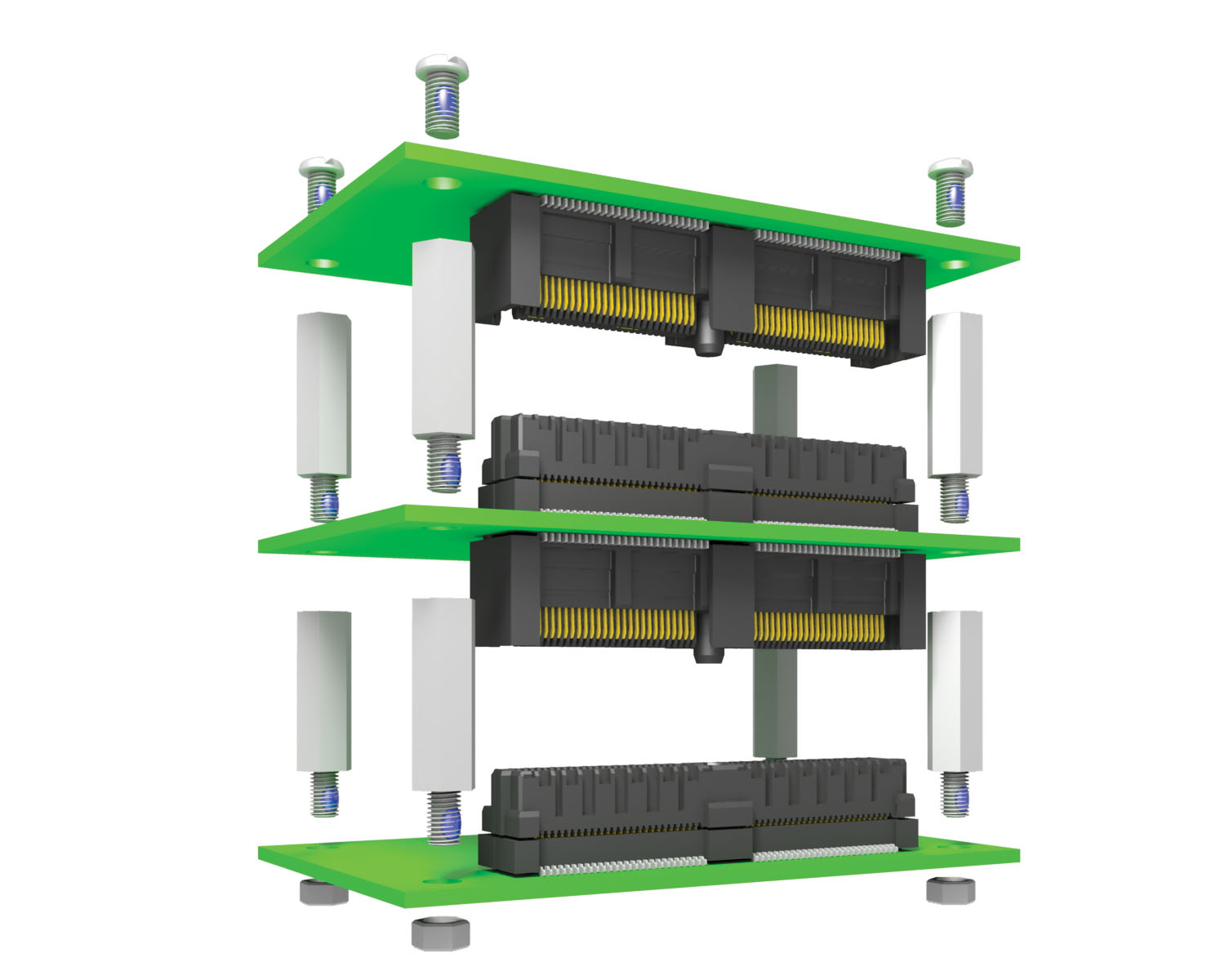

Samtec's Q2™ connectors are compliant to the SUMIT standard.
- ASP-129637-01 – QMS Product: Male connector for 15.24 mm stack height
- ASP-129646-01 – QFS Product: Female connector for 15.24 mm stack height
- ASP-142781-01 – QMS Product: Male connector for 22 mm stack height
Samtec also offers precision machined standoffs to limit the impact of tolerance stack up issues in embedded applications.
- SO-1524-03-01-02-L – 15.24 mm standoff
- SO-2200-03-01-02-L – 22 mm standoff
XR-DIMM
The XR-DIMM ("eXtreme Rugged Dual Inline Memory Module") Rugged Memory Specification defines a small form factor mezzanine DDR3/DDR4 expansion memory module for use in embedded applications requiring exceptional resistance.

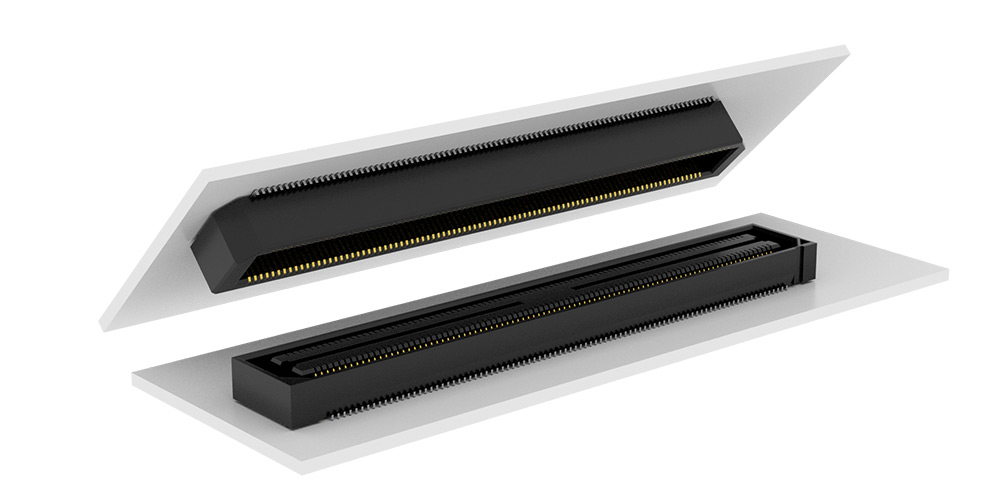

Samtec's BSH/BTH connectors are compliant to the XR-DIMM standard.
- Module Side: BSH-120-01-X-D-A
- CPU Board Side: BTH-120-01-X-D-A
