Ultra Micro Interconnects
Ultra Micro Interconnects
Space Saving Designs • Hermaphroditic • High-Density
Samtec's ultra micro interconnects feature fine pitches, slim body designs and extremely low profiles for incredible design flexibility with high-speed performance up to 56 Gbps PAM4. Self-mating Razor Beam™ interconnects reduce inventory costs, and can be interchanged for a variety of stack heights from 5 to 12 mm with optional EMI shielding. Razor Beam™ contacts feature undercut retention notches with an audible click when mated; this increases mating/unmating forces by 4 to 6 times compared to typical micro pitch connectors.
Micro Blade & Beam systems feature incredibly fine pitches and ultra low stack heights down to 2 mm. For a power/signal application, these interconnects are compatible with mPOWER® ultra micro power system. Jack screw standoffs are available for unmating assistance and protection from component damage.

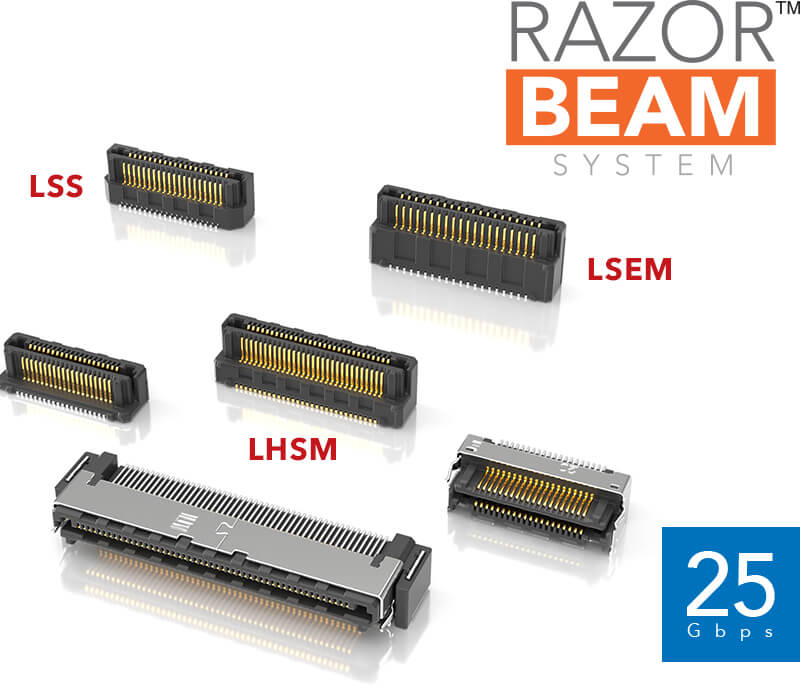

Razor Beam™Razor Beam™ Fine Pitch Self Mating Connectors
High-speed, high-density Razor Beam™ fine pitch self mating connectors reduce inventory costs and are available in a variety of pitches and lead styles for increased flexibility.
Features
- 0.50 mm, 0.635 mm or 0.80 mm pitch systems

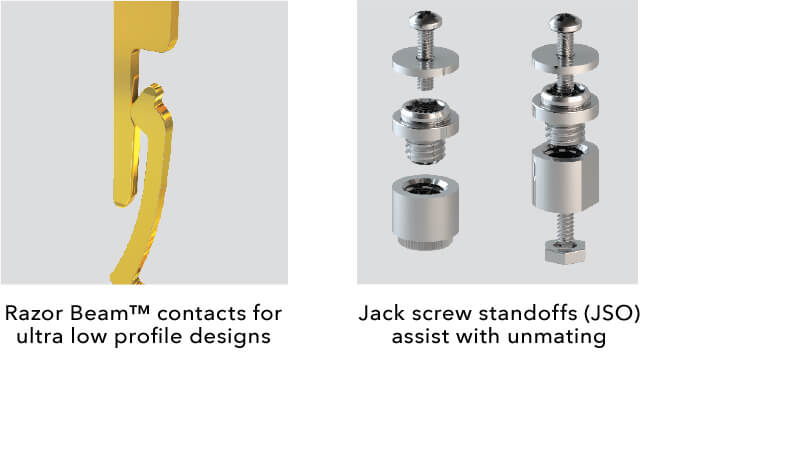

- Razor Beam™ contacts for high-speed and fine-pitch systems
- Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
- Shielded option for EMI protection
- Self-mating connectors reduce inventory costs and can be interchanged for varying stack heights
- 10 stack height options from 5 mm to 12 mm
- Up to 100 contacts
- Parallel, perpendicular and coplanar systems
- Audible click when mated
- Lubricated option available
Micro Blade & BeamMicro Blade & Beam Ultra Fine Pitch Connectors
0.40 mm and 0.50 mm pitch Micro Blade & Beam ultra slim, ultra low profile connectors.
Features
- Ultra fine pitch – 0.40 mm and 0.50 mm
- Ultra low stack down to 2.00 mm
- Slim body design for increased board space savings
