Precision RF Cable Assemblies & Connectors
Precision RF Cable Assemblies & Connectors
Microwave/Millimeter Wave • 18 GHz to 110 GHz • Industry-Leading Service
High-Frequency, Precision RF starts at K band (18-26.5 GHz) and supports extreme low-latency wireless communication, and test & measurement applications. Samtec offers off-the-shelf industry standard solutions, along with the ability to completely customize an interconnect, in order to support these next generation system demands.
Precision RF solutions for microwave and mmWave applications, include full cable assemblies, cable connectors and board level interconnects. Our focus is on delivering high-quality RF products that meet precision and performance expectations, blended with industry-leading system-level signal integrity expertise.

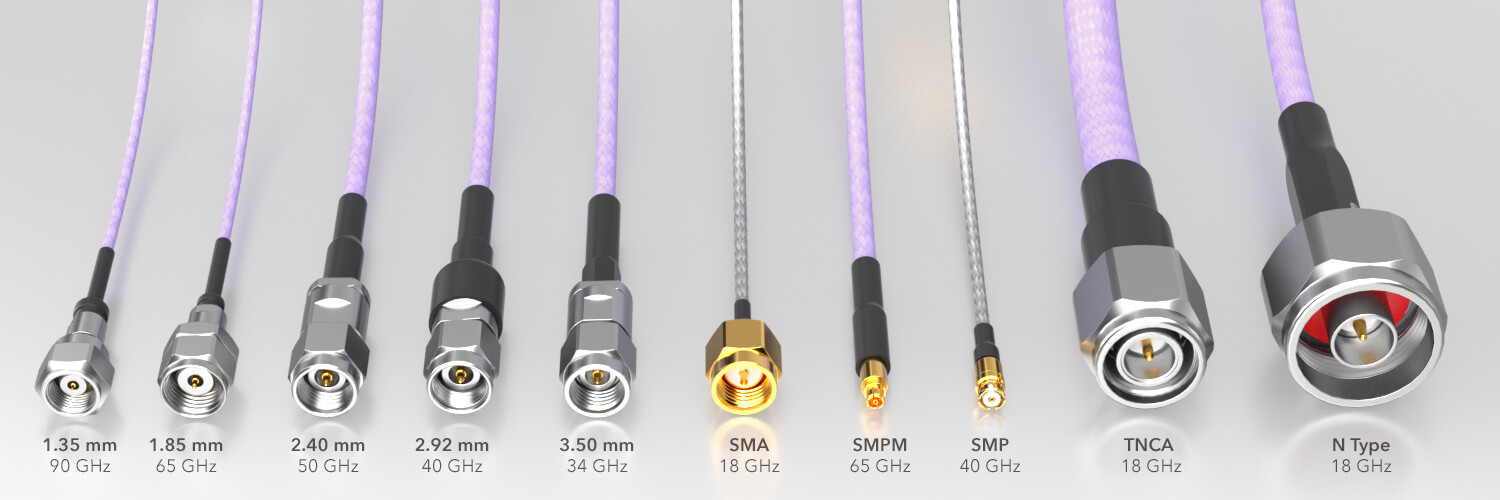

Precision RF Cable Assemblies
Samtec offers a wide range of cable assemblies including low loss microwave / millimeter wave using cable types from .047 to .277, high-density ganged, test and Samtec-optimized varieties. Our fully vertically integrated business model allows us to offer extreme flexibility, with the ability to mix-and-match cable connectors on a variety of RF cable types. Interface types include 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, 3.50 mm, SMA, SMPM, SMP, TNCA and N Type.

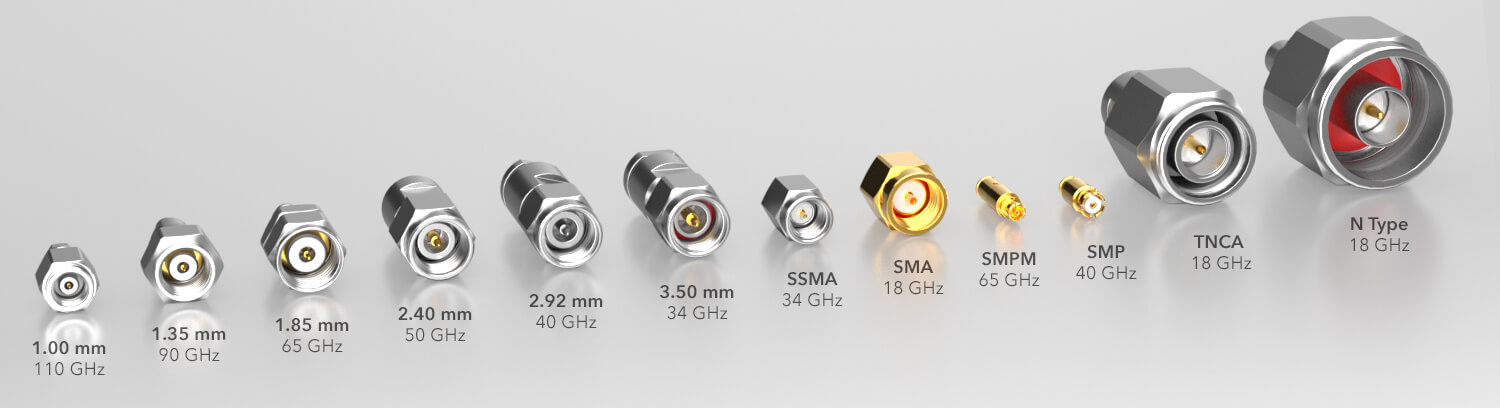

Precision RF Cable Connectors
Samtec offers cable connectors available for a wide variety of industry standard cables. High-frequency cable connectors are manufactured with a precise tolerance interface to ensure superior repeatability and high mechanical stability. Interface types include 1.00 mm, 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, 3.50 mm, SSMA, SMA, SMPM, SMP, TNCA and N Type.

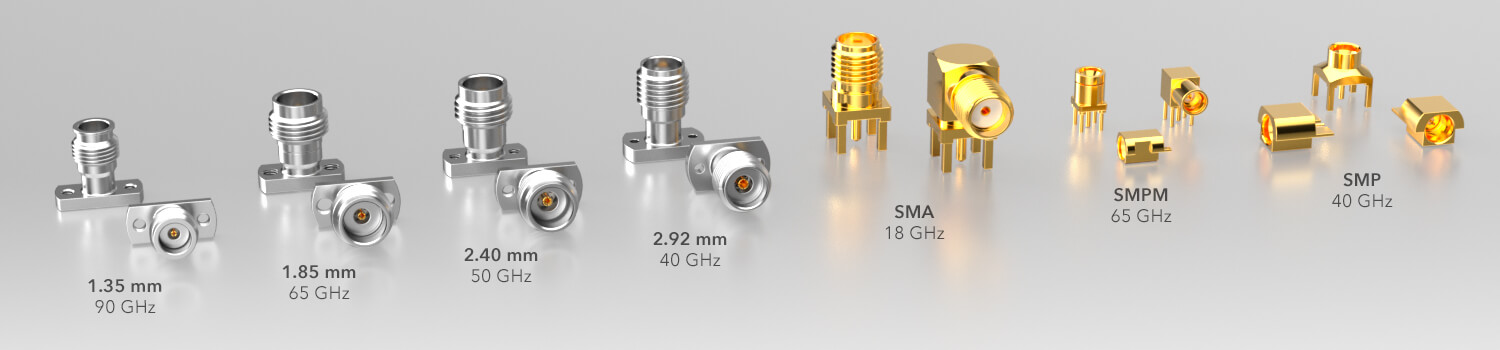

Precision RF Board Connectors
Board connectors are available for cable-to-board or board-to-board, ganged and blind-mate applications. Interface types include 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, SMA, SMPM and SMP. Vertical, right-angle or edge mount orientations are available.
Products By Type
